Profender Pre-Assembled MG Height Adjustable Front Lift to suit Ford Ranger PX3 2018-2022

Name: Profender Pre-Assembled MG Height Adjustable Front Lift to suit Ford Ranger PX3 2018-2022
Brand: Trundles Automotive
SKU: PX3-510MG
Price: 1250.0 NZD
Availability: InStock

PX3-510MG

In stock

Select your lift amount: 45mm Lift 75mm Lift

Select your load rating: No Load 0-30Kg (Comfort Option) 40-70Kg 80-100Kg 0-50Kg

$1,250.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
COMPONENTS
IMPORTANT!

DETAILS

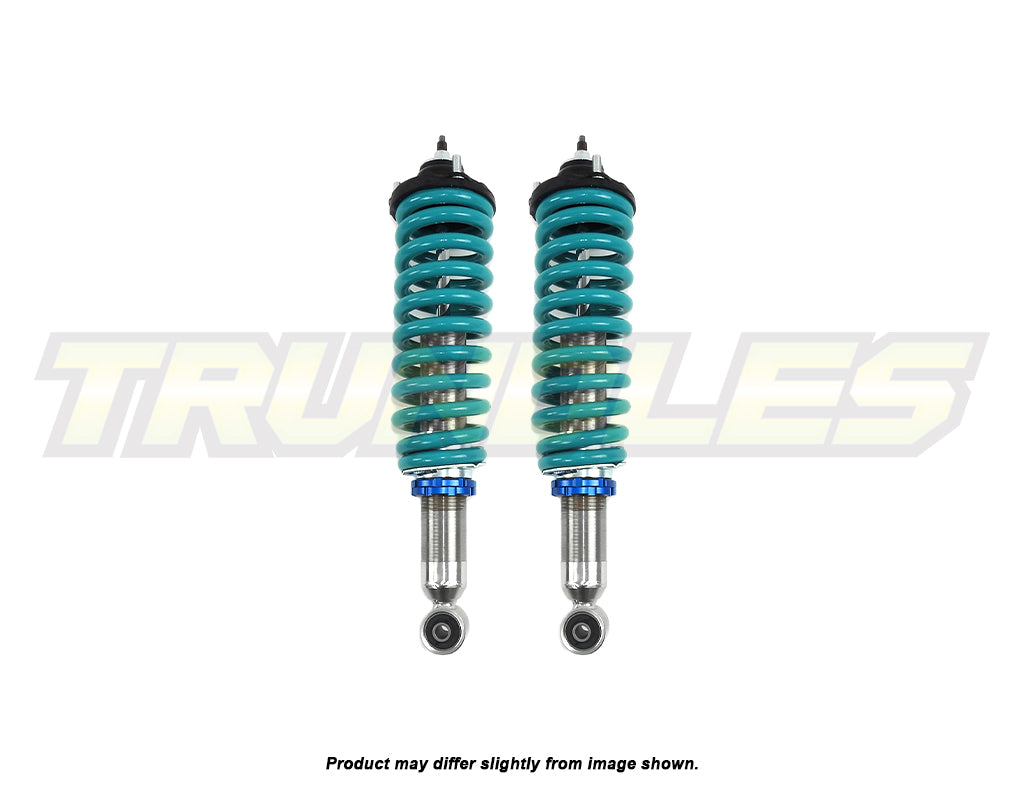

Profender Pre-Assembled MG Height Adjustable Front Lift to suit Ford Ranger PX3 2018-2022

Note:
- Not Suitable for PX1/PX2 Rangers.
- You must fit Sway Bar Links when lifting these vehicles which can be found here.

Looking for a quick and easy lift for your Ranger? We have the answer!

Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.

Please use the drop down menu to select your lift amount and the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX3
Year: Mid 06/2018 - 06/2022
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 10mm - 75mm Lift
Detail:
- 4x4 Strut Mounted Front Bump Stop Models Only
- Push Button Start Models Only
- Also Suits 4x2 High-Rider
- Monotube Remote Reservoir Shock Absorbers
- These front struts are pre-assembled in our workshop and ready to go.

COMPONENTS

1x Profender MG Front Shock Absorbers - MG-1611A50
1x Pair Dobinsons Springs
2x Trundles Strut Top Mounts - TOP8

IMPORTANT!

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.
