Novawinch Pro+ 12500LB Electric Winch

Novawinch Pro+ 12500LB Electric Winch

PROPLUS12500S-12-FD

Pre-Order / Made To Order
Select your winch voltage:
Select your winch mount configuration:
$1,403.00
$1,403.00 $0.00
Tax included.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
DETAILS

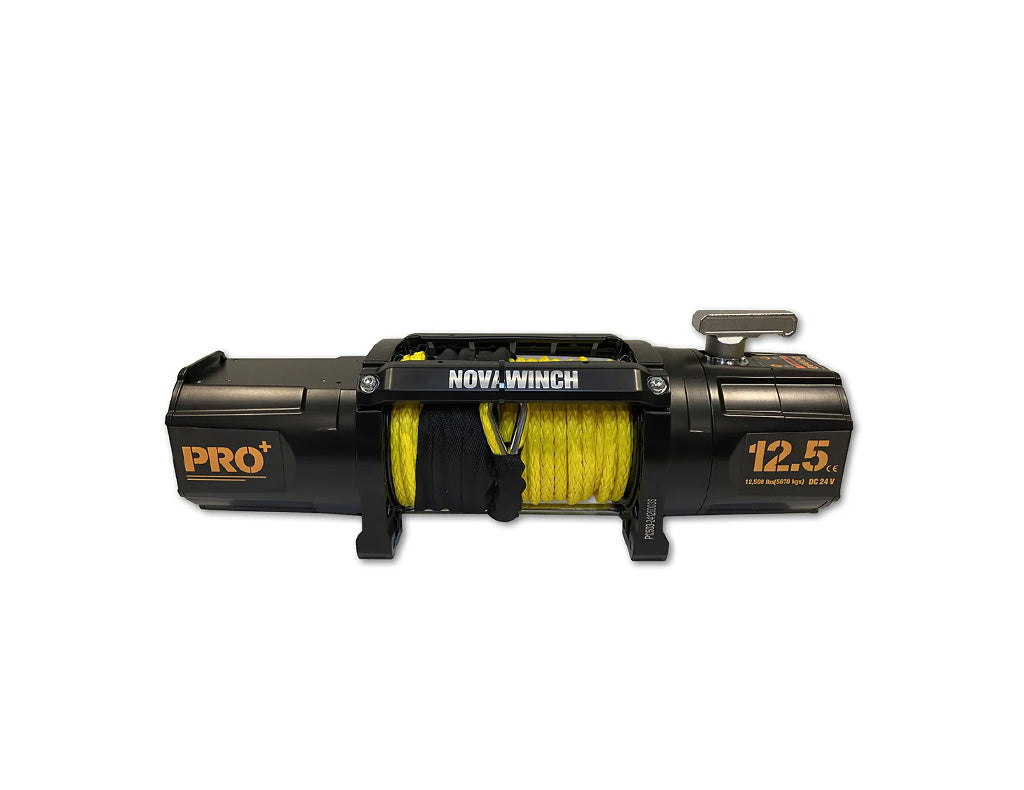

Novawinch Pro+ 12500LB Electric Winch

Note: Please use the Drop-Down menu to select from 12V & 24V options and also High Mount & Low Mount Options

The Novawinch Pro Plus 12500 is a premium 12V/24V electric winch built for serious 4WD applications. Delivering 12,500lb of pulling power and a rapid 15 m/min line speed, it features a double-lock brake system, low-resistance free spool, and a reinforced welded drum. Proven performance, rugged reliability, and unbeatable value—backed by an industry-leading warranty from a globally trusted manufacturer.

FOOT DOWN MODEL

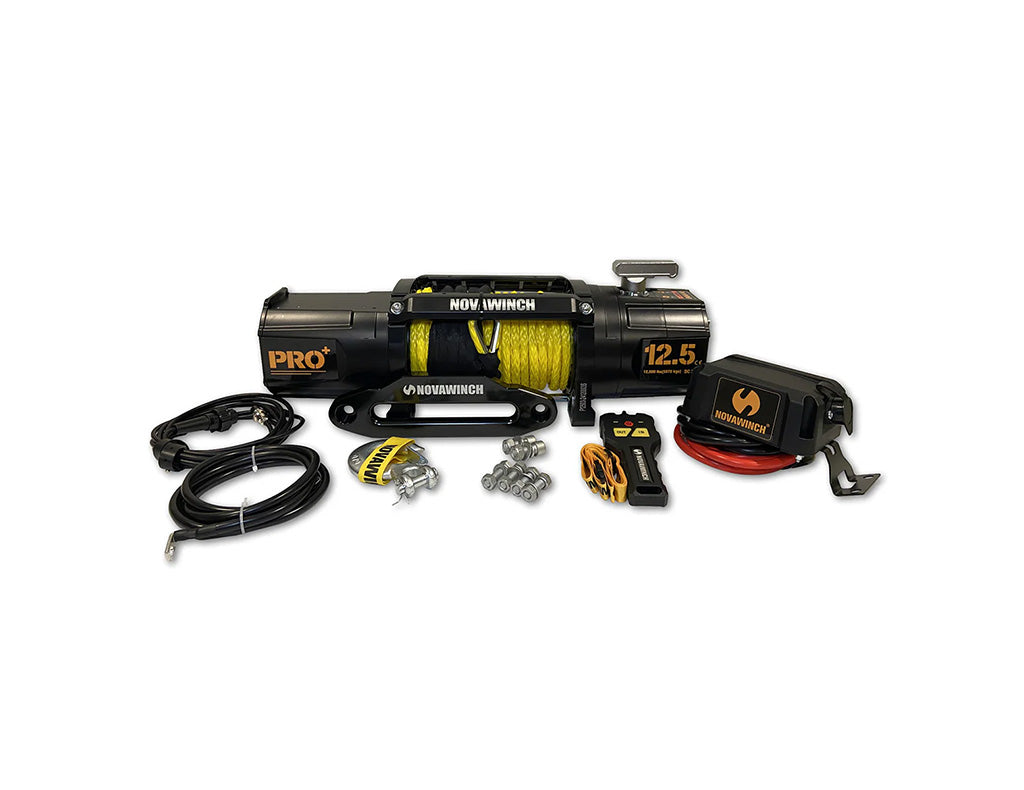

Includes:
- 24v or 12v foot down winch
- Fairlead
- Synthetic rope
- Winch hook

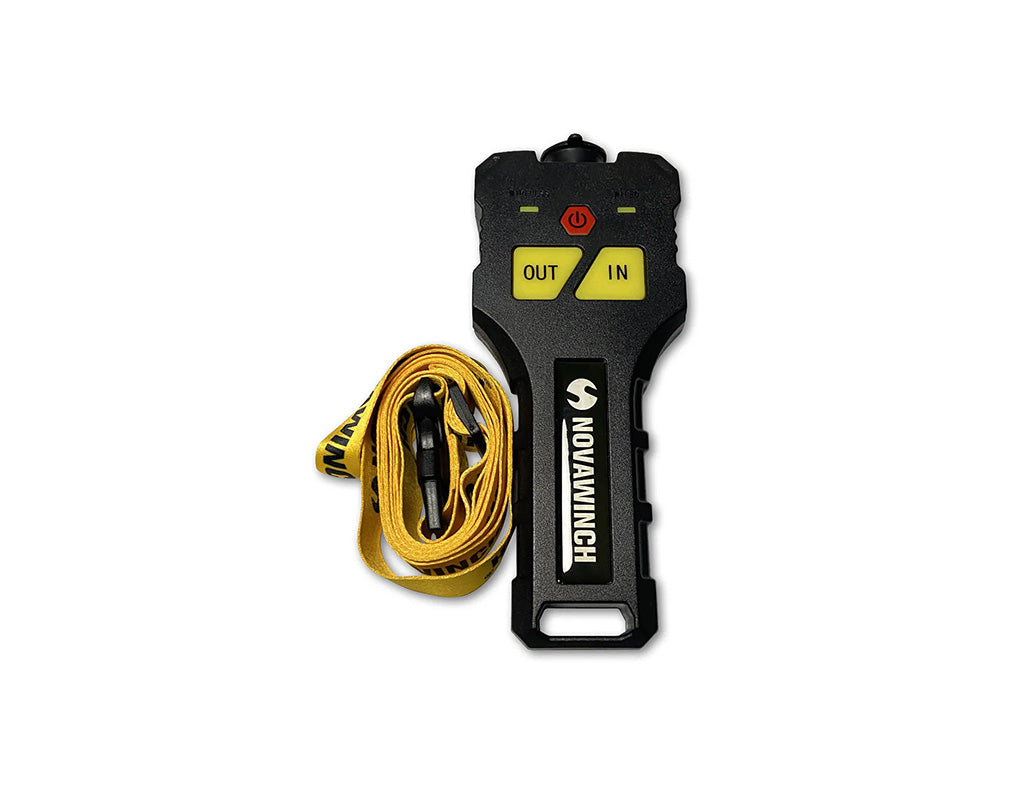

- Waterproof rubber remote, 3.9m cord

Details:
- High-capacity drum – 26m x 9.5mm synthetic rope
- Limited lifetime warranty (3 years electrical)
- Larger drum housings for easy cable management

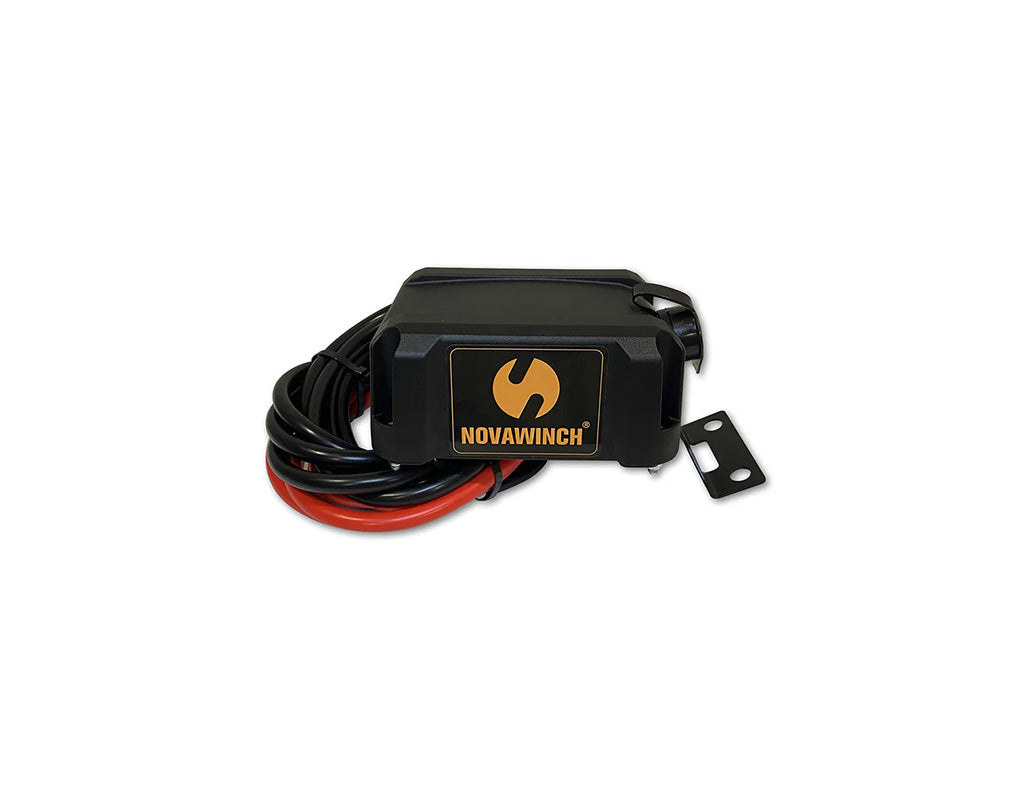

- Separate solenoid enclosure for easy mounting
- Built-in wireless remote option for easy operation
- IP68 rated water protection

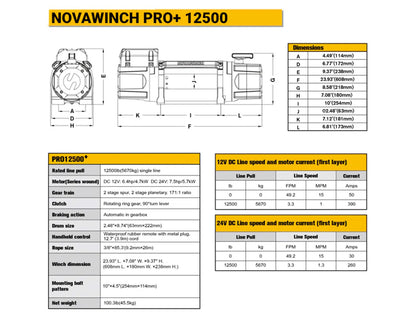

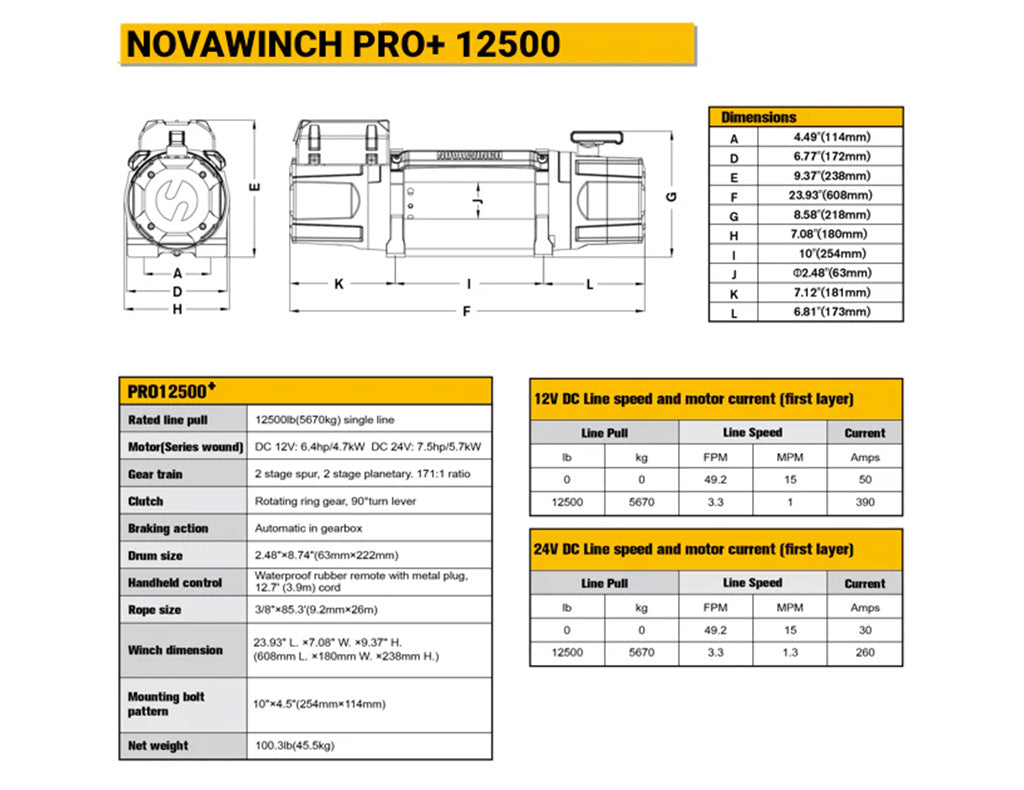

Tech Specs:
- Rated line pull: 12500lbs (5670kg) single line
- Motor (Series wound): DC 12V:6.4hp/4.7kW / DC 24V:7.5hp/5.7kW
- Gear train: 2 stage spur, 2 stage planetary, 171:1 ratio
- Clutch: Rotating ring gear, 90 degree turn lever
- Braking action: Automatic in gearbox

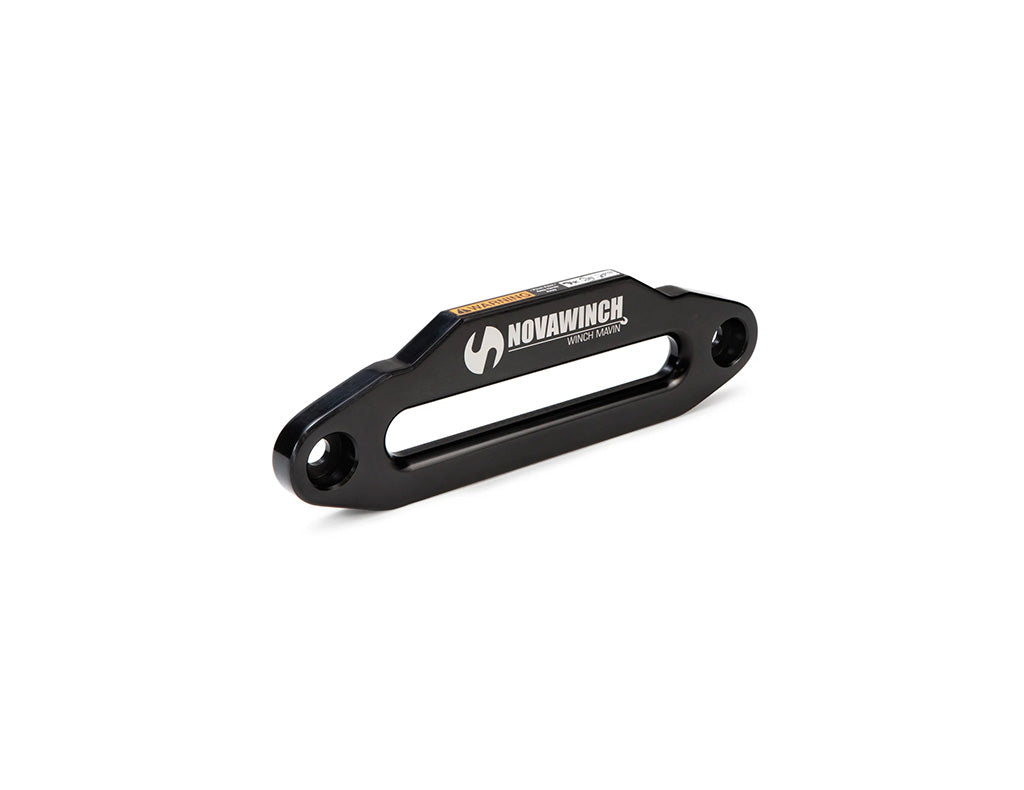

- Fairlead: 4-way roller fairlead/Aluminium hawse
- Drum size: 63mm×222mm
- Dimensions: 608mm L x 180mm W x 238mm H
- Bolt pattern: 254mm x 114mm
- Net Weight: 45.5kg
- Solenoid enclosure to motor wires approx 500mm length

FOOT FORWARD MODEL

Includes:
- 24v or 12v foot forward winch
- Fairlead
- Synthetic rope
- Winch hook
- Waterproof rubber remote, 3.9m cord

Details:
- High-capacity drum – 26m x 9.5mm synthetic rope
- Limited lifetime warranty (3 years electrical)
- Larger drum housings for easy cable management
- Separate solenoid enclosure for easy mounting
- Built-in wireless remote option for easy operation
- IP68 rated water protection

Tech Specs:
- Rated line pull: 12500lbs (5670kg) single line
- Motor (Series wound): DC 12V:6.4hp/4.7kW / DC 24V:7.5hp/5.7kW
- Gear train: 2 stage spur, 2 stage planetary, 171:1 ratio
- Clutch: Rotating ring gear, 90 degree turn lever
- Braking action: Automatic in gearbox
- Fairlead: 4-way roller fairlead/Aluminium hawse
- Drum size: 63mm×222mm
- Dimensions: 608mm L x 180mm W x 238mm H
- Bolt pattern: 254mm x 114mm
- Net Weight: 45.5kg
- Solenoid enclosure to motor wires approx 500mm length
