Please note: This is a high-output 50A charger. For safe and efficient operation, you MUST use the recommended cable size (minimum 13mm² / 6 B&S for runs up to 12m) to prevent voltage drop and excessive heat. High-capacity fuses (minimum 60A-80A) must be installed as close to the starter and auxiliary batteries as possible. While the IDC50X is designed for engine bay mounting, it should be placed away from direct heat sources like turbos or exhaust manifolds to maintain maximum charging efficiency in hot climates.

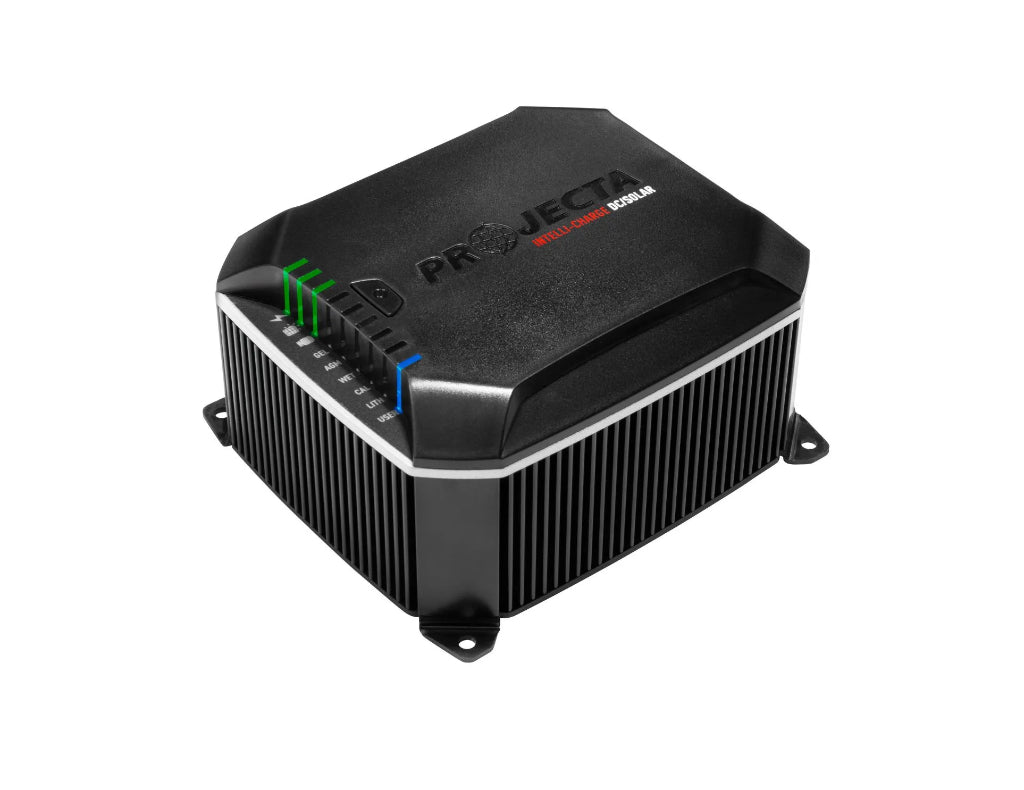

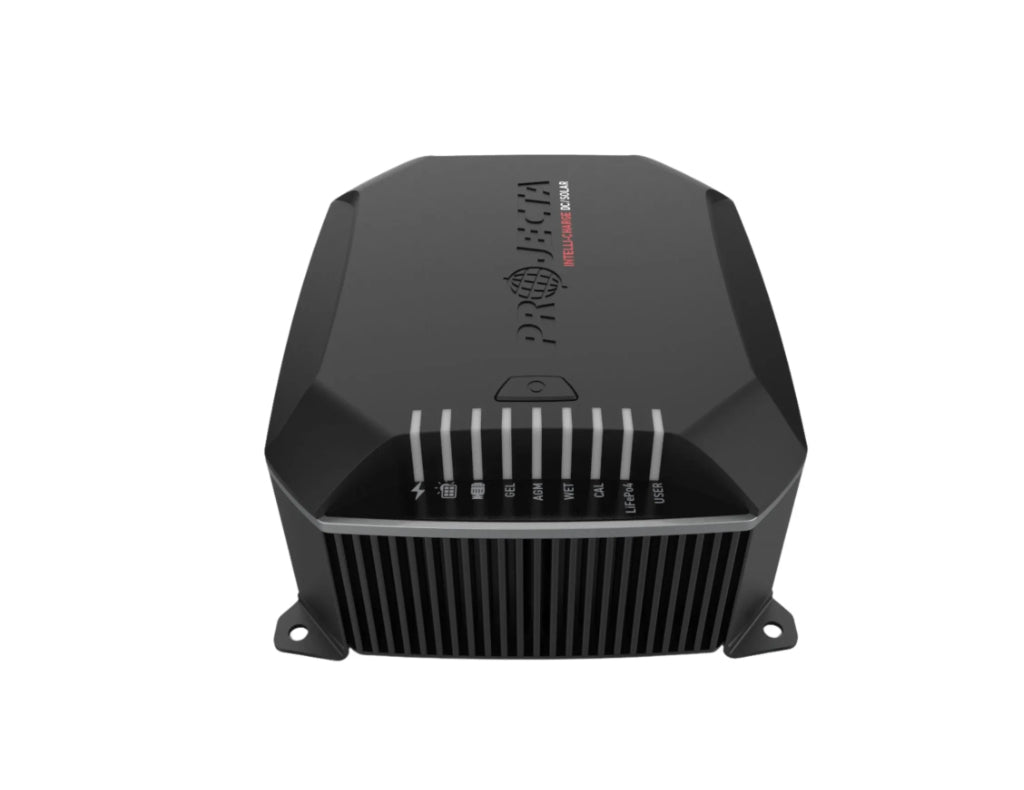

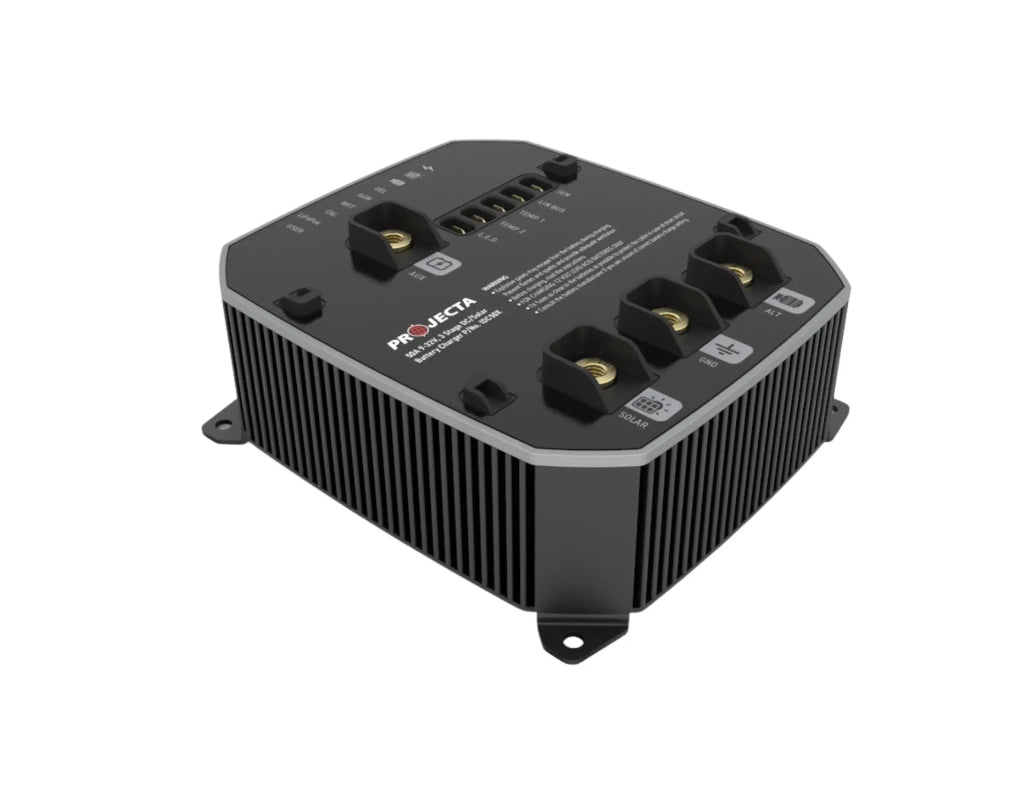

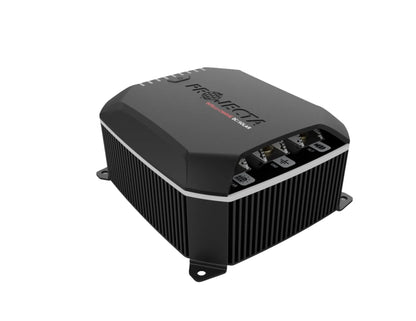

Genuine Projecta IDC50X Intelli-Charge 50A DC-DC Battery Charger. Take control of your off-grid power with the next generation in dual-battery management. The IDC50X is a powerful 5-stage charger designed to meet the heavy demands of modern 4WD touring, capable of charging GEL, AGM, WET, Calcium, and Lithium (LiFePO4) batteries with precision. Its advanced dual-input technology manages solar and alternator power simultaneously, prioritizing solar to reduce the load on your vehicle's electrical system. Built to survive the toughest Australian conditions, the electronics are fully potted in thermal epoxy resin, providing unmatched resistance to vibration, shock, and moisture. With the addition of a "Lithium Wake-up" mode, it can even restart a battery whose BMS has shut down due to deep discharge. Whether you're running a massive lithium bank in a caravan or a dual-battery setup in a Hilux, the IDC50X provides the fastest, most reliable charge available today.
Includes:
1x Projecta IDC50X 50A DC-DC Charger
1x Integrated Mounting Bracket
1x Set of Brass Mounting Hardware & Spade Terminals
Details:
- Simultaneous Dual Input: Charges from Solar and Alternator at the same time
- Extreme Protection: IP68 & IP69K rated (Waterproof, Dustproof, Pressure-wash safe)
- Multi-Chemistry Support: Tailored profiles for AGM, GEL, WET, Calcium, and Lithium
- Smart Alternator Compatible: Works with modern ECU-controlled charging systems
Technical Specifications:
- Part Number: IDC50X
- Output Current: 50A Max
- Alternator Input: 9-32V DC
- Solar Input: 32V Max (Built-in MPPT Regulator)
- Operating Temp: -10°C to +90°C
- Dimensions: 138mm x 122mm x 71mm
