Profender 40mm Lift Kit with Adjustable Damping to suit Suzuki Jimny 2018-Onwards

Name: Profender 40mm Lift Kit with Adjustable Damping to suit Suzuki Jimny 2018-Onwards
Brand: KITHEADER
SKU: JIMNY2D-40-PAG-3
Price: 1900.0 NZD
Availability: InStock

JIMNY2D-40-PAG-3

Select your front springs:

No Load 40-70Kg

Select your rear springs:

0-60Kg Constant Load 100-200Kg Constant Load

Low stock

$1,900.00

$1,900.00 ~~$0.00~~

Tax included. Shipping calculated at checkout.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift or bull bar install, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

DETAILS
COMPONENTS
Included Spring Seat Spacers

DETAILS

Profender 40mm Lift Kit with Adjustable Damping to suit Suzuki Jimny 2018-Onwards

These shocks have 4-Stage Adjustable Damping and are fixed height only.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Jimny
Model: JB64W / JB74W / GJ
Year: 2018 -
Suspension Type: Coil Spring Front / Coil Spring Rear
Front Lift: 40mm Lift
Rear Lift: 40mm Lift
Detail:
- Twin Tube Adjustable Damping Shock Absorbers

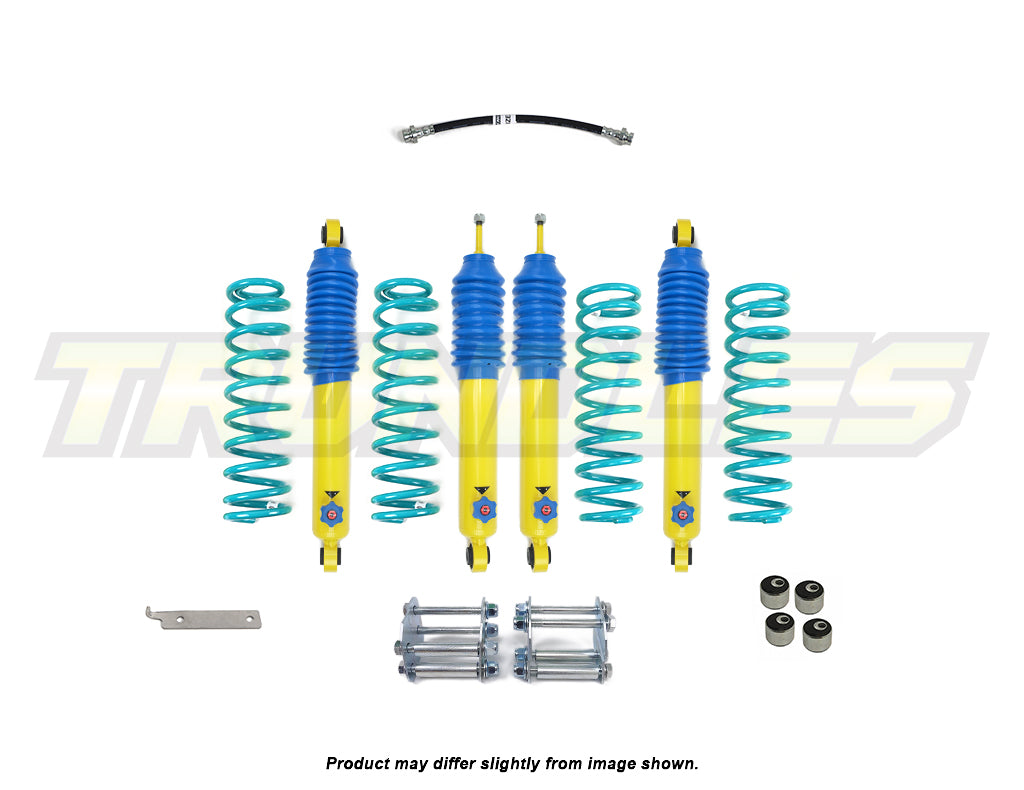

COMPONENTS

Front:
2x Profender 4-Stage Damping Front Shocks - PAG-2603P
1x Pair Dobinsons Front Springs
4x Spring Seat Spacers - see below "Included Spring Seat Spacers" section for more details
2x Removable Spring Seats
1x Extended Headlight Adjuster Bracket - JB74-HLABR
4x Castor Correction Bushes - WA57-511K
1x Dobinsons Crossmember Drop Kit - WA57-580

Rear:
2x Profender 4-Stage Damping Rear Shocks - PAG-2003P
1x Pair Dobinsons Rear Springs
4x Castor Correction Bushes - WA57-511K
1x Extended Rear Left Brake Hose - EBH-JIM-R-R

Included Spring Seat Spacers

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
