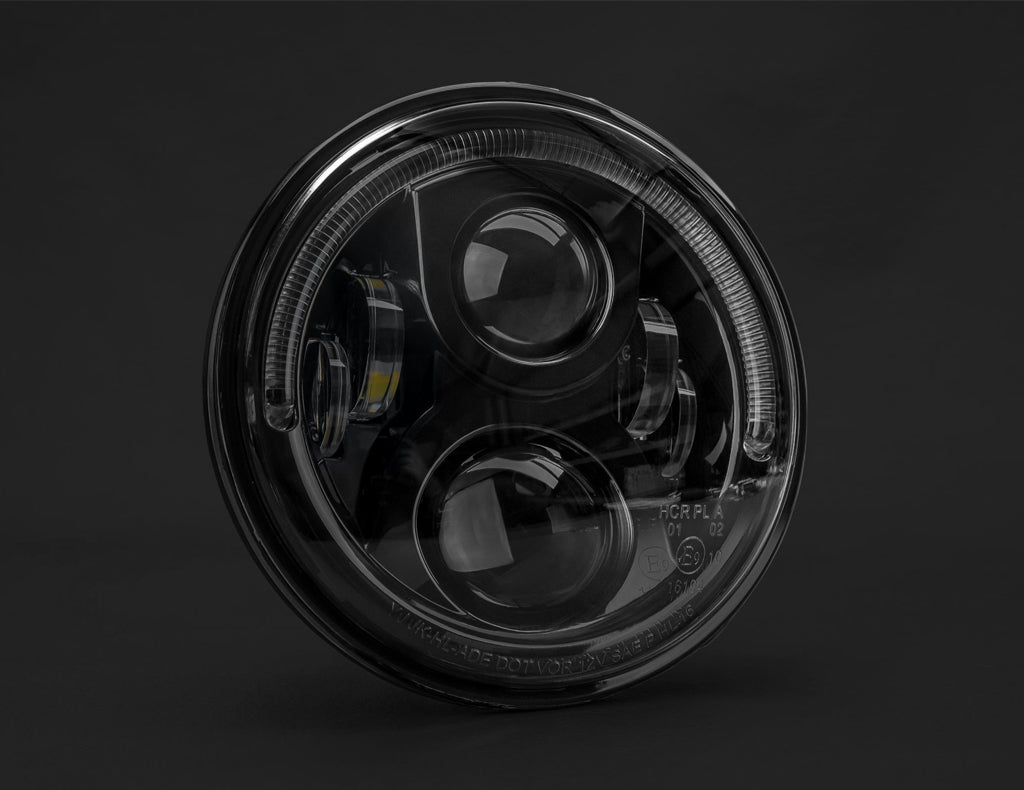

STEDI 7" Halo Carbon Black LED Headlight (Single)

LEDMOTO-CARBON-7BLK

Pre-Order
$265.00
$265.00 $0.00
Tax included. Shipping calculated at checkout.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

DETAILS

STEDI 7" Halo Carbon Black LED Headlight (Single)

Includes:
1 x 7" STEDI Halo Carbon Black LED Headlight

Details:
- Our Carbon 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light, the Carbon 7" is the perfect replacement for your existing headlight.
- ADR Approved E-Mark CE
- Proper Right Hand Drive Beam Geometry
- H4 Adaptor
- High Beam 1 Lux @ 235m
- Low Beam 1 Lux @ 141m
- Anodized Polyester Powdercoat
- Lexan Polycarbonate (PC) Lens refractor
- Die-cast aluminium alloy (ADC12) Heat-Sink
- IP67 | Ingress Protection
- Shock Proof, Waterproof and UV Shielded
- Protected against Reverse Polarity and Voltage / Current surges
- Warranty | 2 Years

Tech Specs:
LED: High Beam: 2x 10w XML-2 LED, Low Beam: 2x 15W LED, Park Light: 2x 1.5w Osram

Raw Lumens: High Beam: 1800Lm, Low Beam: 1250Lm, Park Light: 150Lm

Amp Draw: High Beam: 2.4A @ 13.6v, Low Beam: 1.6A @ 13.6v, Park Light: 0.2A @ 13.6v

Lifespan: 50,000 Hours
Ingress Protection: IP67
Operating Temperature: -30°C to 60°C
Lens Material: LEXAN Polycarbonate
Colour Temp: 5700K
Voltage Compatibility: 12v & 24v

Peak Beam Distance @ 1 Lux:
High Beam: 235m, Low Beam: 141m, Park Light: 8m

Weight (each): 1.140Kg
Drop In Replacement for: #6014, 6015, 6016, H6024 and Par 56 headlamp designs
ADR Compliance: ADR 46/00, ADR 49/00

Compatible Models:
1955-1983 Jeep CJ-5
1976-1986 Jeep CJ-7
1981-1985 Jeep CJ-8
1997-2006 Jeep Wrangler (TJ)
2007-2015 Jeep Wrangler 2-Door (JK)
2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
1982 - 1991 Mitsubishi Pajero (L040)
Land Rover Defender
70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
GQ Patrol
Harley Davidson Motorcycles
Mercedes Benz G Wagon
Kenworth Trucks with 7 inch round headlight

Make Model Years
JEEP Wrangler JK 2007–2018
JEEP Wrangler TJ 1996–2007
LAND ROVER Defender 110 & 130 Series (Facelift) 2007–Onwards
LAND ROVER Defender 110 & 130 Series 1992–2001
LAND ROVER Defender 110 Series 1984–1992
LAND ROVER Defender 90 Series 1984–1990
MITSUBISHI Pajero 1st Gen (Coil Rear) (NA-NF) 1983–1992
NISSAN Patrol / Safari Y60 GQ Ute (COIL / COIL) 1992–1999
NISSAN Patrol / Safari Y60 GQ Ute (LEAF / LEAF) 1988–1999
NISSAN Patrol / Safari Y60 GQ (LWB) 1987–1998
NISSAN Patrol / Safari Y60 GQ (SWB) 1987–1998
TOYOTA Landcruiser 70 Series (GRJ71 / HZJ71) 2009–Onwards
TOYOTA Landcruiser 70 Series (FZJ / HZJ 71/4/6) 1999–2004
TOYOTA Landcruiser 70 Series (FZJ / HZJ / PZJ77) 1993–1999
TOYOTA Landcruiser 70 Series (HZJ / PZJ 70/73) 1990–1999
TOYOTA Landcruiser 70 Series (LJ 70/2/3/7) 1990–1993
TOYOTA Landcruiser 60 Series (FJ / HJ 60/61) 1980–1990
TOYOTA Landcruiser 70 Series (FJ / BJ 70/1/3/4) 1985–1989
TOYOTA Landcruiser 70 Series Bundera (LJ / RJ 70/73) 1984–1989
