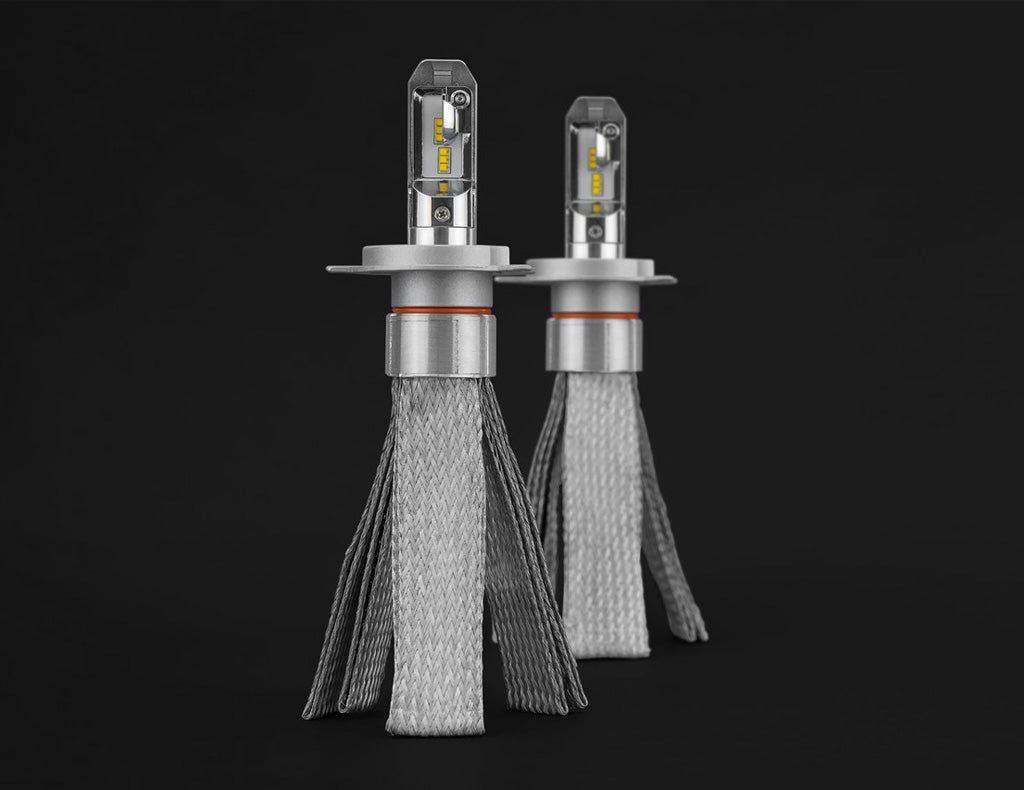

STEDI H4 Copper Head LED Headlight Upgrade Conversion Kit
Note: Due to the difference in Road ruling between Australia and New Zealand these are designed for off-road use only and are not compliant on NZ roads.
Includes:
2x H4 STEDI Copper Head Headlight LED Conversion Headlights
2x Driver Modules
3M™ Double Sided Tape
Zip Ties
User Instruction Manual
TECH SPECS
| HOUSING MATERIAL |
6063 Aviation Aluminium |
| LED CHIP TYPE |
6 x Philip™ ZES (Each Lamp) |
| POWER |
1.6A each @ 13.6v |
| ACTUAL LUMENS |
3,520Lm (pair) |
| COMPATIBLE VOLTAGE |
DC 12v and 24v |
| LUMEN MAINTENANCE LM-80 |
50,000 hours |
| LIFE EXPECTANCY |
5,000 hours (9 x longer than halogen) |
MORE INFORMATION
MATERIAL & THERMAL MANAGEMENT - Staying cool is the end-all and be-all in the world of LED. Well executed thermal management means higher drive current leading to higher light volume.
Six 100% Pure Copper(Cu) belts allow maximum thermal conductivity. The thermoelectrically separated copper substrates allow heat to transfer to the substrate efficiently and quickly.
American made Down Corning® thermal paste to increase conductivity to 6063 aluminium tower.
No fan means modern vehicles which have rigid dust covers or fully enclosed headlights bulbs can upgrade to LED without modifying the dust cap or worse leaving them off altogether.
Smaller driver footprint for tight applications.
Near identical footprint to stand halogen bulb ensure 100 compatibilities.
KEY LIGHTING BENEFITS
Top Bin Philips© Lumileds Luxeon ZES® LED | We’ve independently verified the authenticity of the Philips© Lumileds used. The undomed nature of the ZES® provides better optical control with minimal scatter.
CCT 5700K means colours sync with our auxiliary LED driving lights.
OEM matching light distribution through the exact positioning of the LED emitters to optimize the vehicle's reflector design as the OEM intended.
Instant Full Beam without any warm-up time.
TECHNOLOGY
CANBUS Friendly - resistive Canbus cancellation built-in
Unlike other platforms on the market, our Copper Heads LED Kit will not discolour or tarnish your vehicle's headlamp reflector or lenses.
Electrically Protected against RFI and EMI Interference
Over and Under Voltage Protection
Waterproof connectors
Plug and Play H4 Connector | No cutting or professional installation required, as easy as changing the OEM bulb
Ingress Protection IP65 | means our kits will not fail at the first sign of water.
True White 5700Kelvin
