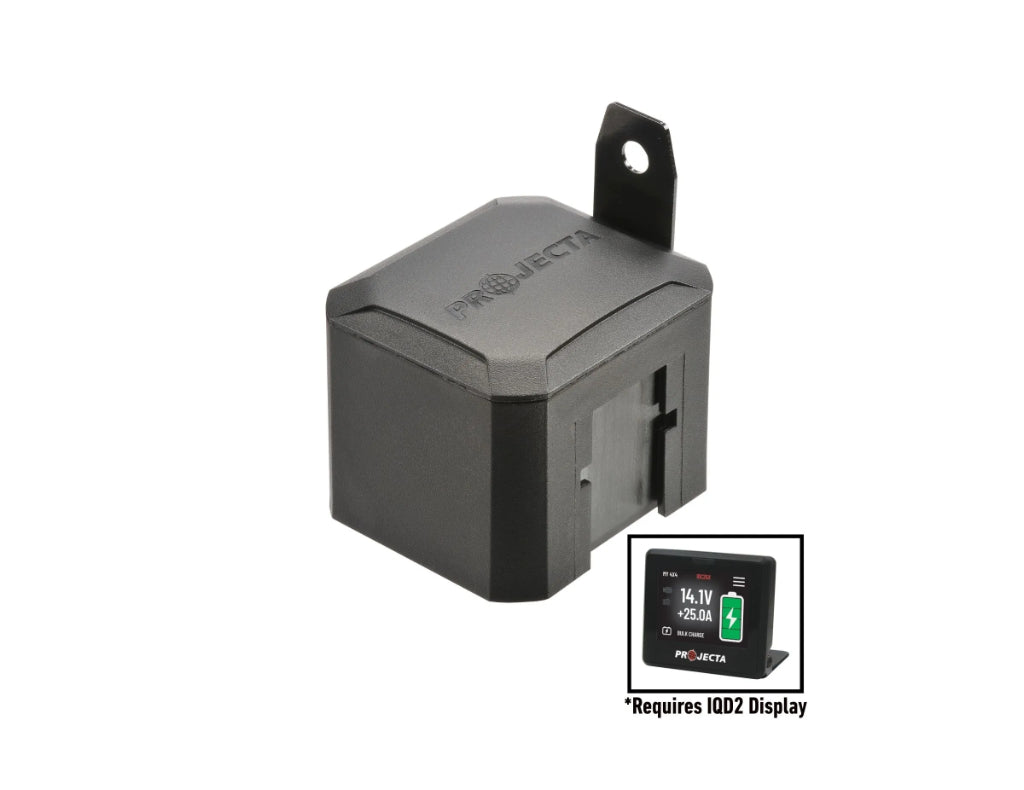

Projecta 12v 40A Smart Relay
Genuine Projecta IQR040 Intelli-IQ Single Channel Smart Relay. Revolutionary power management is now available for your 4WD, caravan, or boat. The IQR040 is a fully programmable smart switch that replaces traditional relays and manual circuit breakers. It can be configured to perform multiple roles, including a Voltage Sensitive Relay (VSR), Low Voltage Disconnect (LVD), or even a specialized Driving Light Relay with positive or negative switching. With the Intelli-IQ app, you can set complex daily schedules, delay timers, or trigger the relay from external signals like high beam or reverse lights. The fully potted design is virtually indestructible, offering IP68 and IP69K protection against water, dust, and vibration. Whether you need to protect your battery from being drained by a fridge or want automated lighting patterns, the IQR040 provides total digital control of your electrical accessories.
Includes:
1x Projecta IQR040 Single Channel Smart Relay
1x Detailed Installation & Programming Manual
Details:
- Multi-functionality: Timer, VSR, LVD, Flasher, and Circuit Breaker modes
- High-capacity switching: 40A at 12V / 15A at 24V
- Extreme Durability: Fully potted, IP68 & IP69K waterproof rating
- Smart Monitoring: Real-time current and voltage reporting via LIN bus
Technical Specifications:
- Part Number: IQR040
- Input Voltage Range: 9-32V DC
- Max Output: 40A @ 12V / 15A @ 24V
- Standby Current: <10mA
- Communication: LIN Bus 2.1
- Operating Temp: -10°C to +85°C
