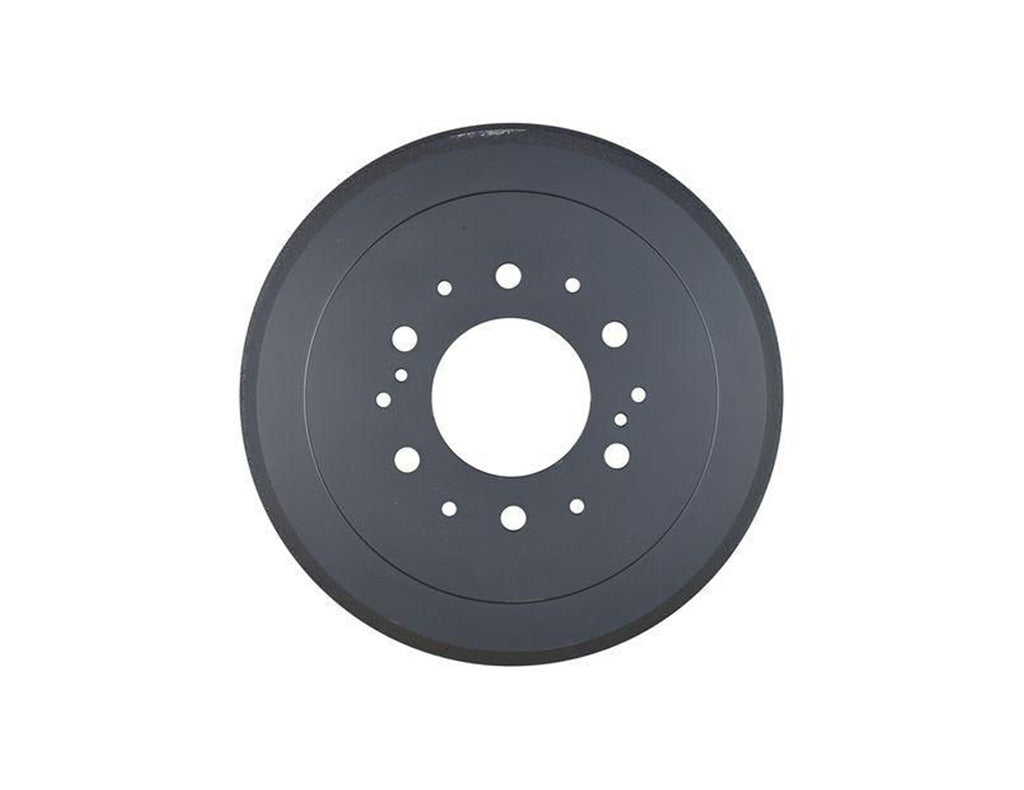

RDA Rear Brake Drum to suit Toyota Hilux LN106 (Sold Individually) - 295mm with 91mm Centre Holes
Please note: This brake drum features a 91mm centre locator hole. Toyota utilised two separate hub sizes on 1988–1997 4WD Hilux models; if your rear axle hub assembly requires a larger 106mm opening, this drum will not fit, and you must order part number RDA1744 instead. Brake drums are highly critical safety items and must always be replaced as a matched axle pair (Left and Right) to avoid dangerous brake imbalance, pulling, or uneven shuddering. New brake shoes should always be fitted alongside fresh drums to guarantee proper bedding-in and full stopping efficiency.
Genuine RDA Standard Replacement Rear Brake Drum. Restore factory-smooth, dependable braking response to your classic 4WD utility with this premium cast-iron replacement drum. Engineered by Rotors & Drums Australia, the RDA1743 is precision-machined to exact original equipment dimensions, offering an internal shoe contact area of 295mm and a total drum depth height of 83mm. Manufactured from high-tensile, heat-stabilised cast iron, this drum delivers excellent thermal dissipation and structural integrity under heavy braking cycles—crucial for laden work vehicles and off-road touring setups. Designed for a direct bolt-on installation over the factory 6-stud axle assembly, it provides a completely clean, true friction face to eliminate rear-end brake shudder and pedal pulse. Choosing genuine RDA components guarantees long-lasting durability and peace of mind, backed by an established name in the Australasian automotive aftermarket.
Includes:
1x RDA Standard Replacement Rear Brake Drum (RDA1743)
Details:
- Direct-fit replacement matching original factory braking specifications
- Stamped with a strict 297mm maximum wear limit safe skimming threshold
- Manufactured from high-grade cast iron for consistent thermal stability
- Features a precision-ground 66mm wide friction path for maximum shoe contact
Technical Specifications:
- Part Number: RDA1743
- Internal Drum Diameter: 295.0mm
- Centre Hole Bore (Hub Pilot): 91.0mm
- Total External Height: 83.0mm
- Internal Friction Face Width: 66.0mm
- Wheel Stud Count: 6-Hole Configuration
- Maximum Safe Machine Limit: 297.0mm
