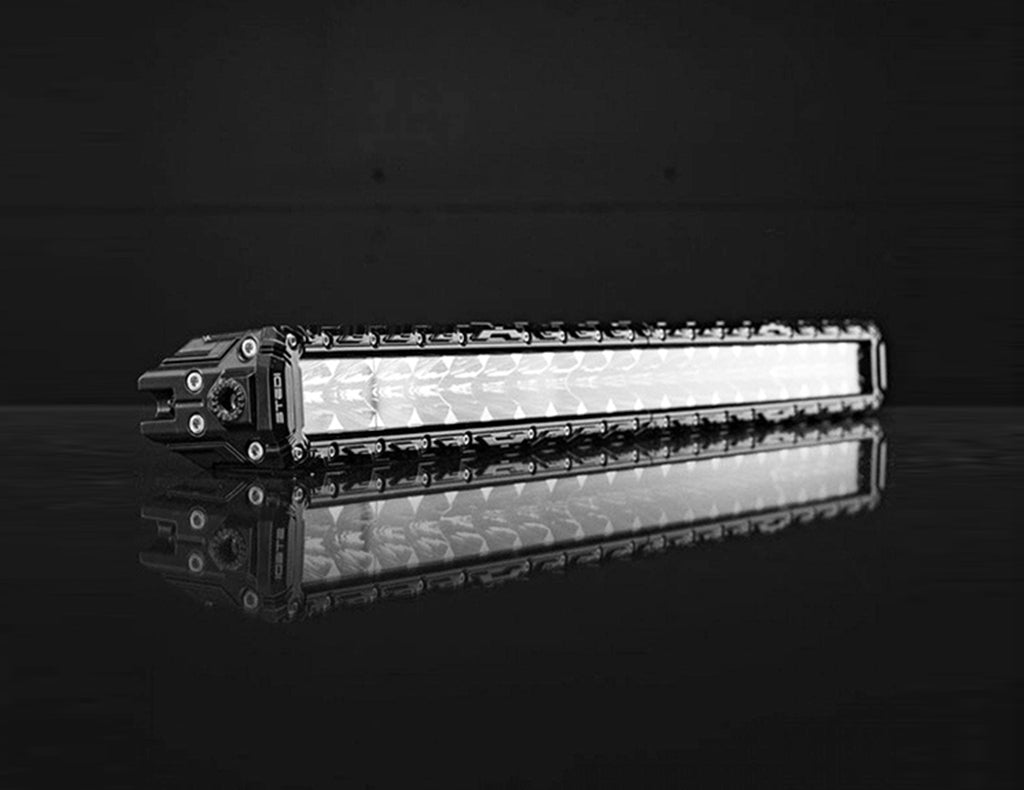

STEDI 21.5" 20 LED Slim Light Bar

STEDI 21.5" 20 LED Slim Light Bar

Includes:
- ST3K 21.5inch LED Light Bar
- Stainless Fasteners
- Stainless Steel Side Mounting Brackets
- 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
- H4 and HB3 adapters included
- Wiring Instructions

- ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

- 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m

- True White 5700K Colour temperature offers stunning clarity and definition.

- Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

- Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

- Pressure Equalization vent | Protects against water ingress, dust & contaminants.

- IP68 | Dust & Particle tight + Water-proof up to 3 meters!

- Environmentally sealed Deutsch DT-2 connector.

- Protected against EMC and RFI.

- Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

- Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems

- Backed by a 5 Year Replacement Warranty.

Tech Specs:
LED: 20 x Osram Oslon White
Effective Lumen: 4,100Lm
Peak Intensity: 243,200cd
Operating Voltage: 10-30V DC
IP Rating: IP68
Current Draw: 4.3A @ 13.5v
Colour Tempterature (CCT): 5700 Kelvin
Housing Material: Aluminium Extrusion & Cast
Lens: GE™ Lexan
Mounting Bracket: Powder Coated 3mm Stainless Steel
Bolts and Fittings: 3 Series Stainless Steel
Beam Type: Flood Spot Combo
Lifespan: 50,000 Hours
Weight: 1.855
Operating Environment: -40° to +50° Celsius

Photometric Data:
10m: 2, 430 Lx
50m: 97 Lx
100m: 24 Lx
200m: 6 Lx
493m: 1 Lx
