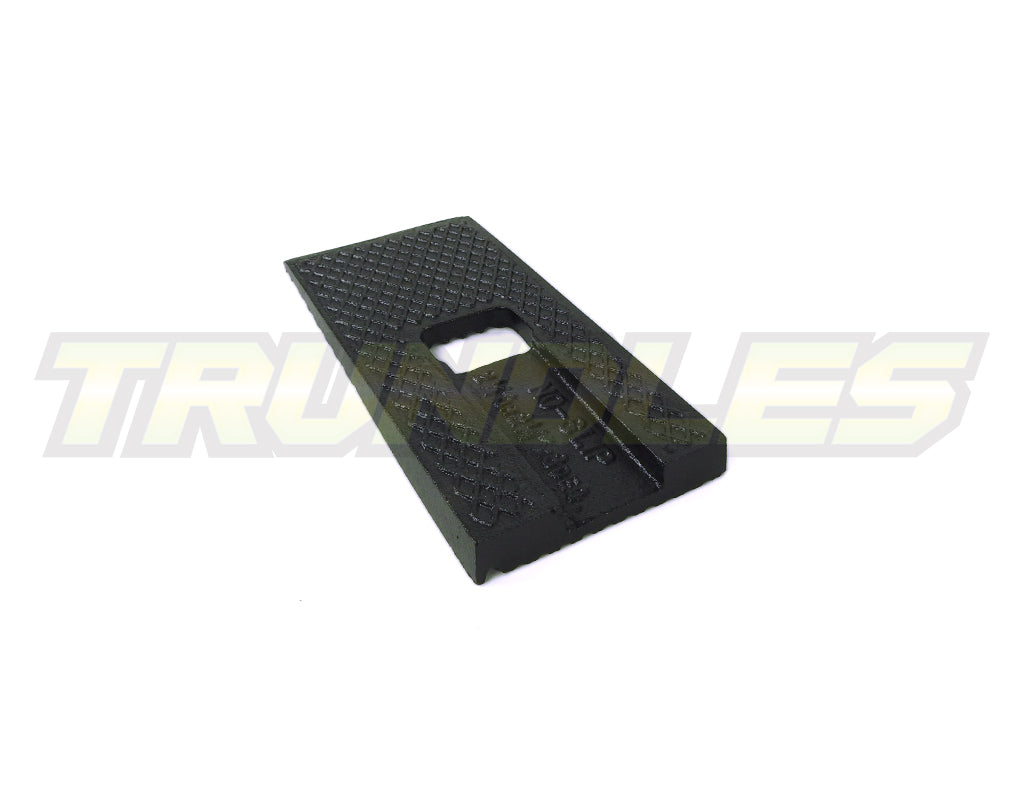

Trundles Leaf Spring Castor Wedge

Trundles Leaf Spring Castor Wedge

UNI-WEDGE001

Pre-Order / Made To Order
Select your wedge size:
$25.00
$25.00
Tax included.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
DETAILS

Trundles Leaf Spring Castor Wedge - Multiple Sizes Available

Includes:
1x Castor Wedge (SOLD INDIVIDUALLY)

Details:
- These are a universal fitment castor wedge used to correct castor issues in leaf spring vehicles.
- Centre hole locater
- Available in 4 different sizes offering castor correction of 1, 2, 3 or 4 Degrees.

Please select which size you need from the drop down menu.

Measurements:
1 Degree - UNI-WEDGE001
150 x 63mm x 4mm

2 Degree - UNI-WEDGE002
150mm x 63mm x 8mm

3 Degree - UNI-WEDGE003
150mm x 63mm x 10mm

4 Degree - UNI-WEDGE004
150mm x 63mm x 12mm



NOTE:

If you’re using Leaf Spring Wedges there’s every chance you will need 22mm (14mm OD) long head leaf spring centre bolts – 3/8” x 6"" thread (152mm). The centre bolt serves to keep leaves aligned & properly spaced - and the longer head allows for leaf pack housing location when a leaf correction wedge is installed. Click here for this item - part number SB022.

Make Model Years
UNIVERSAL UNIVERSAL
