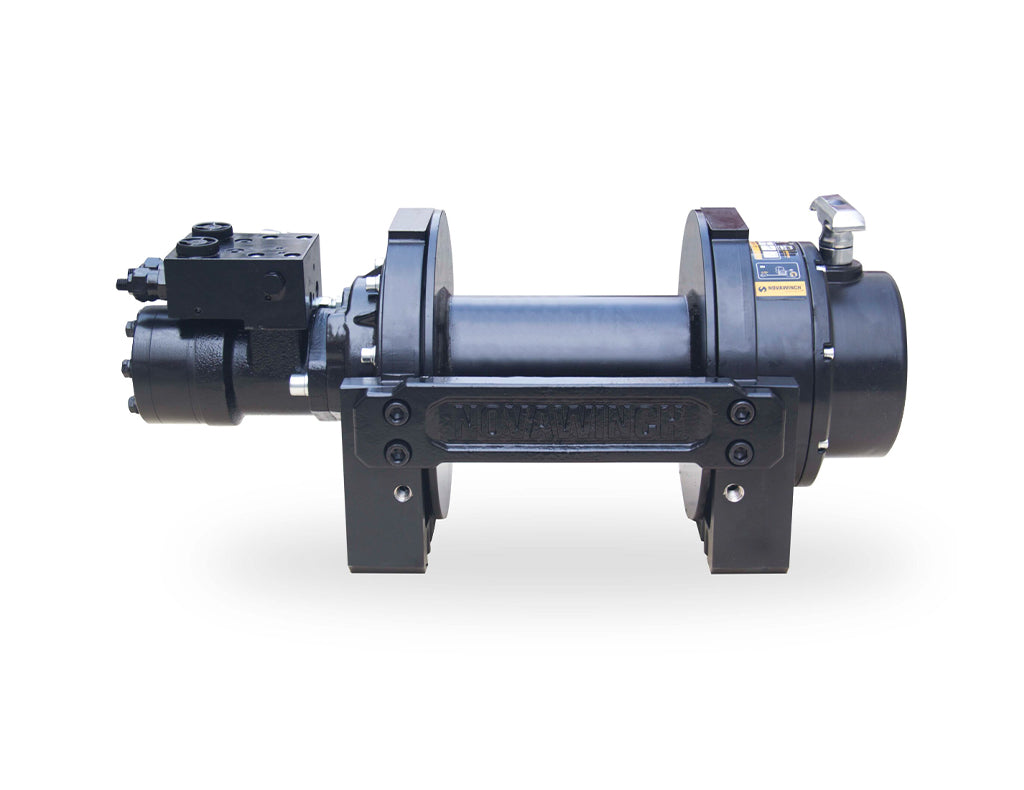

Novawinch 18000lbs Hydraulic Winch

Price
$2,622.42
Usually Ships Within 24 Hours, Unless on Pre-Order

Novawinch 18000 Hydraulic Winch

Note: This comes with roller but no wire rope.

Includes:
1x Novawinch 18000 Hydraulic Winch

Details:

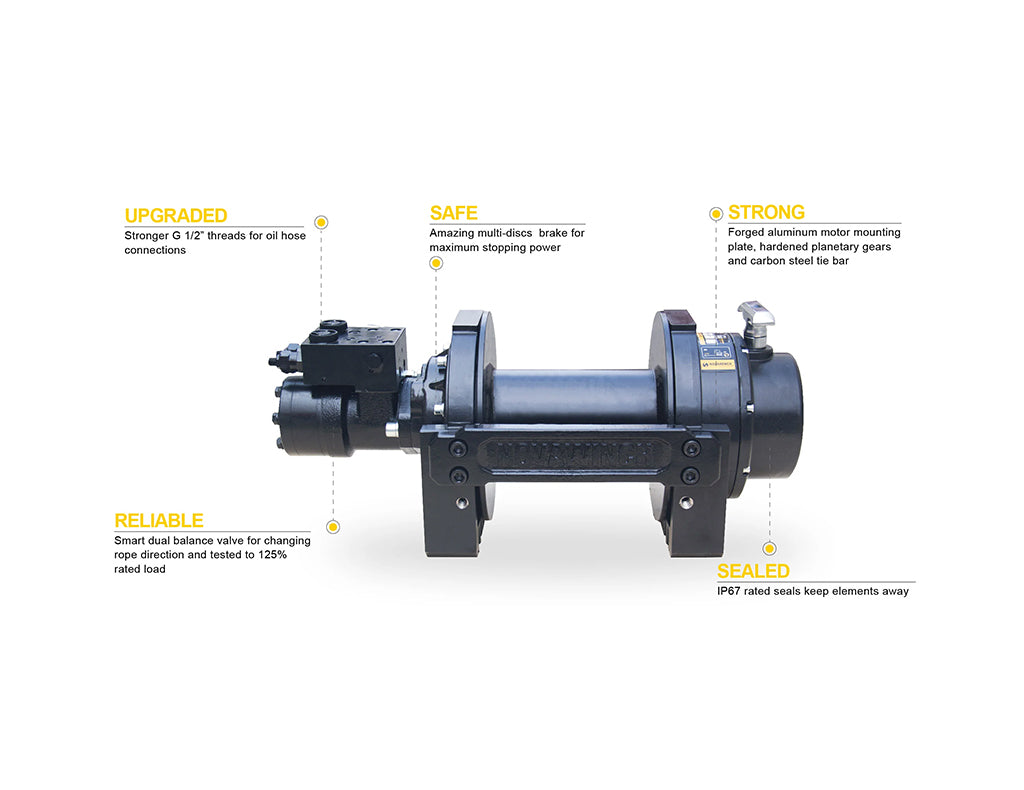

- Low noise operation under 80 dB
- Powder-coated finish provides superior corrosion resistance
- ROHS compliant outdoors power
- Simple construction of free spool control allows 360 degree rotation, easy to operate.

Specifications:
- Rated Line Pull: 18000lbs / 8165kg
- Motor Displacement: 200ml/rev
- Max Flow: 60L/min
- Max Pressure: 14Mpa
- Gear Train: 2 stage planetary gear
- Gear Ratio: 17.3:1
- Clutch: Pull and Turn Braking Action: Automatic hydraulic brake
- Fairlead: 4-way roller fairlead
- Wire Rope: 13mm x 25m
- Drum Size: 88mm x 220mm

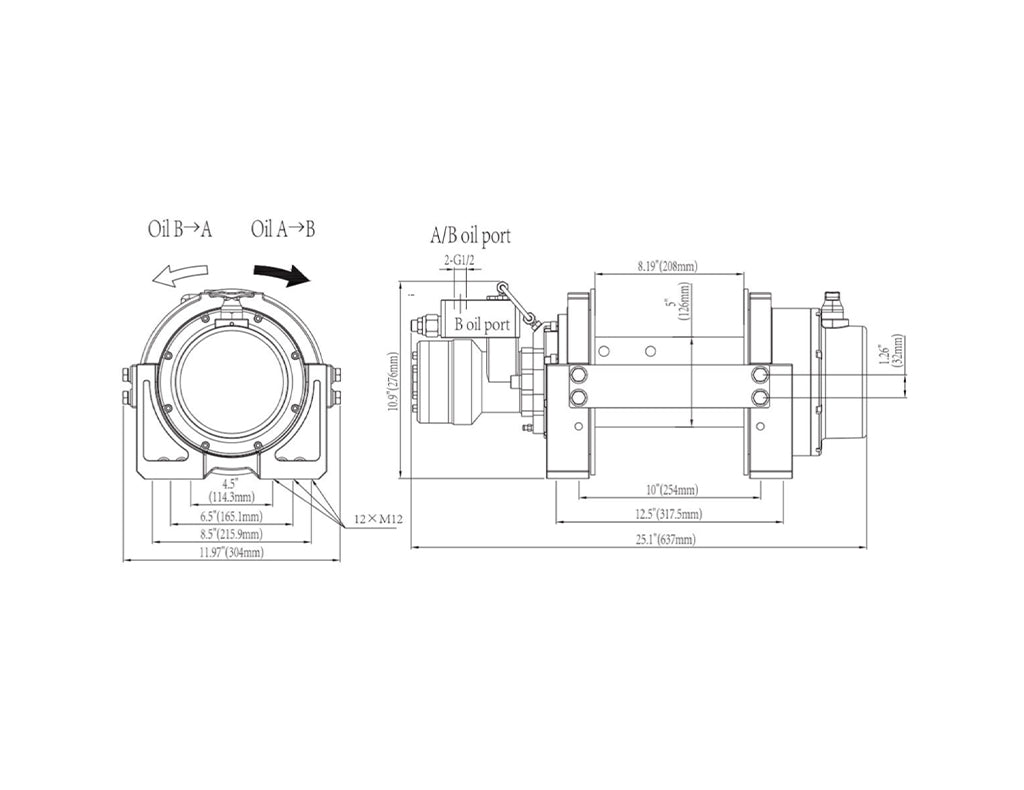

- Dimensions: 620.7mm x 215mm x 238.5mm

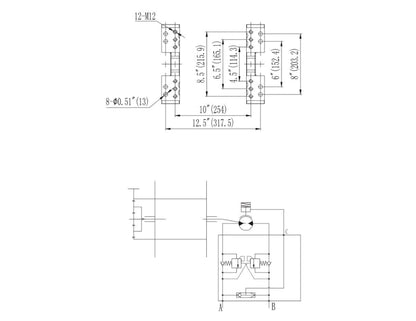

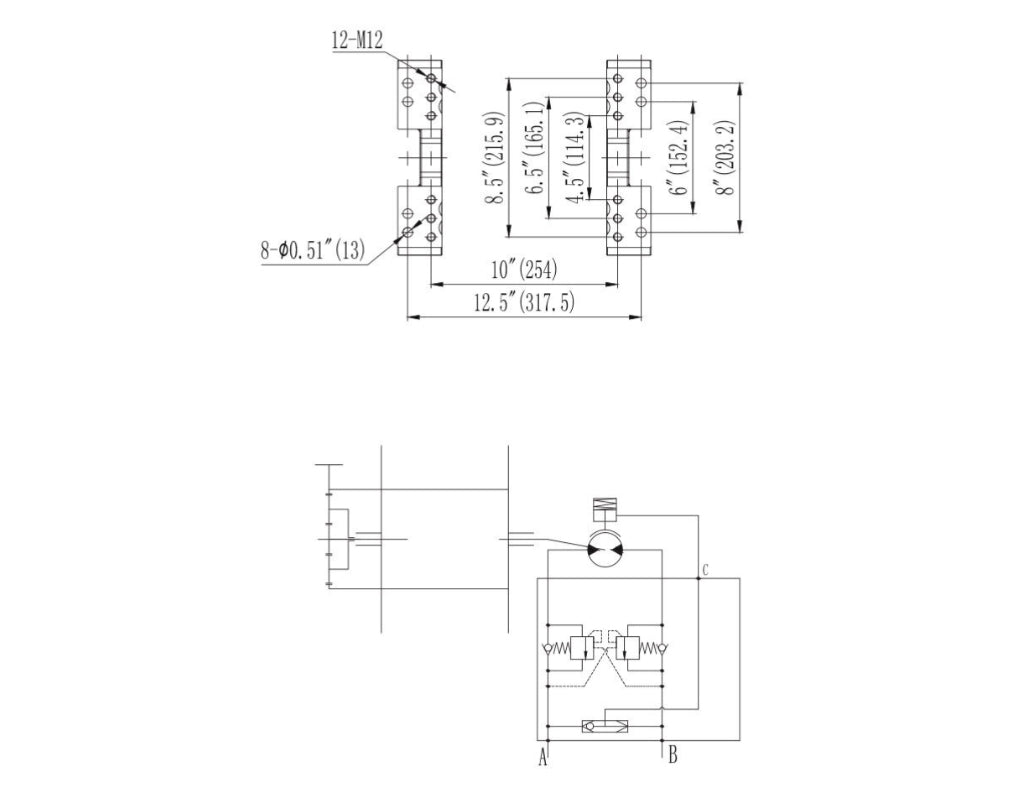

- Bolt Pattern: 254mm x 165.1mm

More Info:

Robust hydraulic motor with load control valves delivers high efficiency power transfer and long service life. Two stage gear train and straight forward construction offers less resistance and higher line speeds. Automatic multidisc hydraulic brake design provides zero drag during power in and equal speeds in and out under load. Braking system is synthetic rope safe.



Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
