MSA DS40 Drop Slide

MSA DS40 Drop Slide

Includes:
1x Drop Slide Kit
- All fixing and tie-down straps

Details:
- Slide-out 316 stainless steel table
- Compact size
- Suits all vehicles
- Easy install
- Lock-in and lock-out safety system
- Powder-coated steel frame construction
- Stainless steel and blue anodised aluminium fittings
- Travel lock and key
- Anodised blue faceplate
- MSA 4X4 s Lifetime Guarantee

LIGHTER...STRONGER...SAFER...SMARTER

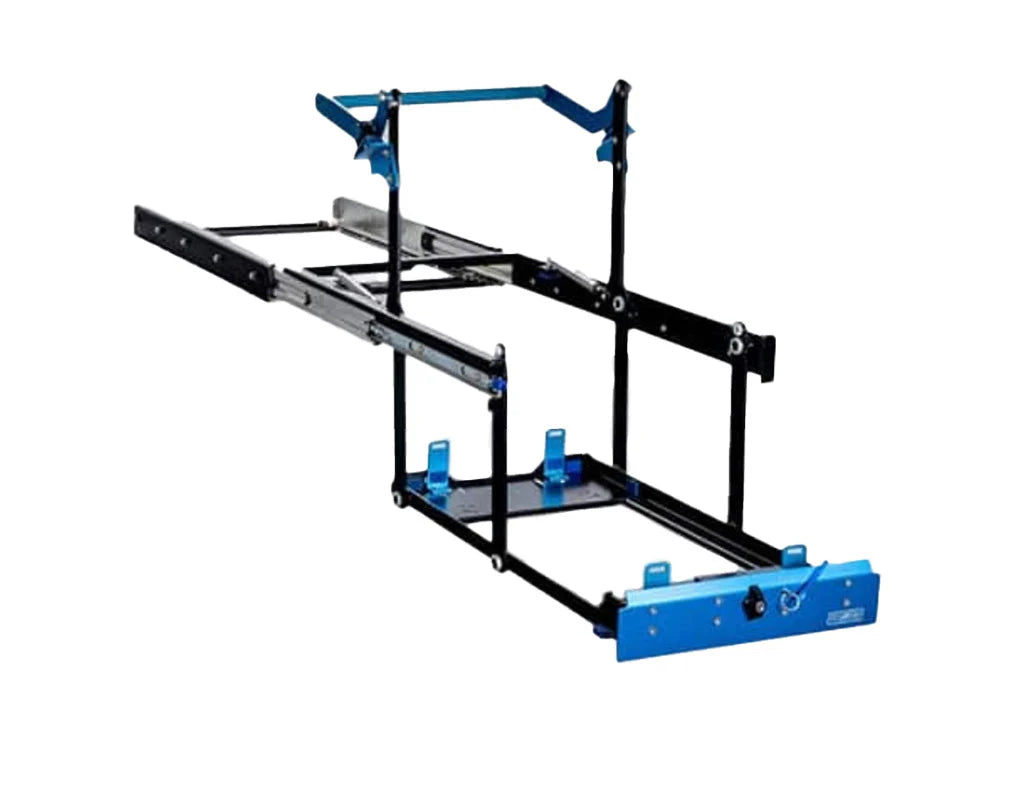

The patented Drop Slide is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

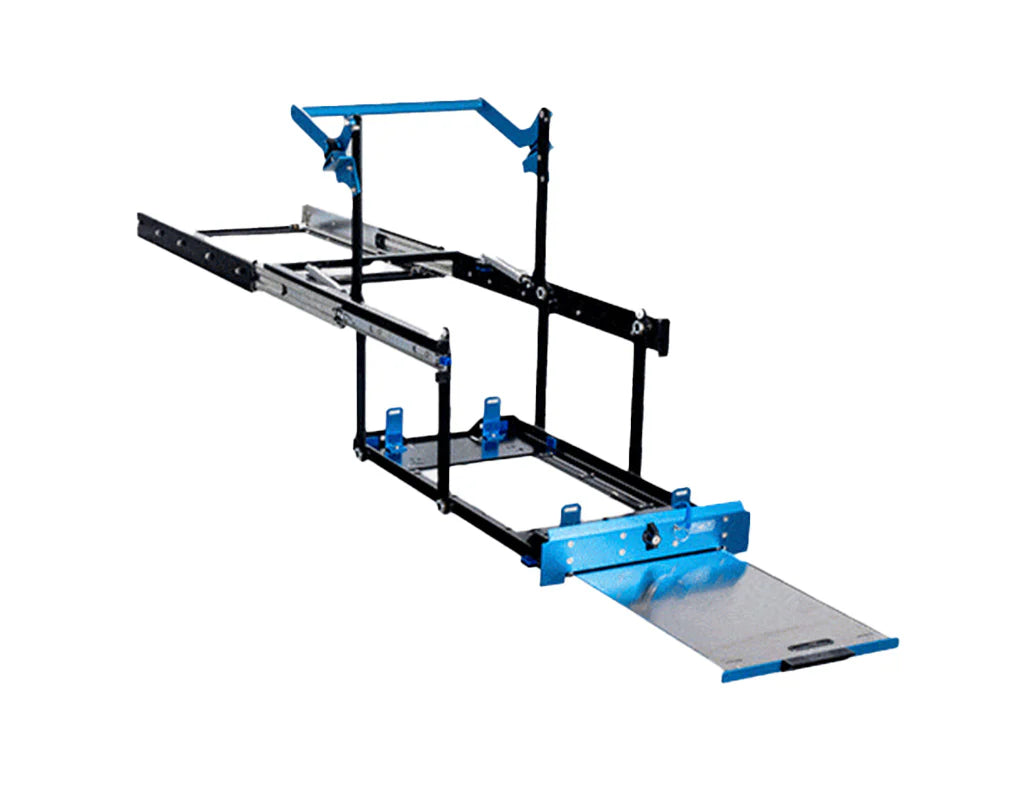

Using the slimline handle, the Drop Slide lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle.

The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Code: DS40
Weight: 30kg
Fridge Tray: 710 390
Slide Length Closed: 800+20
Slide Length Open: 1670+20
Overall Width: 500+20
Handle Width: 450
Drop: 300
Mount to Base: 35
Max Set Back: 115
Gas Strut: 650N
Freight Dimensions: 860 690 170
Freight Weight: 33kg
(all measurements displayed are in mm)
