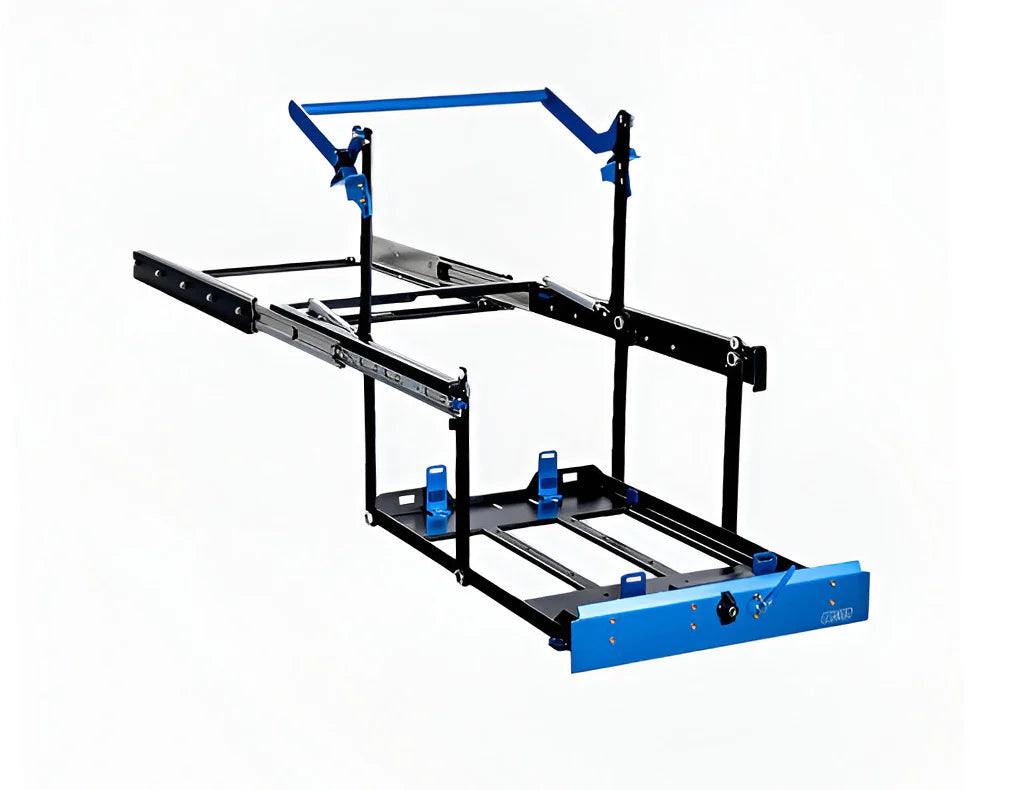

MSA DS60 Drop Slide

MSA DS60 Drop Slide

If you wish to purchase this option with a table add-on please contact us.

Includes:
1x Drop Slide Kit (Without Table Add-On)
- All fixing and tie-down straps

Details:
- Compact size
- Suits all vehicles
- Easy install
- Lock-in and lock-out safety system
- Powder-coated steel frame construction
- Stainless steel and blue anodised aluminium fittings
- Travel lock and key
- MSA 4X4 s Lifetime Guarantee
- Anodised blue faceplate
- MSA 4X4 Fridge Barrier is available for this mode

LIGHTER...STRONGER...SAFER...SMARTER
The patented Drop Slide is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

Using the slimline handle, the Drop Slide lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle.

The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Australian Patent Number: 2009245888
South African Patent Number: 2010/03634
United States Patent Number: 12/734257
PCT International Patent Number: PCT/AU2008/001555

- SKU: DS60
- Product Weight: 38kg
- Load Rating: 150Kg
- Fridge Tray: 865 535
- Slide Length Closed: 930+20
- Slide Length Open: 1965+20
- Overall Width: 645+20
- Handle Width: 590
- Drop: 300
- Mount to Base: 35
- Max Set Back: 130
- Gas Strut: 1000N
- Freight Dimensions: 860 690 170
- Freight Weight: 45kg

All measurements displayed are in mm
