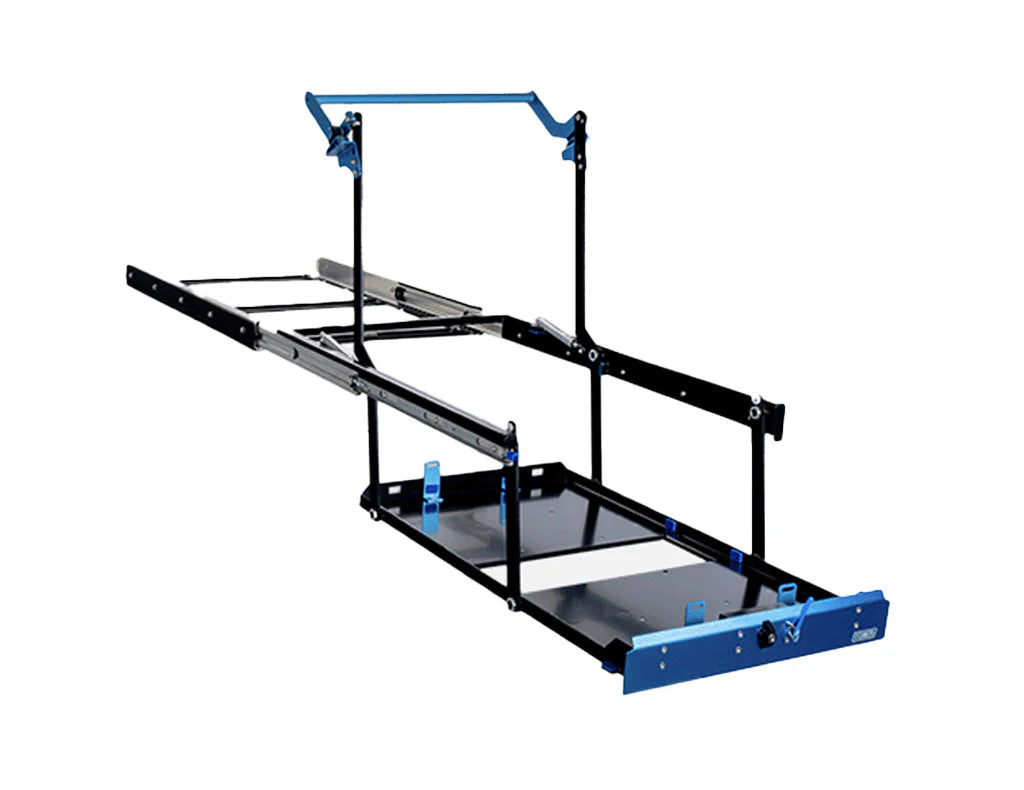

MSA DS95 Drop Slide

MSA DS95 Drop Slide

Includes:
1x Drop Slide Kit
- All fixing and tie-down straps

Details:
- MSA 4X4 Fridge Barrier is available for this model
- Compact size
- Suits all vehicles
- Easy install
- Lock-in and lock-out safety system
- Powder-coated steel frame construction
- Stainless steel and blue anodised aluminium fittings
- Travel lock and key
- Anodised blue faceplate
- MSA 4X4 s Lifetime Guarantee
- Optional slide-out 316 stainless steel table

LIGHTER...STRONGER...SAFER...SMARTER

The patented Drop Slide is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

Using the slimline handle, the Drop Slide lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle.

The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Code: DS95
Weight: 42kg
Fridge Tray: 955 560
Slide Length Closed: 1020+20
Slide Length Open: 2170+20
Overall Width: 670+20
Handle Width: 610
Drop: 300
Mount to Base: 35
Max Set Back: 150
Gas Strut: 1000N Slow
Freight Dimensions: 860 690 170
Freight Weight: 48kg
(all measurements displayed are in mm)
