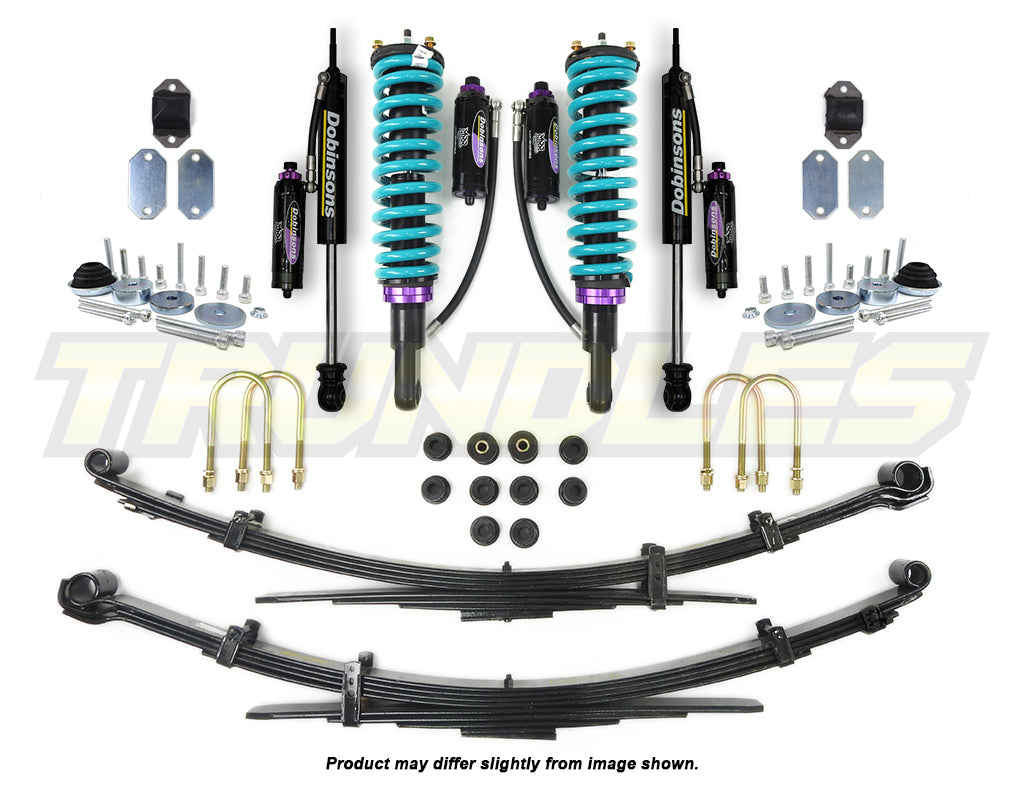

Dobinsons 45mm MRA Lift Kit to suit Mitsubishi Triton MQ/MR 2015-2023
We HIGHLY recommend installing Upper Control Arms even when lifting your vehicle 30mm.
Due to the limitations of the suspension geometry on these vehicles, if you are lifting your Triton to 50mm you MUST fit Upper Control Arms to allow correct droop travel.
When fitting raised Suspension a tail shaft spacer is required to align the centre bearing and prolong life in models with a 2 piece tail shaft
Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.
Type: Triton
Model: MQ/MR
Year: 03/2015 - 2023
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 45mm Lift
Rear Lift: 30mm Lift
Detail:
- Monotube Remote Reservoir Shock Absorbers
- Front shocks come pre-assembled for ease of installation.
Front:
2x Dobinsons MRA Front Shocks - MRA43-A800
1x Pair Dobinsons Front Springs
1x Dobinsons Top Out Stop kit - WA43-539K - If not adding Upper Control Arms. This MUST be used to prevent coil bind.
2x Trundles Strut Top Mounts - TOP5
2x Dobinsons Bump Stops - BS59-560
Rear:
2x Dobinsons MRA Gas Shock - MRA43-A801
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB43-1109K
2x Dobinsons U-Bolt Kits
Trundles Upper Control Arms Set - UCA4729Q - Please use Drop-Down Menu to add Upper Control Arms
If you require a rebuild kit for Shock/Strut number MRA43-A800, please click here
If you require fitting instructions for the MRA43-A800 shock, please click here
Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
