Dobinsons Basic MRA Height Adjustable Lift Kit to suit Ford Ranger PX3 2018-2022

Name: Dobinsons Basic MRA Height Adjustable Lift Kit to suit Ford Ranger PX3 2018-2022
Brand: Trundles Automotive
SKU: PX3BMRA-1
Price: 2080.0 NZD
Availability: InStock

PX3BMRA-1

Pre-Order / Made To Order

Select your lift amount: 45mm Lift 75mm Lift

Select your load rating: No Load 0-30Kg (Comfort Option) 40-70Kg 80-100Kg 0-50Kg

$2,080.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
COMPONENTS
EXTRAS

DETAILS

Dobinsons Basic MRA Height Adjustable Lift Kit to suit Ford Ranger PX3 2018-2022

NOTE:
- The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.

- You must fit Sway Bar Links when lifting these vehicles which can be found here.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX3
Year: Mid 06/2018 - 06/2022
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 45mm - 75mm Lift
Rear Lift: 25mm-50mm Lift
Detail:
- 4x4 Strut Mounted Front Bump Stop Models Only
- Push Button Start Models Only
- Also Suits 4x2 High-Rider
- Monotube Remote Reservoir Shock Absorbers
- Front struts come pre-assembled for ease of installation.

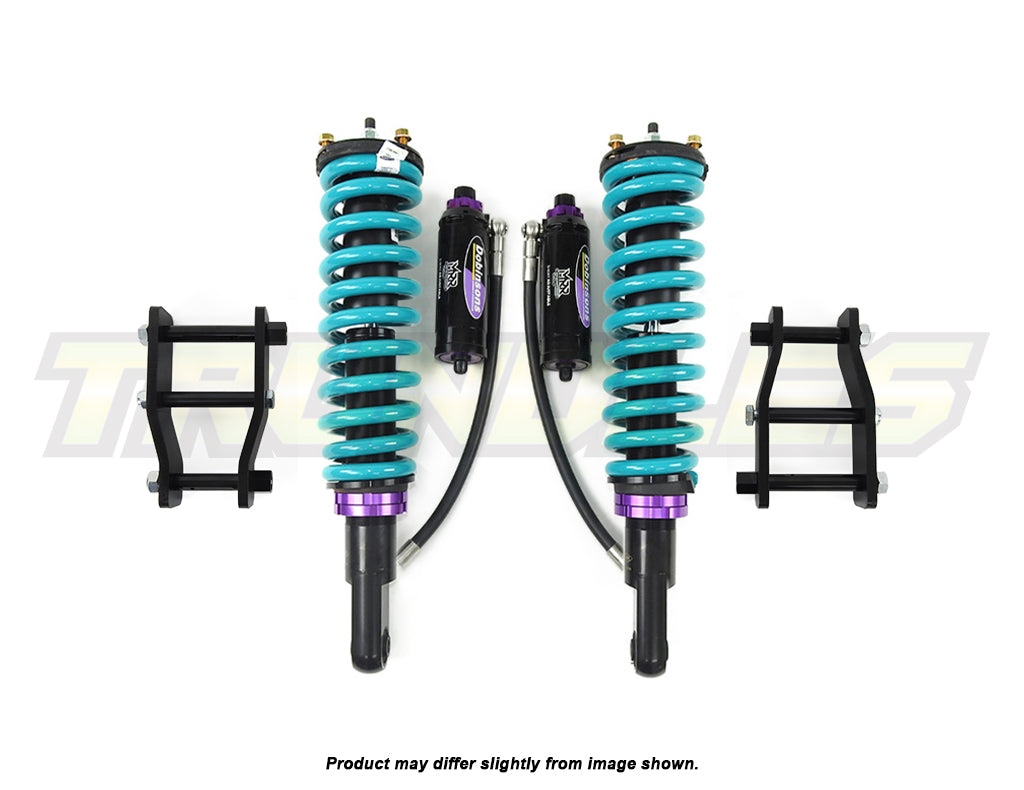

COMPONENTS

Front
2x Dobinsons MRA Shocks - MRA19-A094
1x Pair Dobinsons Springs
2x Trundles Strut Top Mounts - TOP8

Rear
1x Set of Trundles Extended Shackles

EXTRAS

If you require a rebuild kit for Shock/Strut number MRA19-A094, please click here

If you require fitting instructions for the MRA19-A094 shock, please click here

WHATS INCLUDED

Dobinsons MRA Adjustable Front Shock (Pair) to suit Ford Ranger PX3 2018-2022

Low Stock

Loading brand...

VARIANT OPTIONS & OPTIONAL EXTRAS

Trundles 50mm Lift Extended Rear Shackle Kit to suit Ford Ranger PX1/2/3 2011-2022

Loading brand...

Trundles 50mm Lift Extended Rear Shackle Kit to suit Ford Ranger PX1/2/3 2011-2022

$220.00

Dobinsons Sway Bar Link to suit Ford Ranger PX3 2018-2022

Loading brand...

Dobinsons Sway Bar Link to suit Ford Ranger PX3 2018-2022

$150.00

Make	Model	Years
FORD	Ranger PX3	2018–2022
