Dobinsons Gas Front Lift Kit to suit Toyota Landcruiser 76 Series Wagon 2007-Onwards

LC76-F-GAS-1

Select your lift amount:
Select your load rating:
Select your radius arm option:
Low stock
$980.00
$980.00 $0.00
Tax included. Shipping calculated at checkout.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift or bull bar install, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: Radius Arms require an LVV Certification to meet the current legal requirements for use on NZ public roads.

Lifetime Warranty bushings are covered by a Limited Lifetime Warranty, applicable to the original purchaser. This warranty applies to failure as a result of manufacturer defects; it does not apply to failures as a result of abuse, misuse or flex outside of what would be considered reasonable common use.

DETAILS

Dobinsons Gas Front Lift Kit to suit Toyota Landcruiser 76 Series Wagon 2007-Onwards

Please use the drop down menu to select your radius arm options and the correct spring rates depending on your vehicles accessories.

Type: Landcruiser
Model: 76 Series
Year: 04/2007 -
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 45mm - 75mm Lift
Detail:
- Twin Tube Shock Absorbers

COMPONENTS

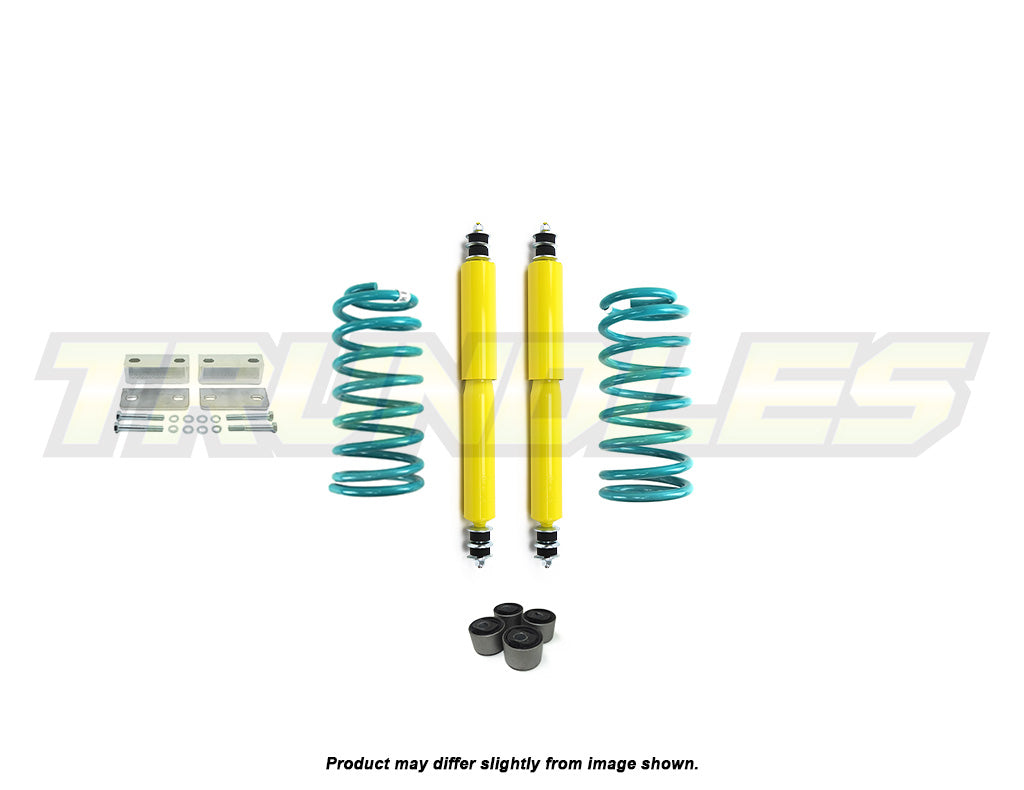

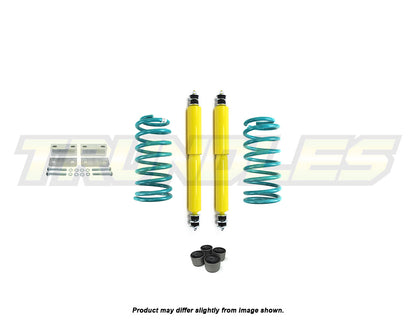

45mm:
2x Dobinsons Heavy Duty Front Shocks - GS45-114
1x Pair Dobinsons Front Springs
1x Set Trundles 2 Degree Castor Correction Bush - BUSH-001
1x Set Trundles Sway Bar Mount Extension Blocks - SBEXT-38.1-KIT

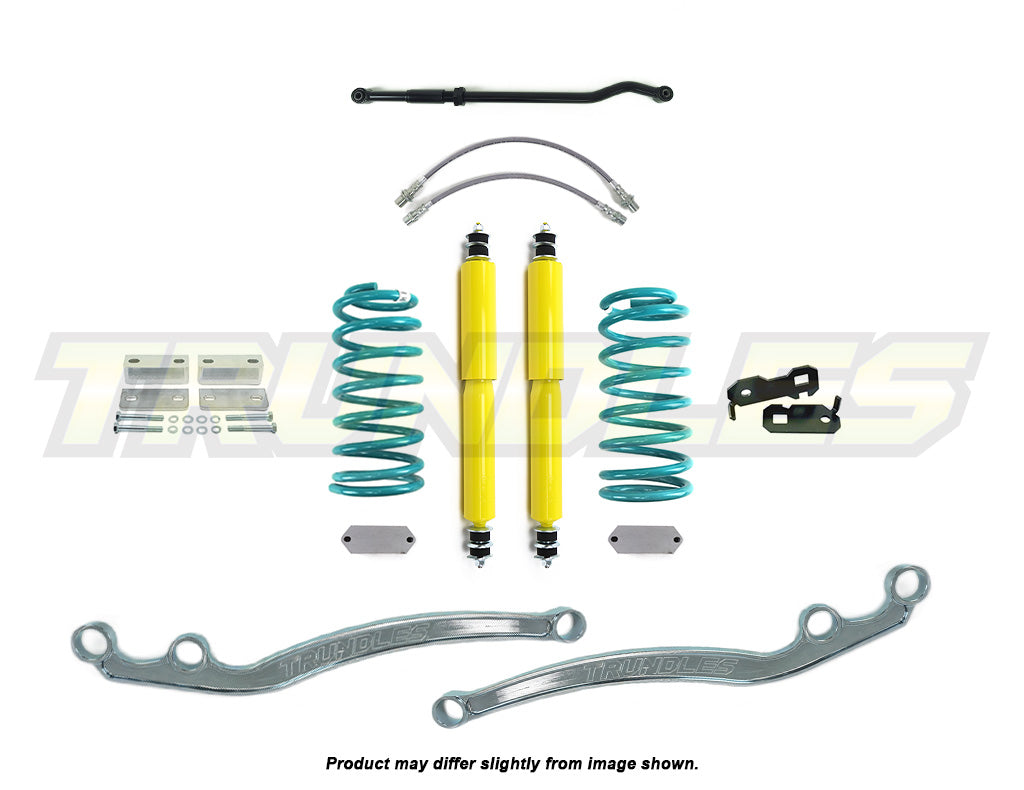

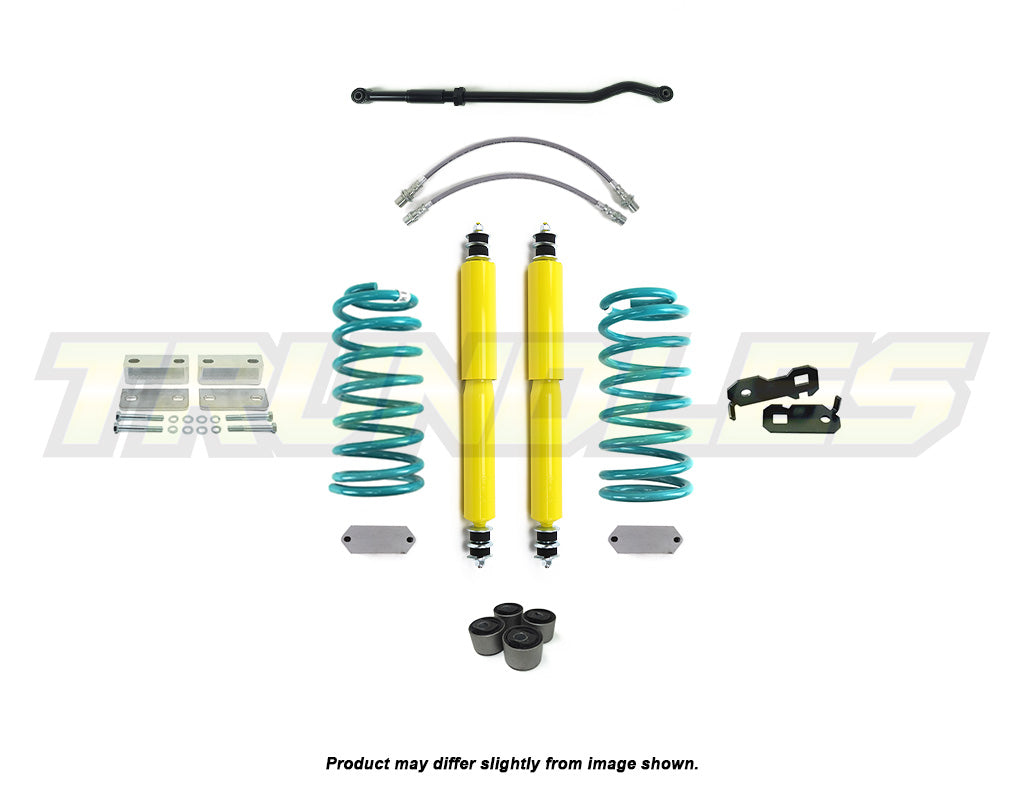

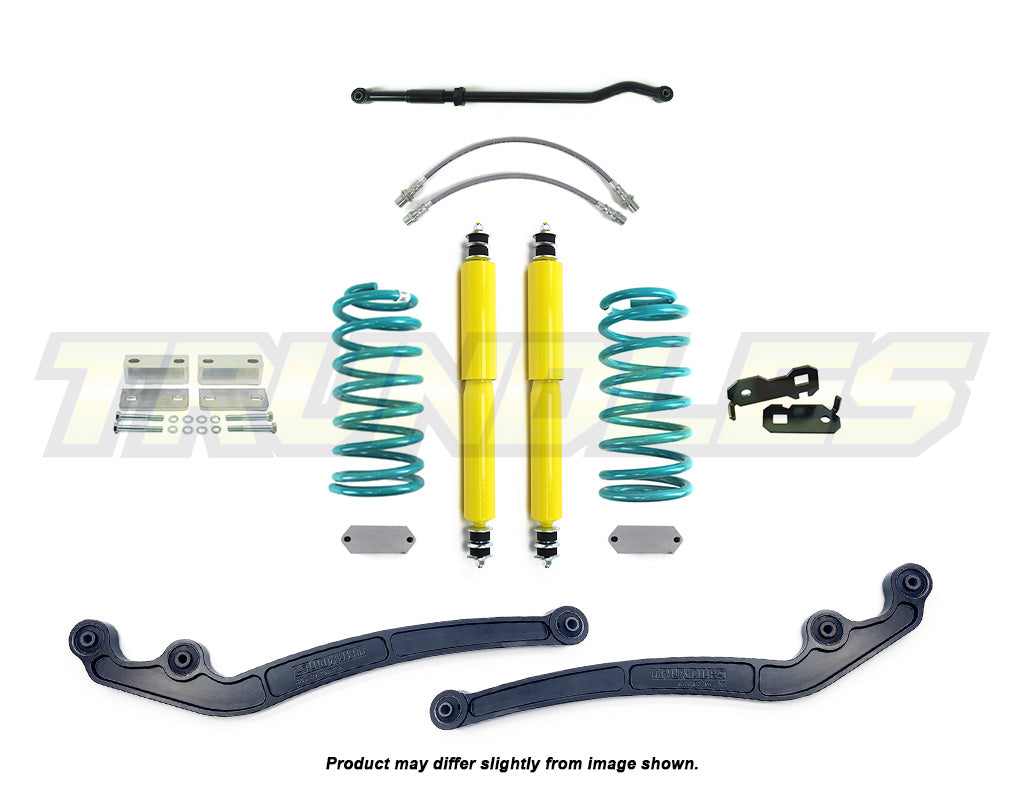

75mm:
2x Dobinsons Heavy Duty Front Shocks - GS51-116
1x Pair Dobinsons Front Springs
1x Adjustable Panhard Rod - APR-010
1x Set Trundles Castor Correction Bushes or Radius Arms
1x Set Trundles Sway Bar Mounts - SBEXT-38.1-KIT
1x Trundles 70 Series ABS Wire Relocation Bracket - LAN-105
1x Trundles Automotive Bump Stop Spacer 50.8mm (Pair) - BSS-50.8-KIT
1x Trundles Front Extended Braided Brake Hose Kit (ABS) - EBH-79-F-B

KIT COMPONENTS
Dobinsons Heavy Duty Front Gas Shock (Pair) to suit Toyota Landcruiser 76 Series 2007-Onwards
Dobinsons Heavy Duty Front Gas Shock (Pair)
Dobinsons Front Coil Springs to suit Toyota Landcruiser 76 Series 2007-Onwards
Dobinsons Front Coil Springs
Trundles Castor Correction Bush Kit (2° Castor Correction) to suit Toyota Landcruiser 76/78/79 Series 1999-Onwards
Trundles Castor Correction Bush Kit (2° Castor Correction)
Trundles Sway Bar Mount Extension 38.1mm (Pair)
Trundles Sway Bar Mount Extension 38.1mm (Pair)
ALTERNATIVES & OPTIONAL EXTRAS
Trundles Front Adjustable Panhard Rod to suit Toyota Landcruiser 76/78/79 1999-Onwards
Trundles Front Adjustable Panhard Rod
Trundles 3-5" Forged Radius Arms to suit Toyota Landcruiser 76/78/79 Series 1987-Onwards
Trundles 3-5" Forged Radius Arms
Trundles Radius Arms to suit Toyota Landcruiser 76/79 Series (DPF Models) 2016-Onwards
Trundles Radius Arms
Trundles ABS Wire Relocation Bracket to suit Toyota Landcruiser 70 Series 1999-Onwards
Trundles ABS Wire Relocation Bracket
Trundles Bump Stop Spacer 50.8mm (Pair)
Trundles Bump Stop Spacer 50.8mm (Pair)
Trundles Front Extended Braided Brake Hose Kit (ABS) to suit Toyota Landcruiser 78/79 Series 1999-Onwards
Trundles Front Extended Braided Brake Hose Kit (ABS)
Make Model Years
TOYOTA Landcruiser 76 Series Wagon 2007–2024
