Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.
Dobinsons IMS Adjustable Front Shock to suit Colorado 7 2012-2020
Note: These are sold individually and as a shock unit only, not pre assembled. If you would like a pre assembled option please contact us.
Includes:
1x Dobinsons IMS Shock - Please use Drop-Down menu to select the Lift Amount.
Details:
- Sold individually
- Monotube
- NON-REMOTE RESERVOIR
- Adjustable Spring Seat
- Fully Rebuild-able Design and Re-Valve-able
- Heavy Duty Single Piece Lower Leg
- High oil capacity
- Race inspired hi-flow CNC Billet Alloy Piston 50-60mm Bore – for the Ultimate in Off-road Handling
- 5140 HV900 Hard Chrome Plated, Heat treated 22mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- High Quality O.E.M. Grade Natural Rubber Bushings
- Direct Bolt-On Design
- Picture is for reference only actual product may be different
More Info:
Over 4 years of research, development and testing were undertaken to produce Dobinsons Monotube Internal Reservoir Shocks. The IMS series introduces top quality build design and features to achieve the ultimate in performance and durability.
Extended & Compressed Lengths:

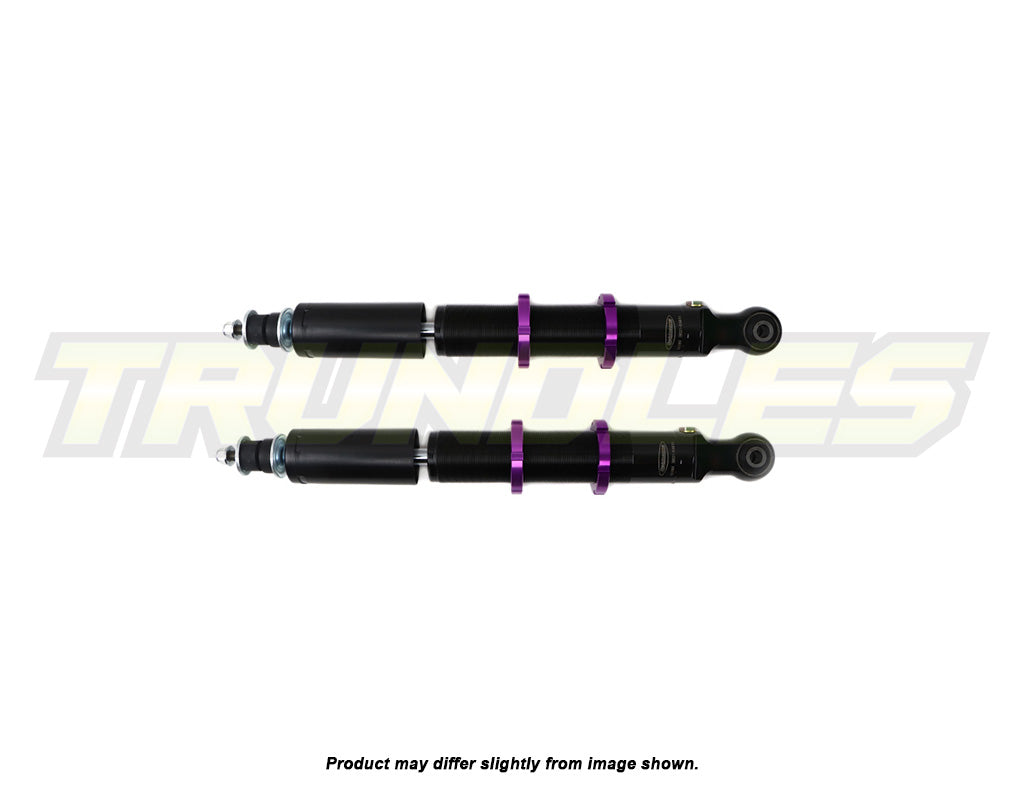

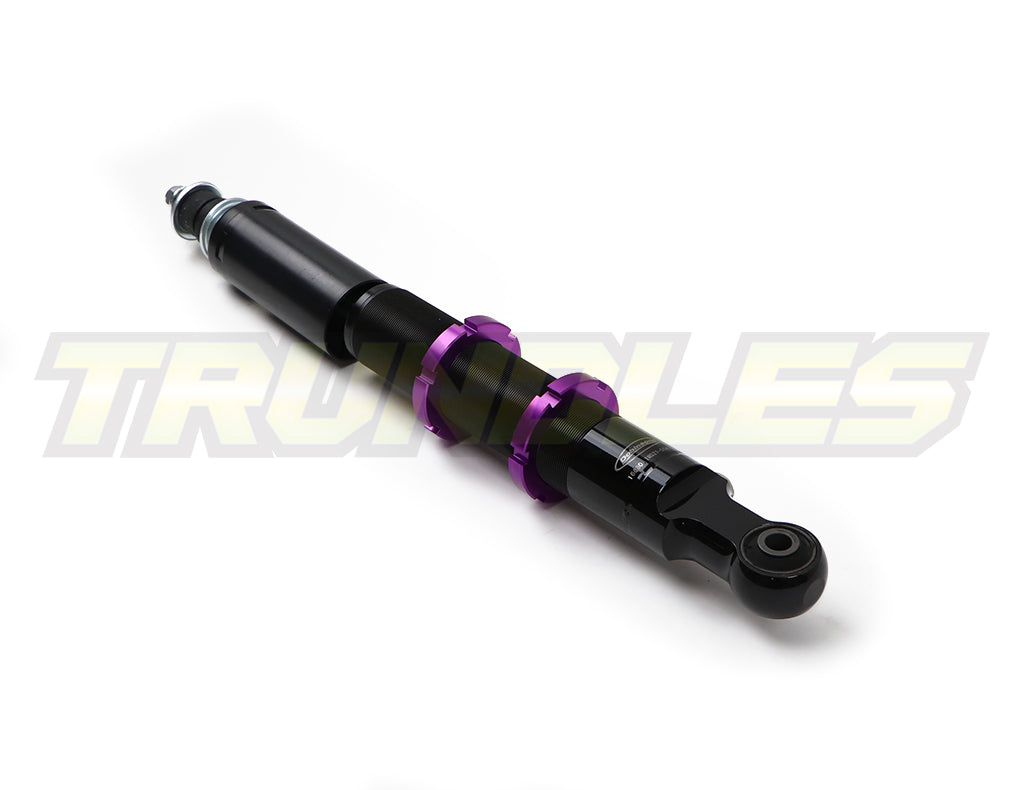

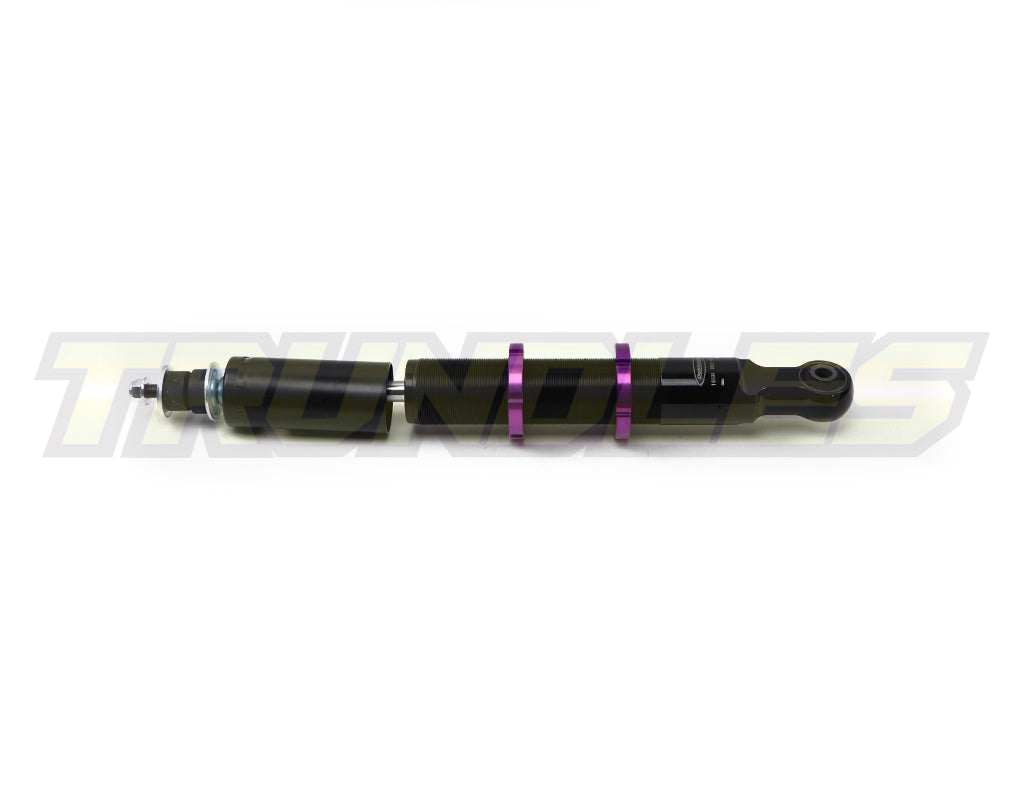

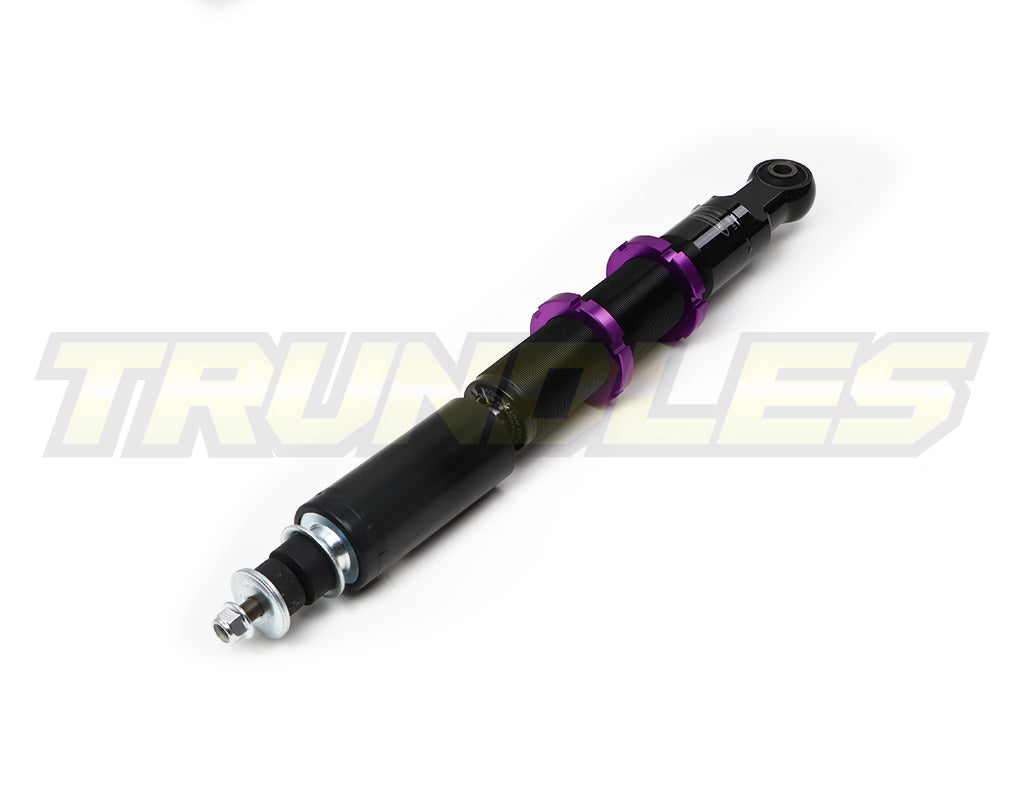

IMS21-50470
- Extended Length - 500mm
- Compressed Length - 360mm

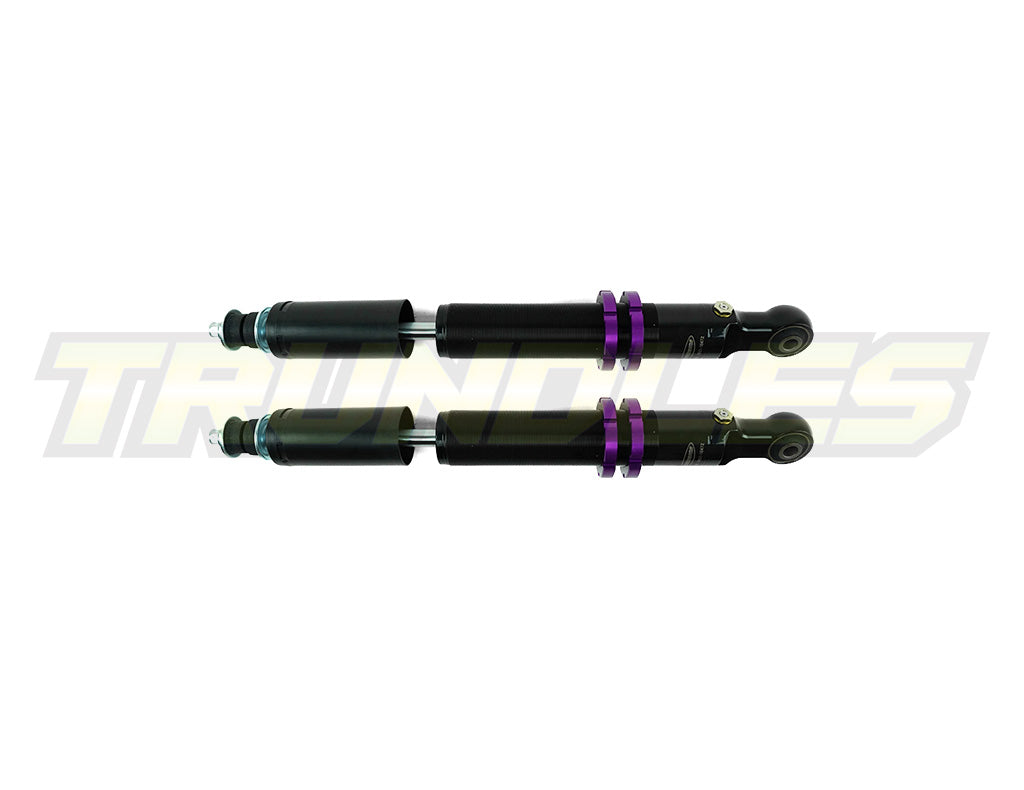

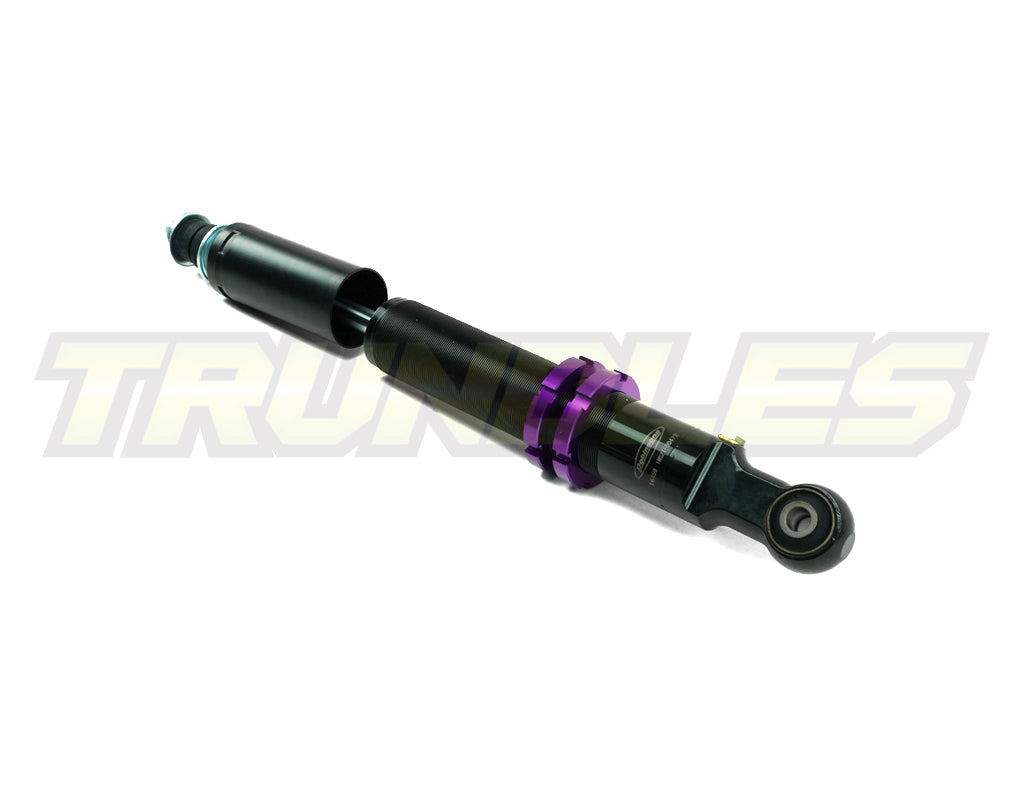

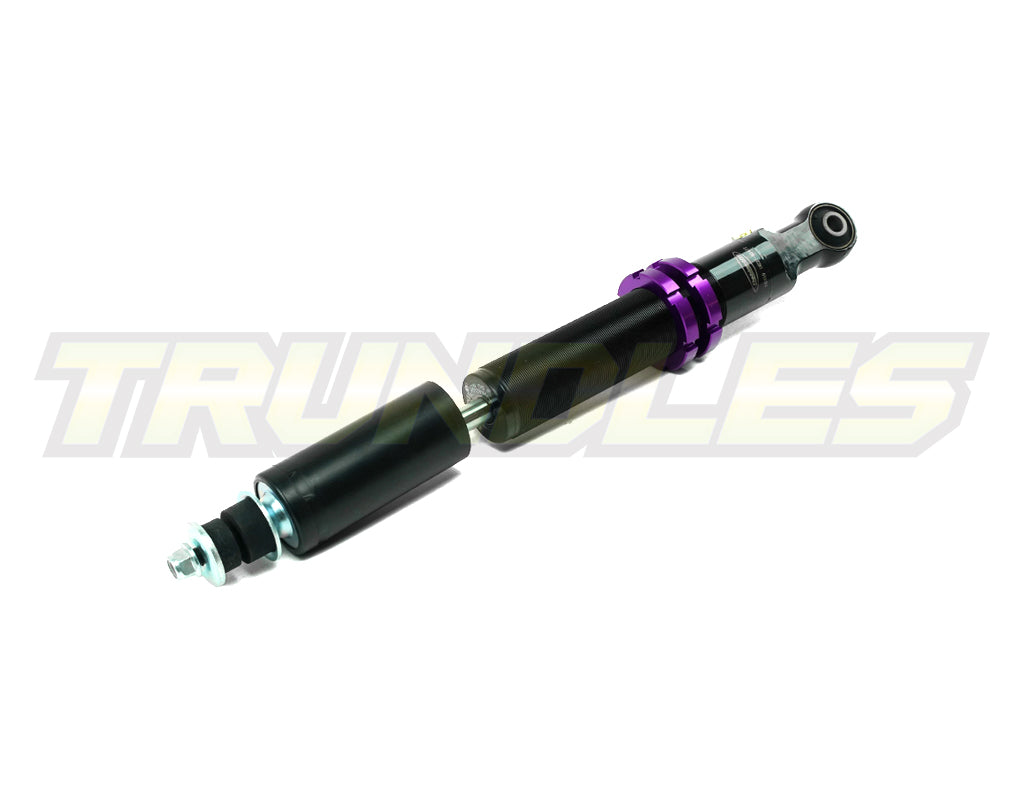

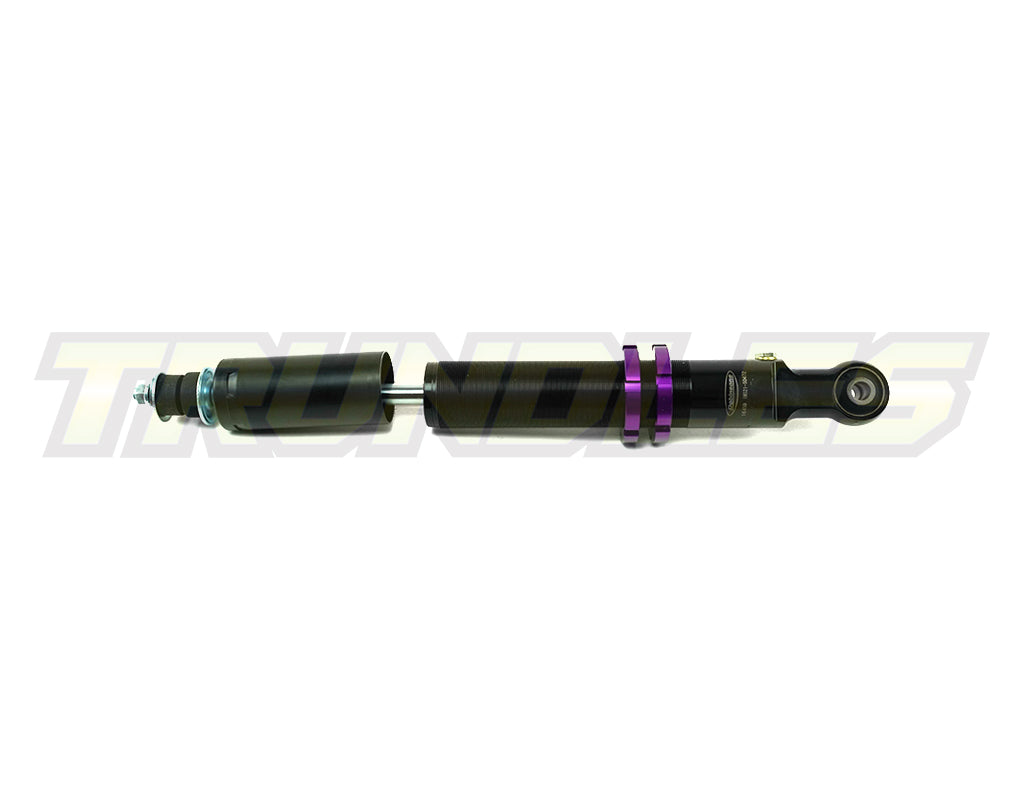

IMS21-50472
- Extended Length - 515mm
- Compressed Length - 360mm
Note: For a lower replacement bush to fit IMS21-50470, please click here
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
