Dobinsons IMS Adjustable Rear Gas Shock to suit Isuzu D-Max 3rd Gen 2020-Onwards
Please select your shock type from the dropdown menu.
NOTE: If fitting raised shocks, you must also fit the Brake Line Extension Kit which can be found here.
Includes:
1x Dobinsons IMS Shock
Details:
- Sold individually
- Monotube (NON-Remote Reservoir)
- Adjustable Spring Seat
- Fully Rebuild-able Design and Re-Valveable
- Heavy Duty Single Piece Lower Leg
- High oil capacity
- Race inspired hi-flow CNC Billet Alloy Piston 50-60mm Bore – for the Ultimate in Offroad Handling
- 5140 HV900 Hard Chrome Plated, Heat treated 22mm MicroPolished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- High Quality O.E.M. Grade Natural Rubber Bushings
- Direct Bolt-On Design

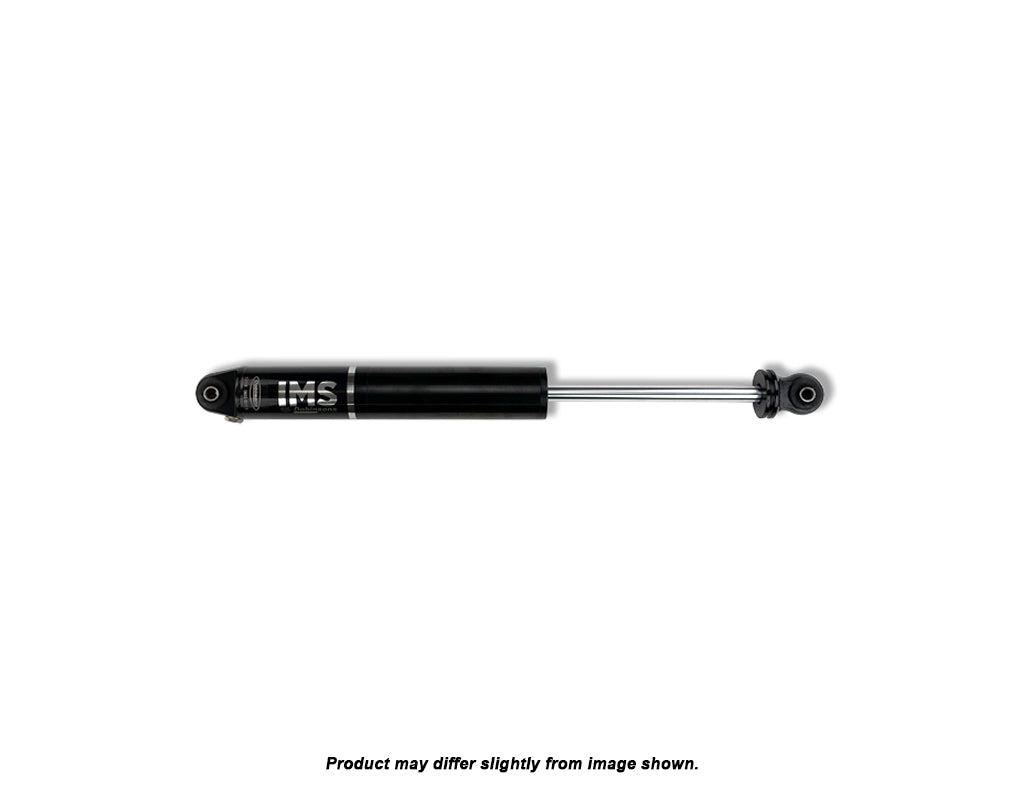

- Picture is for reference only actual product may be different
More Info:
Over 4 years of research, development and testing were undertaken to produce Dobinsons Monotube Internal Reservoir Shocks. The IMS series introduces top quality build design and features to achieve the ultimate in performance and durability.
Extended & Compressed Lengths:
IMS43-50081B (Suits Raised Height Springs ONLY).
- Extended Length - 620mm
- Compressed Length - 390mm
IMS21-50471 (Suits Standard Height Springs ONLY).
- Extended Length - 595mm
- Compressed Length - 375mm
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
