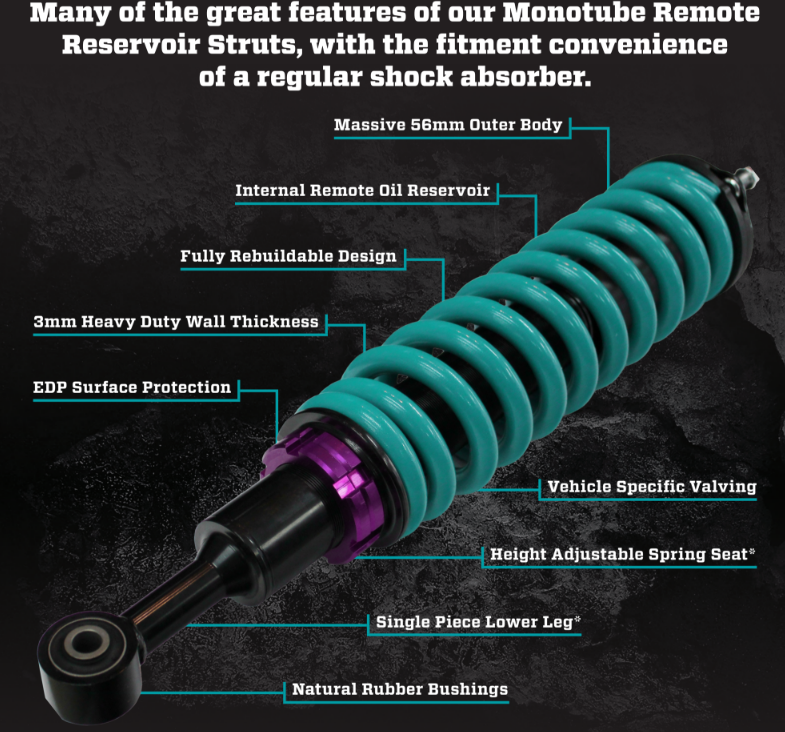

• Dobinson IMS Front Shock (Non Remote Reservoir) for Toyota Hilux 2005-2015 - Trundles Automotive

Dobinsons IMS Rear Shock (Pair) to suit Lexus GX460 2010-2019

Dobinsons IMS Rear Shock (Pair) to suit Lexus GX460 2010-2019

IMS59-50701-PAIR

In stock
Select your shock absorber type:
$800.00
$800.00
Tax included.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
DETAILS

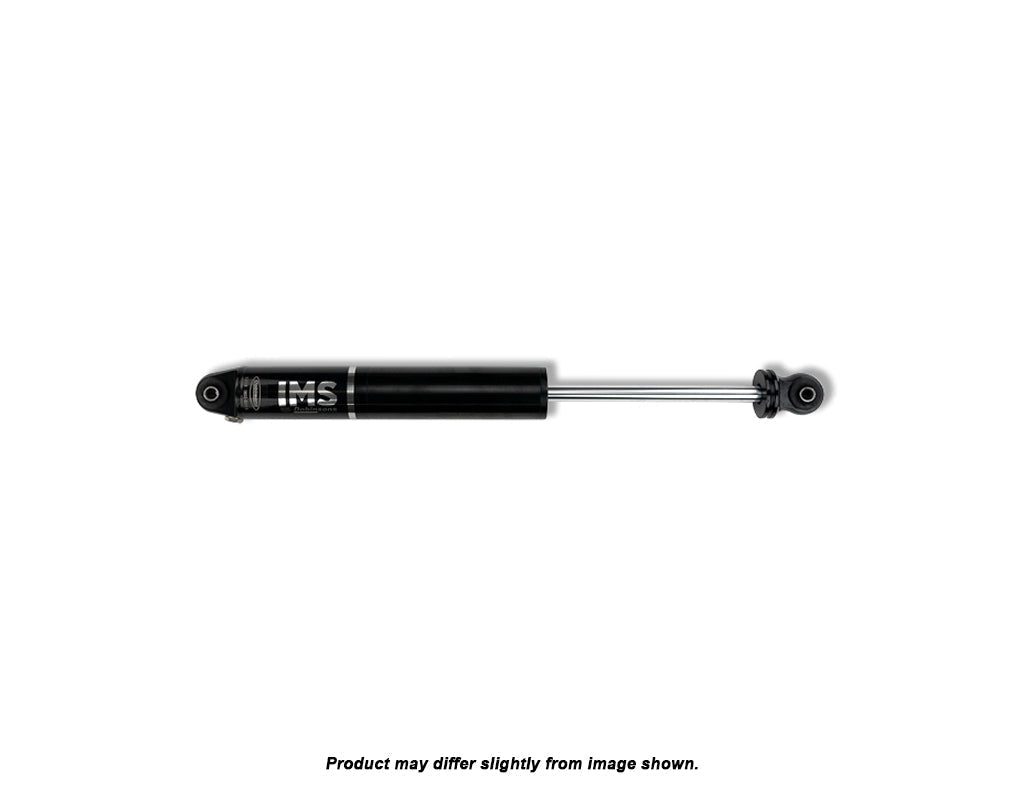

Dobinsons IMS Rear Shock (Pair) to suit Lexus GX460 2010-2019

Note: These are sold as a shock unit only, not pre assembled. If you would like a pre assembled option please contact us.

IMS59-50575 suits Non-KDSS vehicles only with variable rate coils only and must be fitted with Bump Stop Extensions to prevent shock from bottoming out.

Details:
- Monotube
- NON-REMOTE RESERVOIR
- Adjustable Spring Seat
- Fully Rebuild-able Design and Re-valve-able
- Heavy Duty Single Piece Lower Leg
- High oil capacity
- Race inspired hi-flow CNC Billet Alloy Piston 50-60mm Bore – for the Ultimate in Off-road Handling
- 5140 HV900 Hard Chrome Plated, Heat treated 22mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- High Quality O.E.M. Grade Natural Rubber Bushings
- Direct Bolt-On Design
- Picture is for reference only actual product may be different

More Info:
Over 4 years of research, development and testing were undertaken to produce Dobinsons Monotube Internal Reservoir Shocks. The IMS series introduces top quality build design and features to achieve the ultimate in performance and durability.

Note: For upper replacement bushes to fit IMS59-50701 & IMS59-50575, please click here

Note: If you require fitting instructions for the IMS59-50701 & IMS59-50575 shocks, please click here

The Rebuild Kit for this shock can be found here.

COMPONENTS

Includes:
2x Dobinsons IMS Shocks

SHOCK LENGTHS

Extended & Compressed Lengths:
IMS59-50701
- Extended Length - 598mm
- Compressed Length - 389mm

IMS59-50575
- Extended Length - 720mm
- Compressed Length - 438mm

    Make Model Years
    LEXUS GX460 2010–2019
