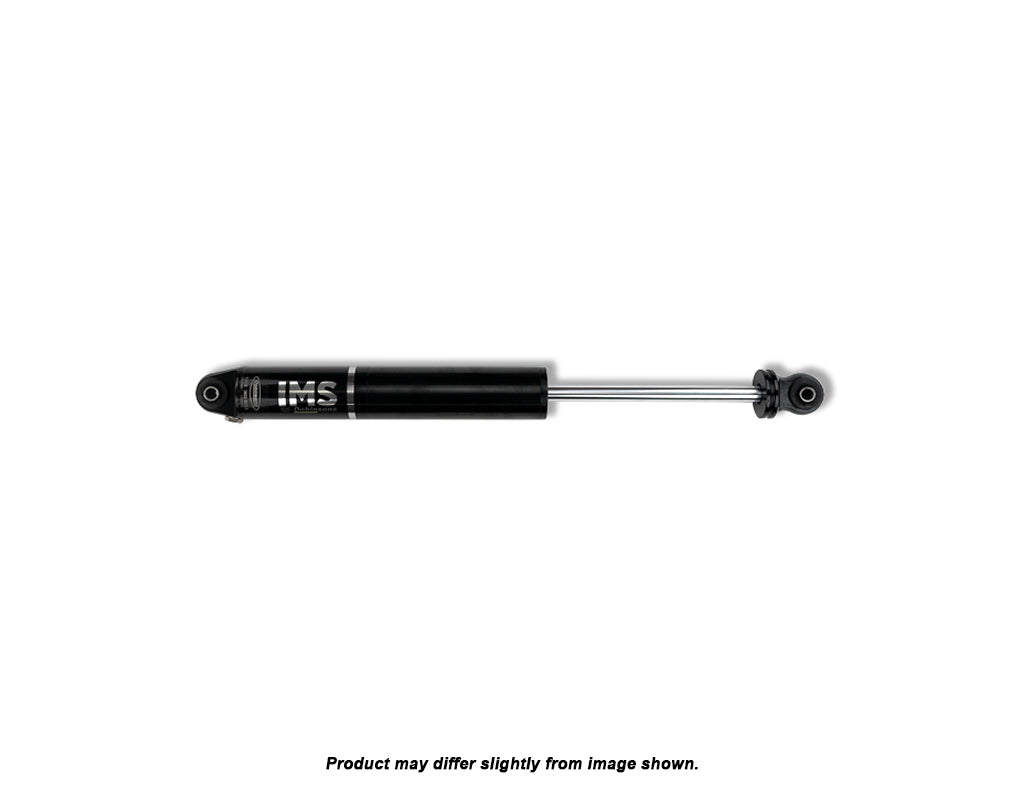

Dobinsons IMS Rear Shock to suit Mazda BT-50 Series III 2020-Onwards

Dobinsons IMS Adjustable Rear Gas Shock to suit Mazda BT-50 Series III 2020-Onwards

Please select your shock type from the dropdown menu.

NOTE: If fitting raised shocks, you must also fit the Brake Line Extension Kit which can be found here.

Includes:
1x Dobinsons IMS Shock

Details:
- Sold individually

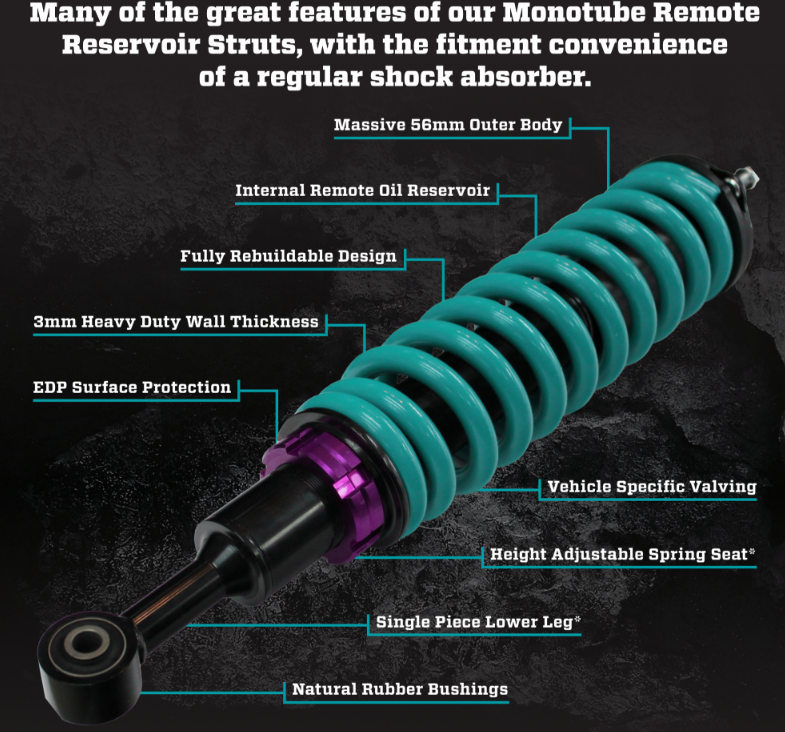

- Monotube (NON-Remote Reservoir)
- Adjustable Spring Seat
- Fully Rebuild-able Design and Re-Valveable
- Heavy Duty Single Piece Lower Leg
- High oil capacity
- Race inspired hi-flow CNC Billet Alloy Piston 50-60mm Bore – for the Ultimate in Offroad Handling
- 5140 HV900 Hard Chrome Plated, Heat treated 22mm MicroPolished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- High Quality O.E.M. Grade Natural Rubber Bushings
- Direct Bolt-On Design
- Picture is for reference only actual product may be different

More Info:
Over 4 years of research, development and testing were undertaken to produce Dobinsons Monotube Internal Reservoir Shocks. The IMS series introduces top quality build design and features to achieve the ultimate in performance and durability.

Extended & Compressed Lengths:
IMS43-50081B (Suits Raised Height Springs ONLY).
- Extended Length - 620mm
- Compressed Length - 390mm
IMS21-50471 (Suits Standard Height Springs ONLY).
- Extended Length - 595mm
- Compressed Length - 375mm

The Rebuild Kit for this shock can be found here.
