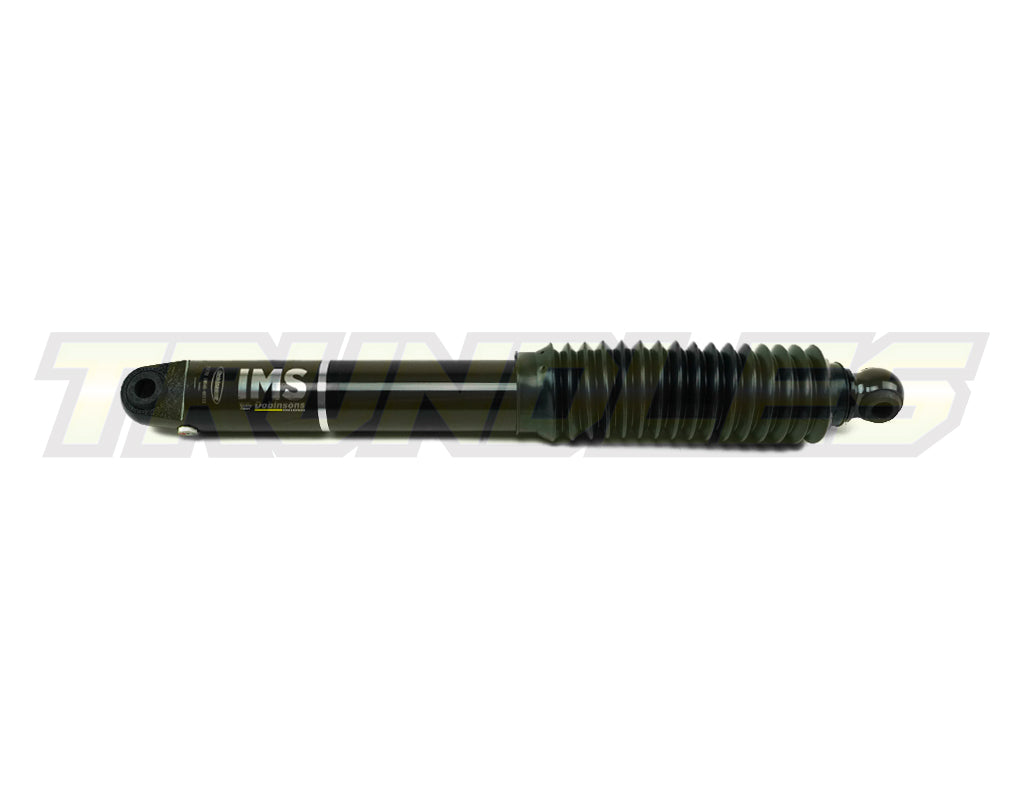

Dobinsons IMS Rear Shock to suit Toyota Landcruiser 78 Series 1999-Onwards
Please select your shock type from the dropdown menu.
Includes:
1x Dobinsons IMS Shock
Details:
- Sold individually
- Monotube
- NON-REMOTE RESERVOIR
- Fully Rebuild-able Design and Re-valve-able
- Heavy Duty Single Piece Lower Leg
- High oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC Billet Alloy Piston 50mm Bore – for the Ultimate in Off-road Handling
- 5140 HV900 Hard Chrome Plated, Heat treated 22mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‑wear performance
- High Quality O.E.M. Grade Natural Rubber Bushings
- Direct Bolt-On Design
Extended & Compressed Lengths:
IMS45-60115
- Extended Length - 650mm
- Compressed Length - 421mm
IMS45-60913
- Extended Length - 690mm
- Compressed Length - 443mm
IMS45-60915
- Extended Length - 730mm
- Compressed Length - 458mm
More Info:
Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilizing the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
