Llams Air Electronic Air Suspension Height Controller Kit to suit Land Rover Defender 2020-Onwards

Llams Air Electronic Air Suspension Height Controller Kit to suit Land Rover Defender 2020-Onwards

NOTE: Controller module must be calibrated per vehicle before use due to suspension variations.

General Functionality:
- Allows suspension height adjustment at any speed.
- Designed for improved off-road capability and on-road handling.
- Eliminates the 50 kph speed restriction for off-road and raised modes.
 - Offers better ride comfort and clearance for rough conditions.
- Off-road driving: Maintains raised height regardless of speed.
- High-speed driving: Lowered setting improves handling without needing to exceed a speed threshold.
- Urban/Family use: Lower height helps with access for children or mobility-impaired passengers.

Installation:
- Control dial can be fitted where it suits you, extra-long cabling supplied to suit left and right-hand markets.
- Plug and play system.
- No lift rods needed, use the factory lift rods that are flexible to reduce impact damage to sensors.

Height Modes & Settings:
Low Height Mode:
-  -20mm or -35mm (configured during calibration).
- Used for improved access or better high-speed handling.

Medium Height Mode:
- +30mm raised height.
- Better bump-stop clearance for rough tracks.
- Medium Height = Offroad 1 height.

High Height Mode:
- Full off-road height (no speed restriction in normal mode).
- In Off-road mode, enables super-extended height, but with the usual speed restriction.
- HIGH = 50 mm or 60 mm, can be calibrated to Offroad 2 height.

Extra Low Height Mode:
- Available for Discovery 5, L494 Range Rover Sport, L405 Range Rover and the L663 Defender.
- Provides minimum ride height for clearance under low obstacles.

Extra High Height Mode:
- Special mode to restore Off-road height if suspension lowers due to ABS/steering angle faults.
- Not available for Discovery 5, L494 Range Rover Sport, L405 Range Rover and the L663 Defender, due driver having the ability to over-ride lowering when an ABS-reported fault occurs.

Compatibility:
- New Land Rover Defender 2020-Onwards 90, 110 and 130 with Air suspension, left and right-hand drive.
- Must be calibrated per vehicle before use due to suspension variations.
- Not vehicle-specific, but installation requires matching with the suspension system of the vehicle.
- Compatible with vehicles equipped with Terrain Response.

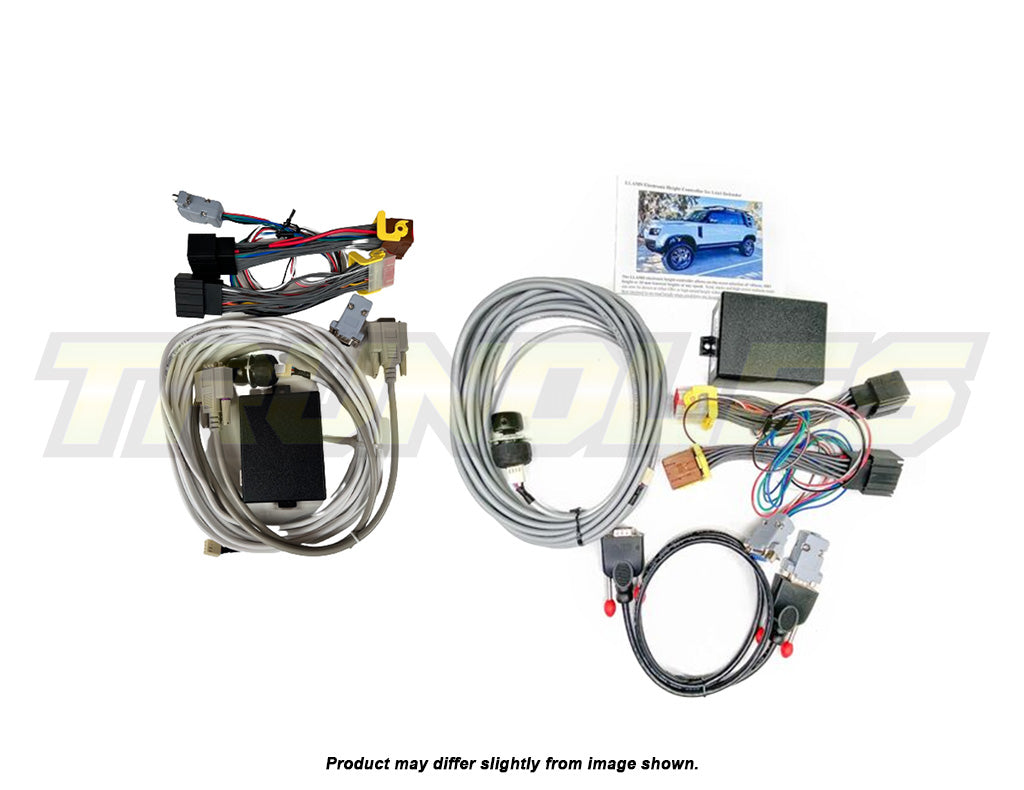

1x Llams Air Suspension Height Controller Kit.
- Controller module.
- Height switch with LED and lead.
- Special mode switch and lead.
- Wiring harness with plug-and-play connectors for the suspension ECU.
- Loop-back plug for temporary module removal.
- Full Instructions Included.

Do you have troubles getting into your garage or car parks or your family members having difficulty getting into the vehicle? Or maybe you wish there was more height under the vehicle when cleaning or working on it, or maybe you want the ability to get unstuck when you are grounded out on an obstacle?

You may also want the ability to lift your vehicle slightly for bigger tires but also be able to zero out to factory height at the turn of a dial or maybe drop a little lower on twisty tight roads or Spirited driving, but you cant because when you lift or drop the factory system it reverts to normal height at certain speeds.

Allows you to select secret offroad heights at any speed and also unlocks super-extended mode to be selectable. It allows 10 different height selections with over 6.5 inches between the highest and lowest selections.

Sand, tracks and rough dirt roads can now be driven at either full off-road height or a lesser 40 mm raised height without the normal 50 kph speed restriction then return to on-road height when conditions are suitable. Raised by 40 mm provides improved ride on rough tracks due to more bump-stop clearance. High speed lowered height provides improved on-road handling without the usual High speed requirement and when used with Access mode it provides improved access for young children and the mobility-impaired.

Do you run Lift Rods and wish you didn't have that bouncy ride in offroad mode and wish your suspension didn't top out and clunk?
The new Defender Elift is your answer, you can choose to lift only by how much you really need and only when you really need it, then you can lower or run as per Landrover intended at the turn of dial. Simply select normal mode to instantly remove your lift.

Have you installed lift rods and now can't enter your garage, undercover parking, shopping mall parking or under low hanging trees or objects or provide improved access entry access to the vehicle?
With the new Defender Elift you can turn the dial to select a secret super-low mode and lower your defender beyond factory limits -50mm
