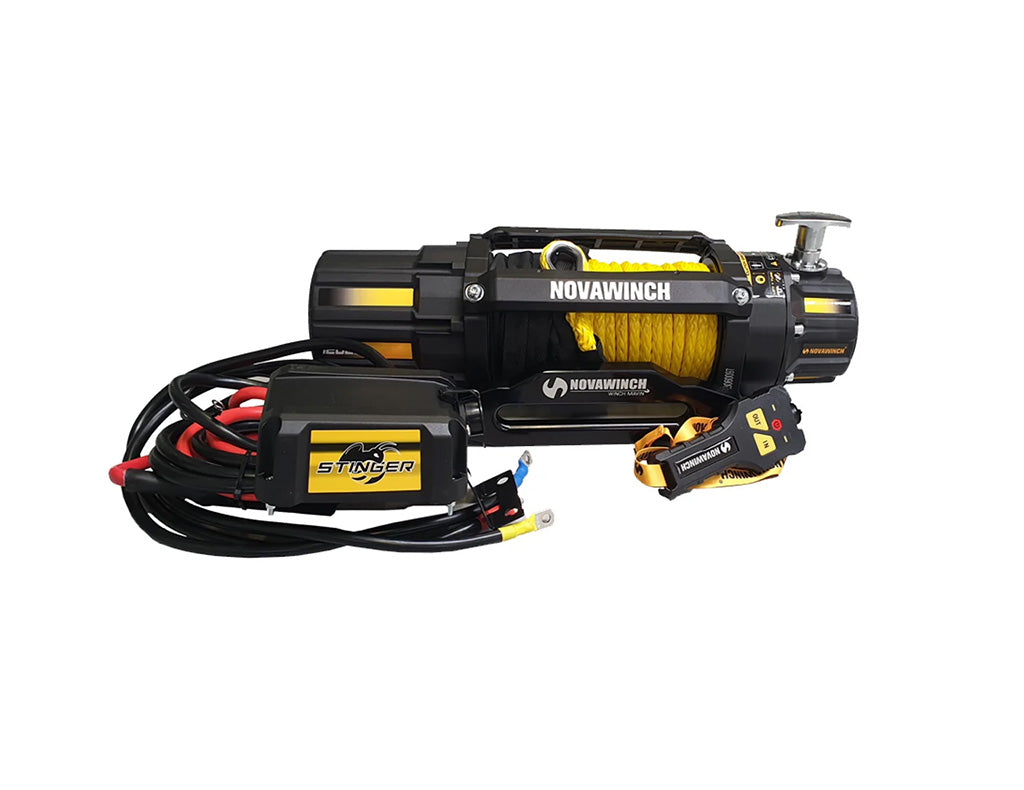

Includes:
- 24-volt foot-down Stinger+ electric winch (free spool T bar can be rotated)

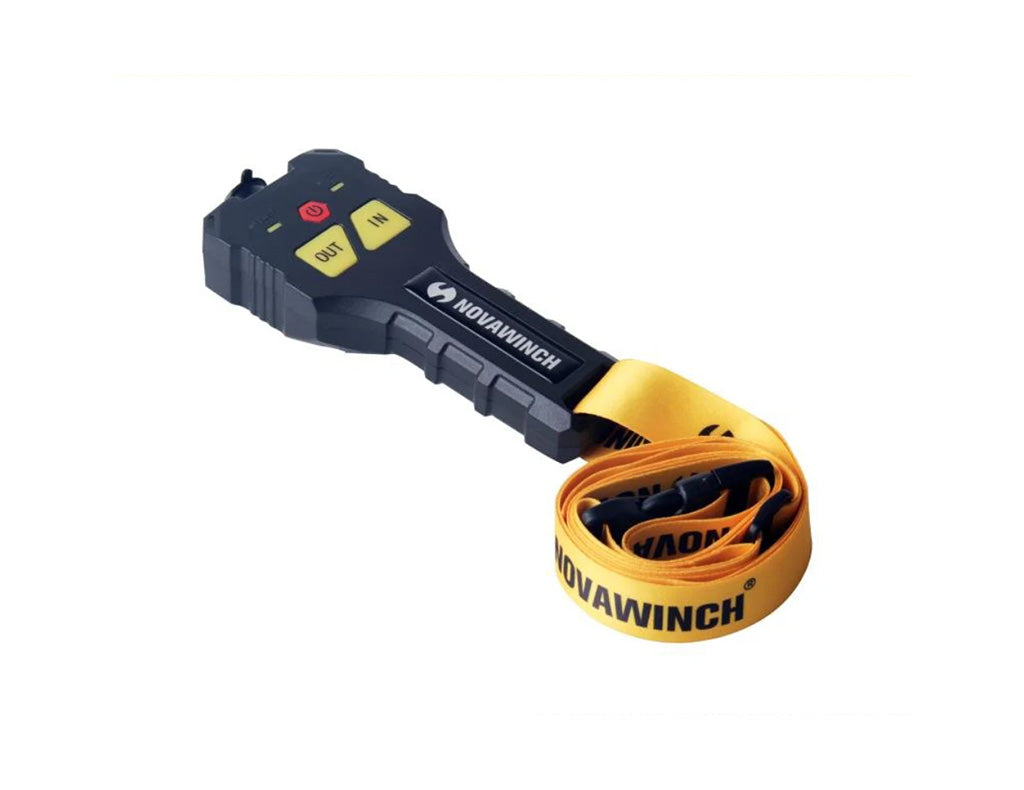

- DUO Wireless/Wired controller with integrated receiver
- Fairlead
- Synthetic rope
- Winch hook

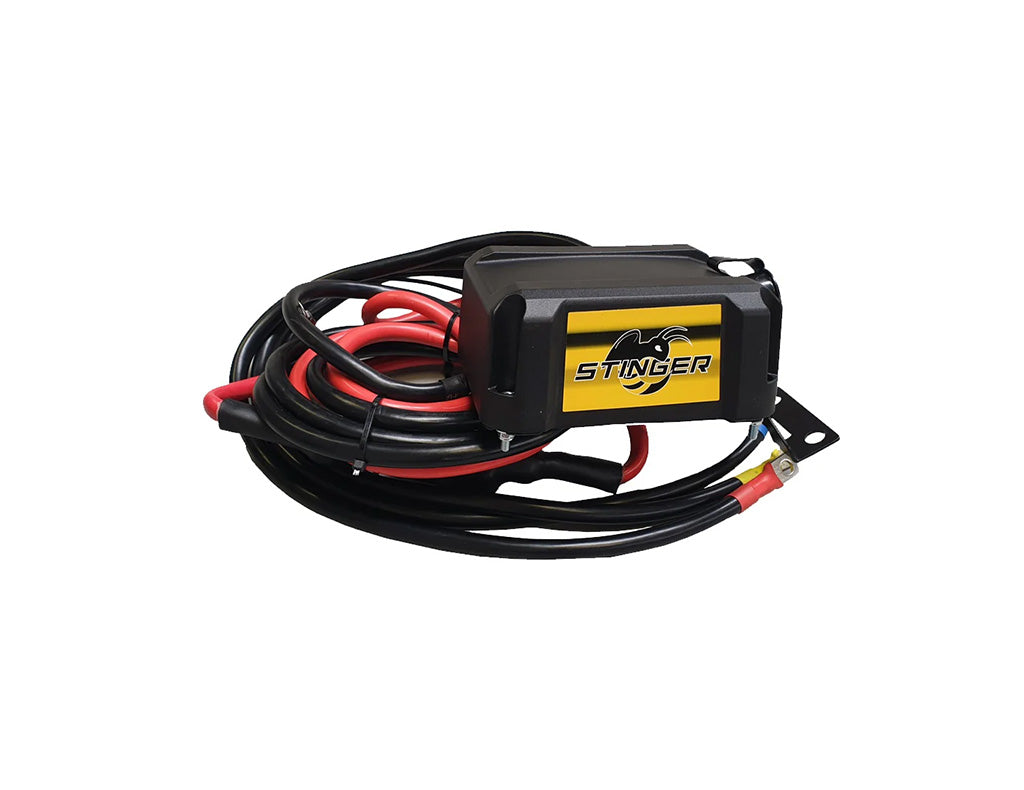

- Solenoid enclosure with wiring to suit mounting to the winch tie bars
- Ancillary - Solenoid enclosure remote mounting bracket kit - includes solenoid enclosure remote mounting bracket and 740mm long remote mount power leads
- Mounting hardware
Details:
- A new standard in 4WD and general purpose winches, the Novawinch is great value for money.
- Free spool handle can be rotated to suit mounting.
- Longer, 800mm long solenoid control box lead allows greater installation versatility.
- Solenoid enclosure can be remote-mounted or mounted to the winch tie bars.
- High Torque Motor - Thicker copper windings deliver more power with ease and cool faster. Ultra-heavy-duty silver contacts keep the Novawinch contactor running at lower temperatures.
- Drive - Large-diameter splined drum to maximise power-transfer.
- Novawinch dual function wireless/wired controller offers remote push-button control of winch operation.
- Winch Rope - High-visibility rope makes rigging safer in low-light operations.
- Weatherproofing - The IP68-rated seals keep out water, mud, sand and dust.
- For more tech specs please click HERE
Specifications:
Rated line pull: 12000lbs (5448kg) single line.
Motor(Series wound): 12V DC with 5.3hp/3.95kW, 24V DC with 7hp/5.4kW.
Gear train: 3 stage gear-driven.
Gear ratio: 196:1.
Clutch: Pull and turn.
Braking action: Mechanical, Automatic load holding.
Rope: 9mm × 26 meters.
Drum size:2.48"×8.8"(63mm×224mm)
Dimensions: 548mm × 158mm × 270mm (21.57" × 6.2" × 10.63").
Bolt pattern: 254mm × 114.3mm (10" × 4.5").
