Profender Basic MG Lift Kit to suit Mitsubishi Triton MQ/MR 2015-2023

Name: Profender Basic MG Lift Kit to suit Mitsubishi Triton MQ/MR 2015-2023
Brand: KITHEADER
SKU: MQMR-B-MG-1
Price: 1530.0 NZD
Availability: InStock

MQMR-B-MG-1

Select your lift amount:

30mm Lift

Select your load rating:

0-60Kg (Comfort Option) 70-100Kg (Comfort Option)

Select your upper control arms add-on:

No - Do Not Add Upper Control Arms Yes - Add Upper Control Arms

Low stock

$1,530.00

$1,530.00 ~~$0.00~~

Tax included. Shipping calculated at checkout.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift or bull bar install, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
COMPONENTS
EXTRAS
Included Spring Seat Spacers

DETAILS

Profender Basic MG Lift Kit to suit Mitsubishi Triton MQ/MR 2015-2023

We HIGHLY recommend installing Upper Control Arms even when lifting your vehicle 30mm.

Due to the limitations of the suspension geometry on these vehicles, if you are lifting your Triton to 50mm you MUST fit Upper Control Arms to allow correct droop travel.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Triton
Model: MQ/MR
Year: 03/2015 - 2023
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 30mm Lift
Rear Lift: 25mm Lift
Detail:
- Monotube Internal Reservoir Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

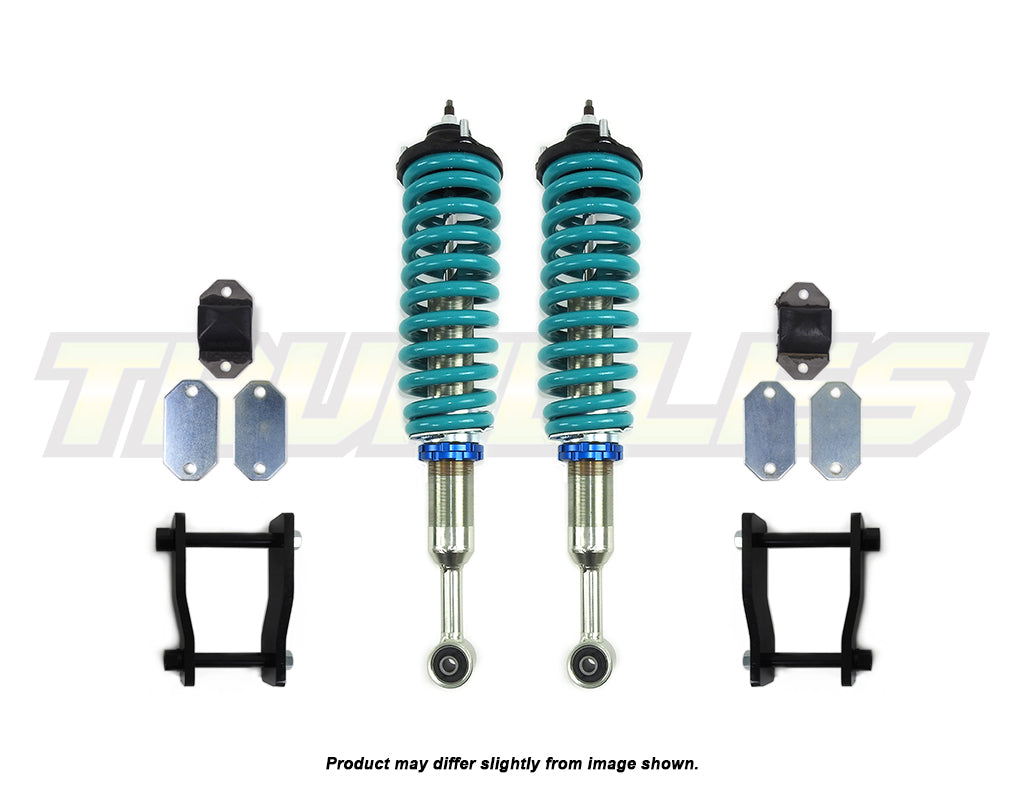

COMPONENTS

Front:
2x Profender MG Front Shocks - MG-4686A50
1x Pair Dobinsons Springs
2x Trundles Strut Top Mounts - TOP5
1x Top Out Stop Kit - WA43-539K - If not adding Upper Control Arms

Rear:
1x Trundles 25mm Extended Shackle Kit - EXTSH-22

EXTRAS

Trundles Upper Control Arms Set - UCA4729Q - Please use Drop-Down Menu to add Upper Control Arms

Included Spring Seat Spacers

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
