Profender Front Shock Absorbers (Pair) with 4-Stage Damping to suit Toyota Hilux Surf / 4Runner 185 Series 1996-2003

Profender Front Shock Absorbers (Pair) with 4-Stage Damping to suit Toyota Hilux Surf / 4Runner 185 Series 1996-2003

NOTE: These shocks have 4-Stage Adjustable Damping and are fixed height only.

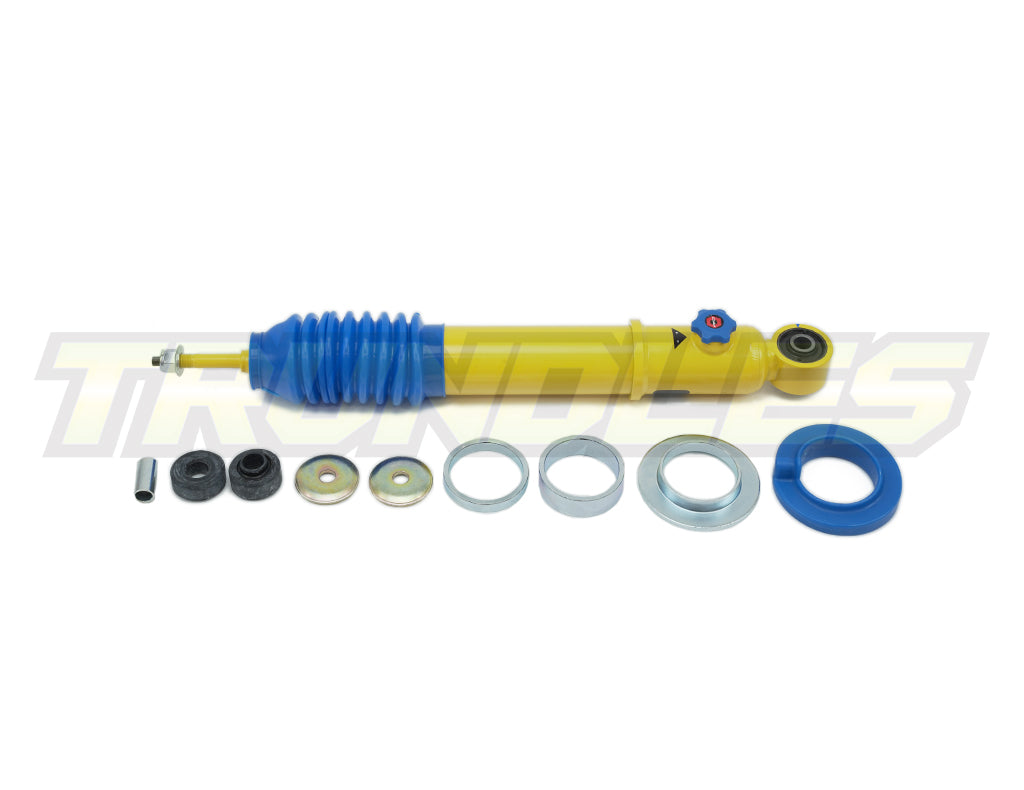

Includes:
2x Profender Front Shock Absorbers - PAG-6607A50
4x Spring Seat Spacers - see below "Included Spring Seat Spacers" section for more details
2x Removable Spring Seats

Details:
- Twin tube design with a 35mm piston and a 18mm shaft that provides excellent performance, and is designed to give a more comfortable and improved ride.

- 4-Stage damper adjustability for fine tuning of the ride

- Low pressure Nitrogen Gas prevents cavitation of oil inside the shock when it heats up during use over rough roads; this allows the shocks to work more consistently.

- The piston has a Teflon coating allowing it to slide more smoothly and last longer.

- Highly polished Chrome shaft ensures long shaft life.

- The shock absorber velocity sensing valve can accurately control the required damping force for different conditions.

- High quality seals are designed to protect against oil leaks and perform very well even in dusty and dirty conditions.

- Sold as a Pair

Extended & Compressed Lengths:
- Extended Length - 470mm (Pin Base to Eye Centre)
- Compressed Length - 335mm (Pin Base to Eye Centre)
- Stroke: 130mm

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
