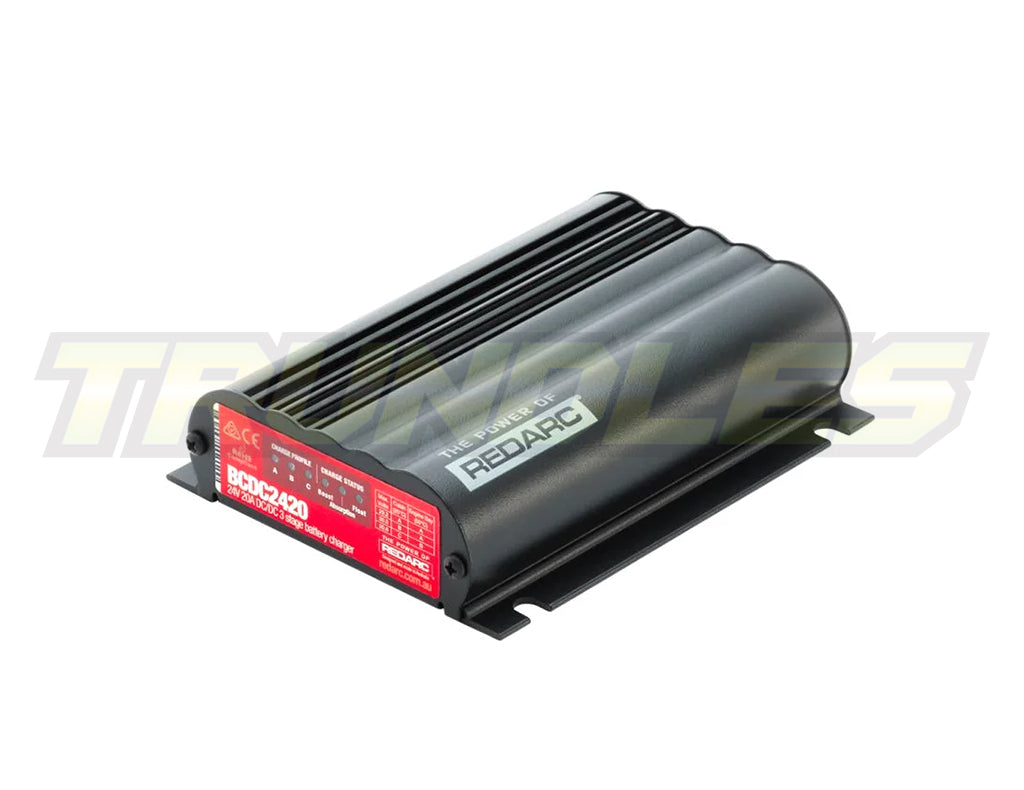

RedArc 24V 20A Low Voltage In-Vehicle DC Battery Charger
- Price
- $952
- DETAILS
RedArc 24V 20A Low Voltage In-Vehicle DC Battery Charger
Includes:
1x Low Voltage In-Vehicle DC Battery Charger - BCDC2420-LV
Details:
The BCDC2420-LV is a 24 Volt 20 Amp low voltage In-vehicle DC Charger featuring technology designed to charge all major lead acid batteries to a proven 100%. It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator.
The REDARC BCDC2420-LV Low Voltage In-vehicle battery charger is a three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge AGM, gel, VRLA and standard lead acid automotive 24V battery systems to an optimal level with chemistry specific battery charging algorithms.
The BCDC2420-LV features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The BCDC2420-LV features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Features
- Multi Stage DC to DC Battery Charger
- MPPT Solar Regulator
- Start Battery Isolator
- Fully sealed
- No fan for super quiet operation
- Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
Specifications
Input (Operating) Voltage: 9 - 32VDC
Maximum Charging Voltage: 30.6V
Output System Voltage: 24VDC
Output Current Rating (Cont.): 20A
Output Power: 600W
Input Fuse Rating: 50A
Output Fuse Rating: 30A
Warranty: 2 Years
Standby Current Draw: <50mA
Length (mm): 150
Width (mm): 120
Height (mm): 37
Weight (kg): 0.68
Type Approval: E and CE
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
