Shan Motorsport HeX Sprayer Quad Nozzle Rail Kit
Includes:
1x HeX Sprayer Quad Nozzle Rail Kit - SM-HEXSPRAYER-QUADNOZ
Details:
- The HeX Sprayer consists of a quad nozzle water rail that when fed with a pressurised water feed, sprays a mist of water that cools the surface of an intercooler or any heat exchanger.

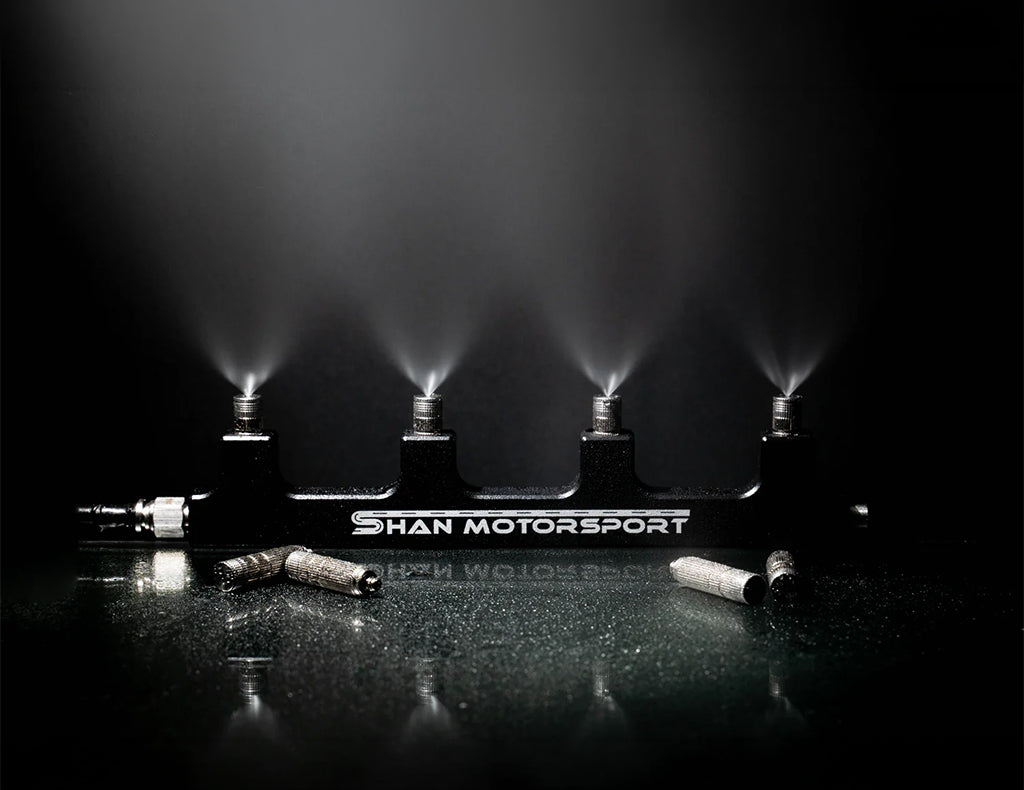

- Wide Spray Pattern - The rail contains four misting nozzles, each with a spray angle of 90-100°, allowing for wide coverage, making it suitable for both smaller OEM and wider aftermarket intercoolers and heat exchangers.
- Compact in Size - With 2 different variants, single and quad nozzle bodies, our HeX Sprayer can be fitted in compact areas with tight space constraints.
- High Atomisation - Our high pressure pump allows for a highly atomised mist, allowing a faster rate of evaporation, leading to faster drops in temperature. Our 1.0mm nozzles ensure that there is enough water to dissipate large quantities of heat energy.
- Minimise Drips - Each nozzle is equipped with an anti drip spring valve that opens and closes the nozzle under pressure. This improves pressure build up, and minimises water droplet formation on activation and leakage on deactivation.
- High Efficiency - By utilising a balance of high pressure and carefully chosen nozzles, our system uses between 400-500 ml of liquid per minute (single rail system).
- Trusted Reliability - Used and trusted by several individuals and race teams under street, and timed/competition conditions.
- Every single component of the HeX sprayer has been through rigorous stress and field testing to ensure they can perform in even the harshest of conditions.
- Expandability - The HeX Sprayer rails can be connected together by purchasing additional rails. This allows you to run multiple rails to cool for high boost/high power, or to cool multiple heat exchangers in your car, like an intercooler and oil cooler.

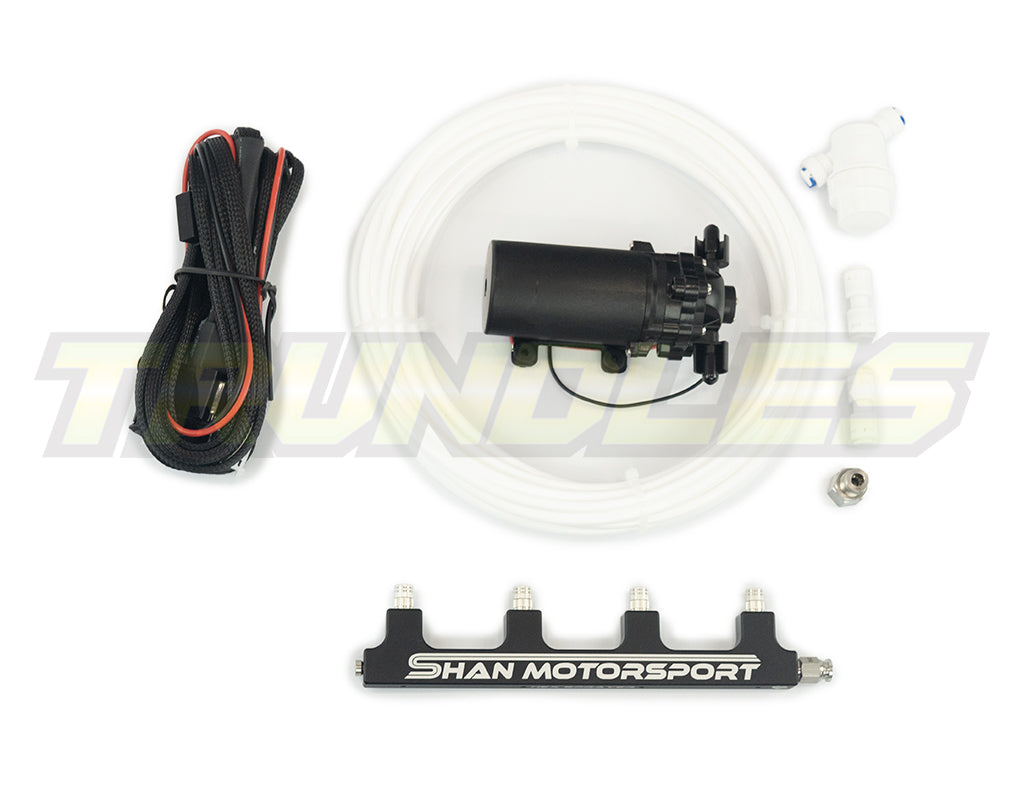

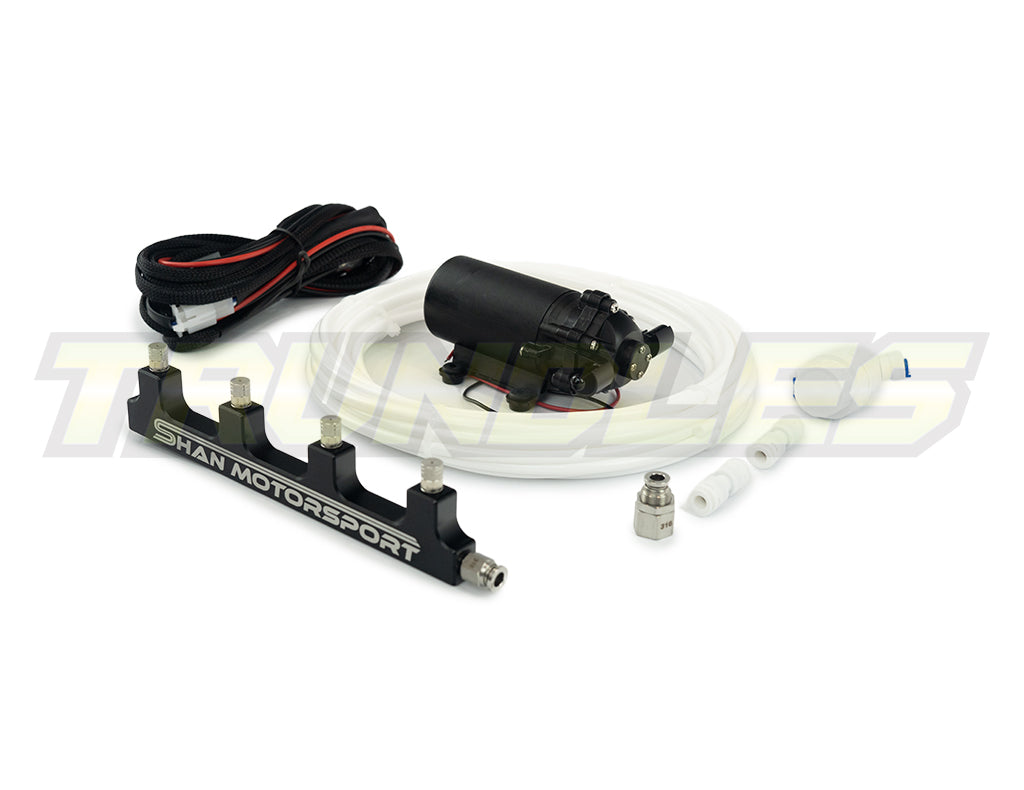

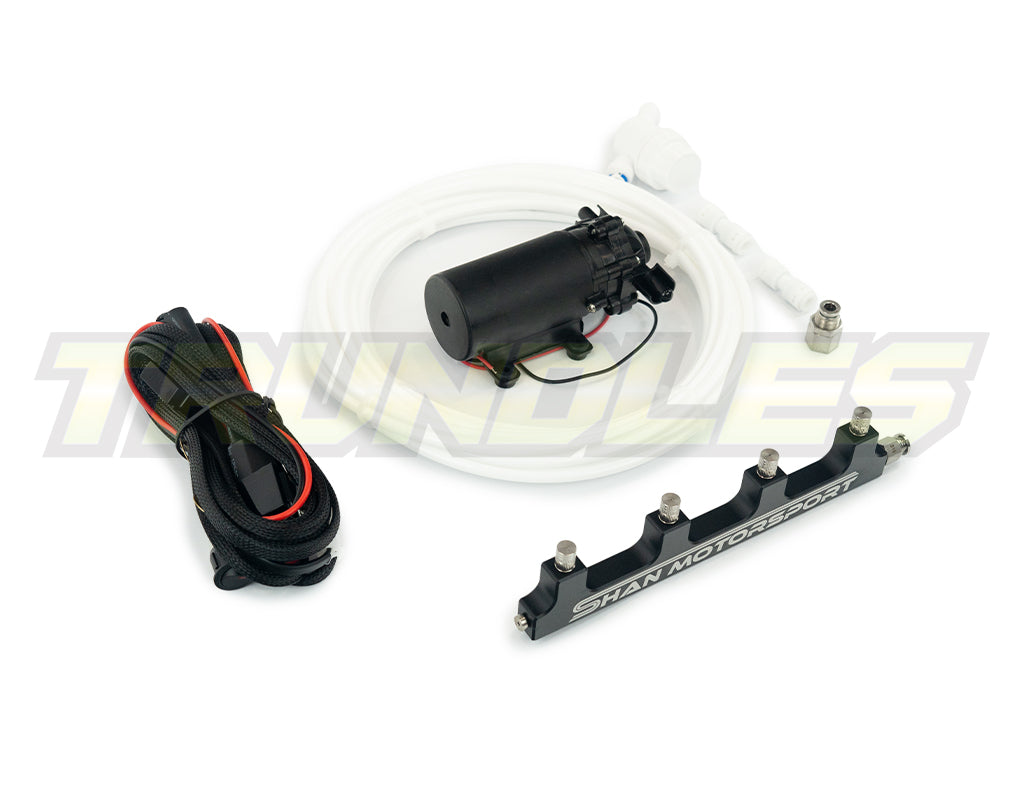

What's Included?
- HeX Sprayer Rail
- 12VDC Diaphragm Water Pump (Supplies up to 2-3 Rails)
- Electrical Harness with Relay and Rocker Switch
- High pressure tubing - 10 Meters
- Bulkhead Fitting for External Tank
- Inline filter (Tank - Pump)
Installation
Basic mechanical tools are required for installation. Specialised tooling may be necessary to remove panels and bumpers, consult your mechanic or service manual.
The installation involves electrical work. Ensure that all necessary precautions are taken when making electrical connections. Electrical contact with water can cause fire and short circuiting, even with the presence of fuses and circuit breakers.
A tank must be purchased separately.
Professional installation is highly recommended.
Installation Guide can be downloaded using the link below.
Hex Sprayer Installation Instructions
Compatibility:
All heat exchanger and intercooler equipped cars , trucks and motorbikes. Installation kit compatible with 12-14v electrical systems.
Bulkhead fitting for water supply can be used on both plastic and metal tanks. An appropriate gasket or washer will be required to make a seal based on your chosen tank.
