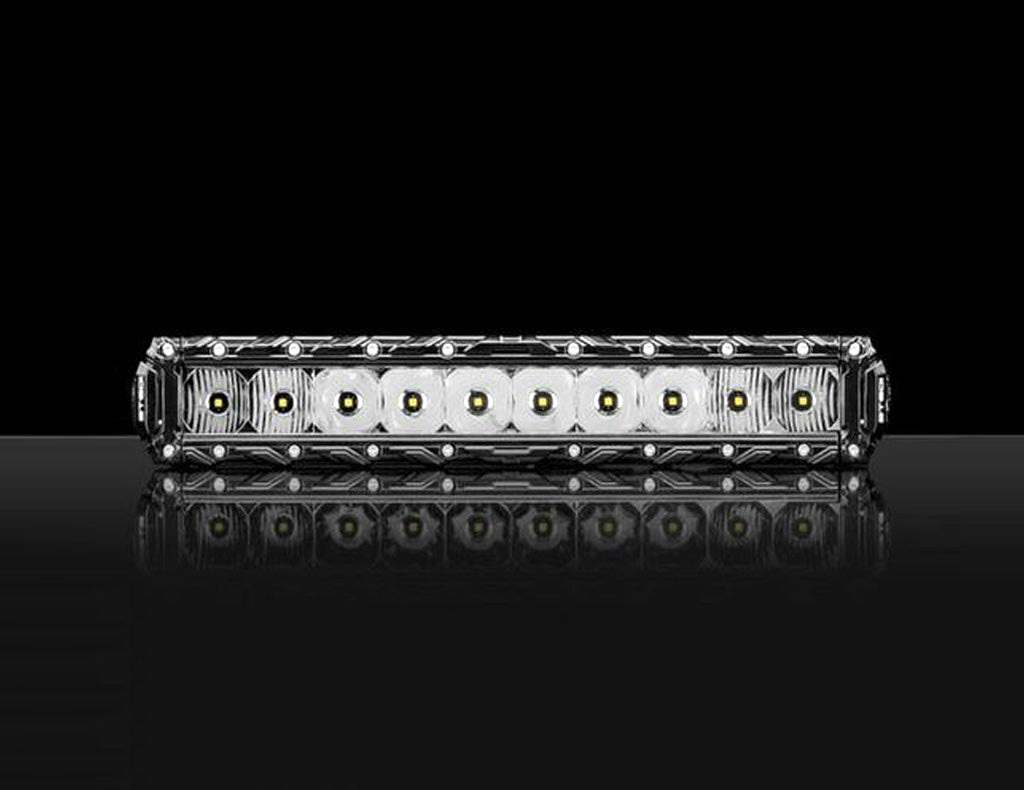

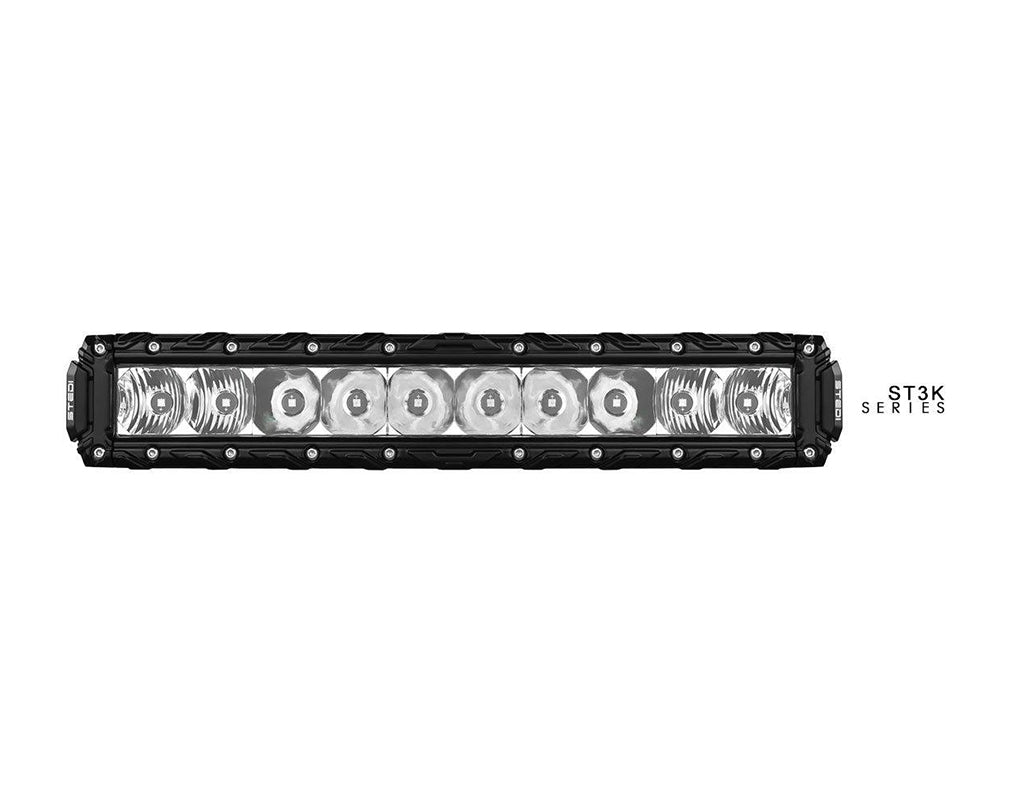

STEDI 11.5" 10 LED Slim Light Bar
Includes:
- ST3K 11.5 inch LED LIGHT BAR
- Low Profile Stainless Side Brackets
- Stainless Fasteners
- DT Wire Tail
Details:
- ST3K-10L features 10 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
- 2 Flood + 6 Spot + 2 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 348m
- True White 5700K Colour temperature offers stunning clarity and definition.
- Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
- Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
- Pressure Equalization vent | Protects against water ingress, dust & contaminants.
- IP68 | Dust & Particle tight + Water-proof up to 3 meters!
- Environmentally sealed Deutsch DT-2 connector.
- Protected against EMC and RFI.

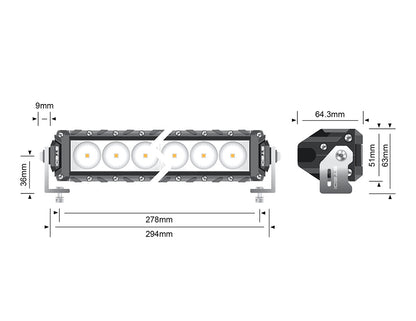

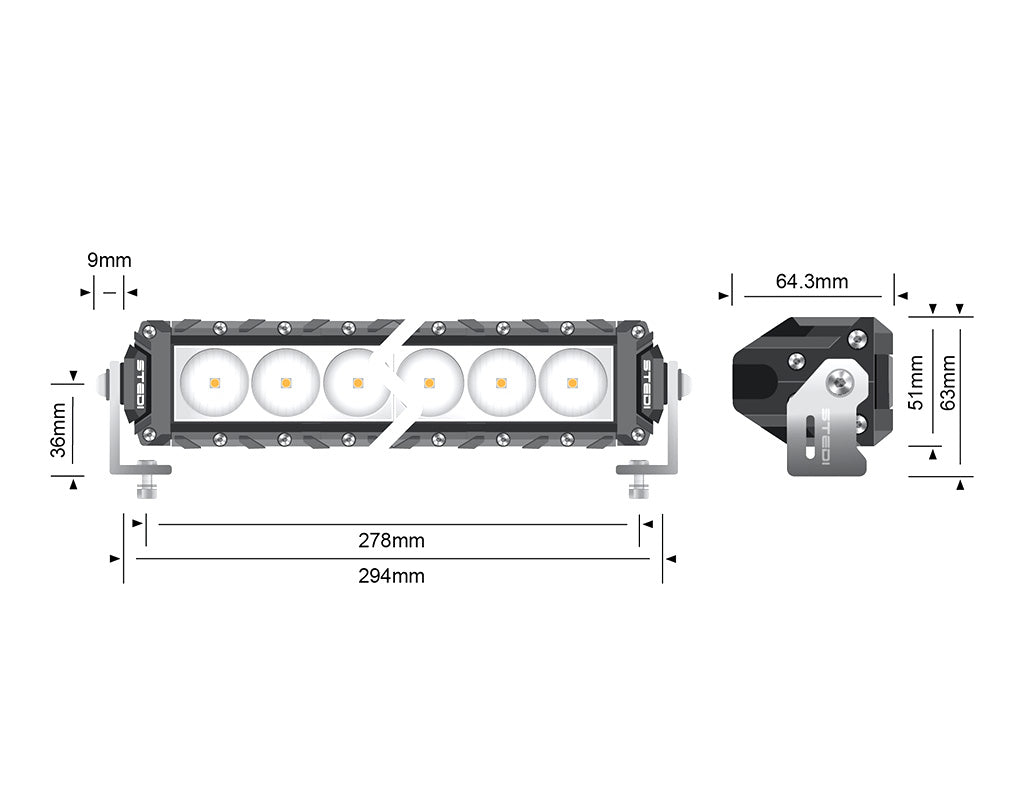

- Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!
- Backed by a 5 Year Replacement Warranty.
Tech Specs:
LED: 10 x Osram Oslon White
Effective Lumen: 2,050Lm
Peak Intensity (Candela): 121,600cd
Operating Voltage: 10-30V DC
IP Rating: IP68
Current Draw: 2.1A @ 13.6v
Colour Temperature (CCT): 5700 Kelvin
Housing Material: Aluminium Extrusion & Cast
Lens: GE™ Lexan
Mounting Bracket: Powder Coated 3mm Stainless Steel
Bolts and Fittings: 3 Series Stainless Steel
Beam Type: Flood Spot Combo
Life Span: 50,000 Hours
Weight: 1.650
Operating Environment: -40 - +50° Celsius
Photometric Data
10m: 1,211 Lx
50m: 48 Lx
100m: 12 Lx
200m: 3 Lx
348m: 1 Lx
