STEDI LED Lightbar Double Row 12" 20 LED

Price
$225
Only 2 left in stock!

STEDI LED Lightbar Double Row 12" 20 LED

Includes:
1 x 12 inch 20 LED STEDI Oslon LED Light Bar
2 x Brushed Stainless Steel Side Brackets
2 x Adjustable Sliding Brackets
Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.

Details:

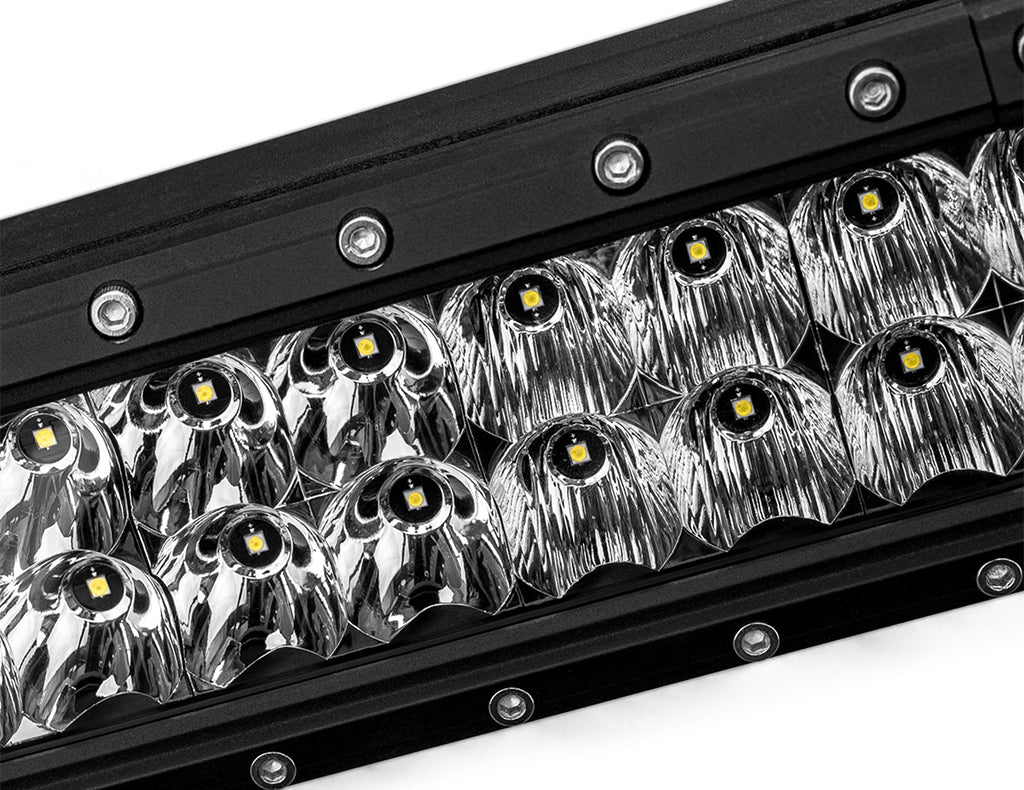

- STEDI ST4K-20 features 20 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

- 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m

- Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

- Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

- A360.0 Cast face plate, extruded Aluminum heat sinkg | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

- Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

- IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!

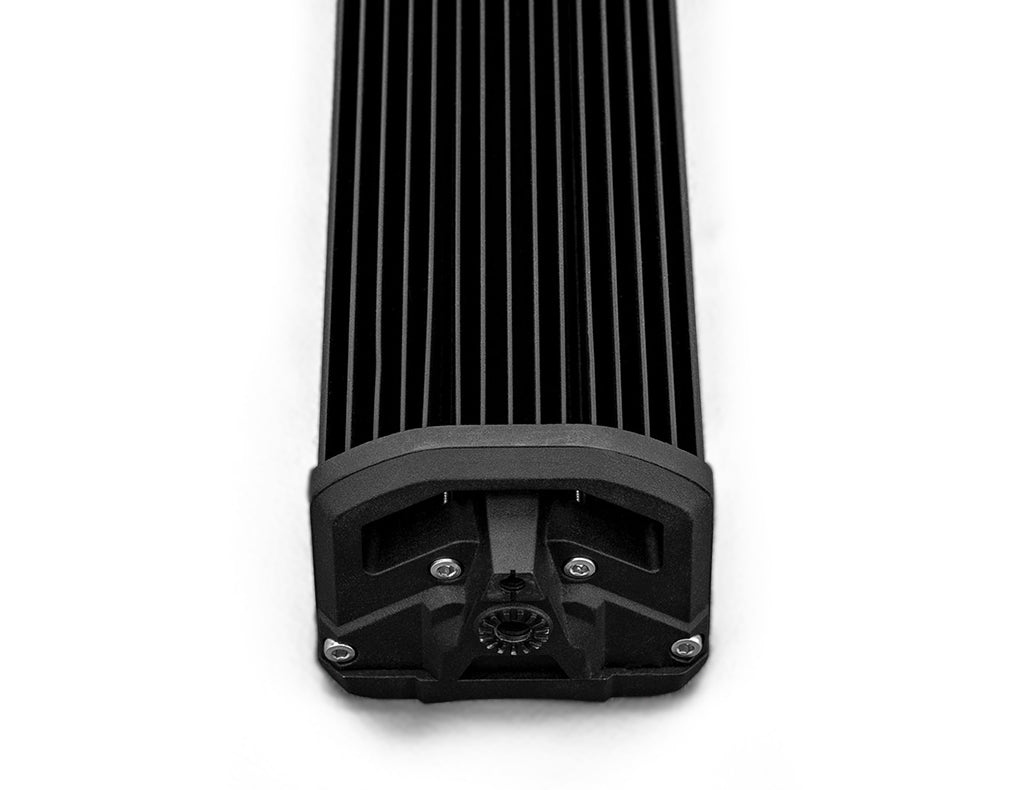

- Environmentally sealed Deutsch ® DT connector.

- Backed by our no nonsense 5-year replacement warranty.

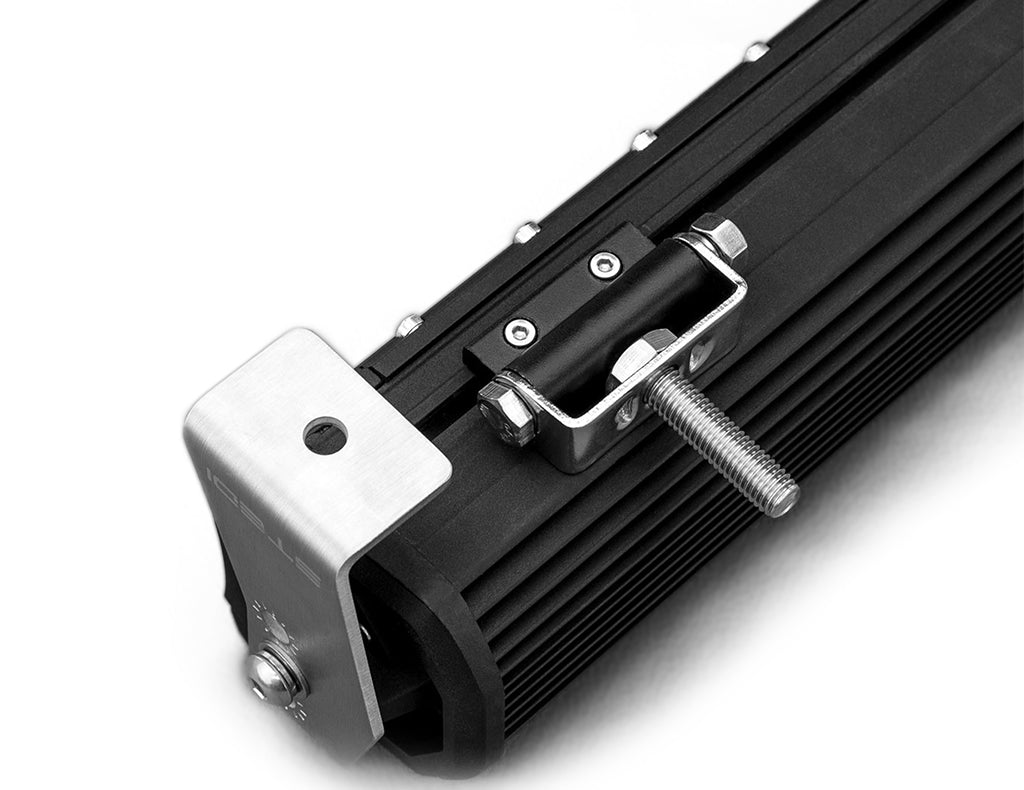

- The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.

- Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

- Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsover.

- No nonsense 5 Year Replacement Warranty backed by an Australian company with bricks & mortar presence.

Tech Specs:
LED Manufacturer: OSRAM (Oslon)®
LED Count: 20
Voltage: 12V & 24V
Lens Material: Optical Grade, Hard Coated Lexan
Lumens: 4,800 LUMENS
Peak Intensity (Candela): 220,800cd
Housing Material: A360.0 Cast face plate, extruded Aluminum heat sink
Amperes: 4.2A @ 13.6v
Lifespan: 50,000
Flood Beam: 50°
Spot Beam: 5.8°
Ingress Protection: IP68
Operating Temp: -40°C to 60°C
Weight: 1.610kg

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
