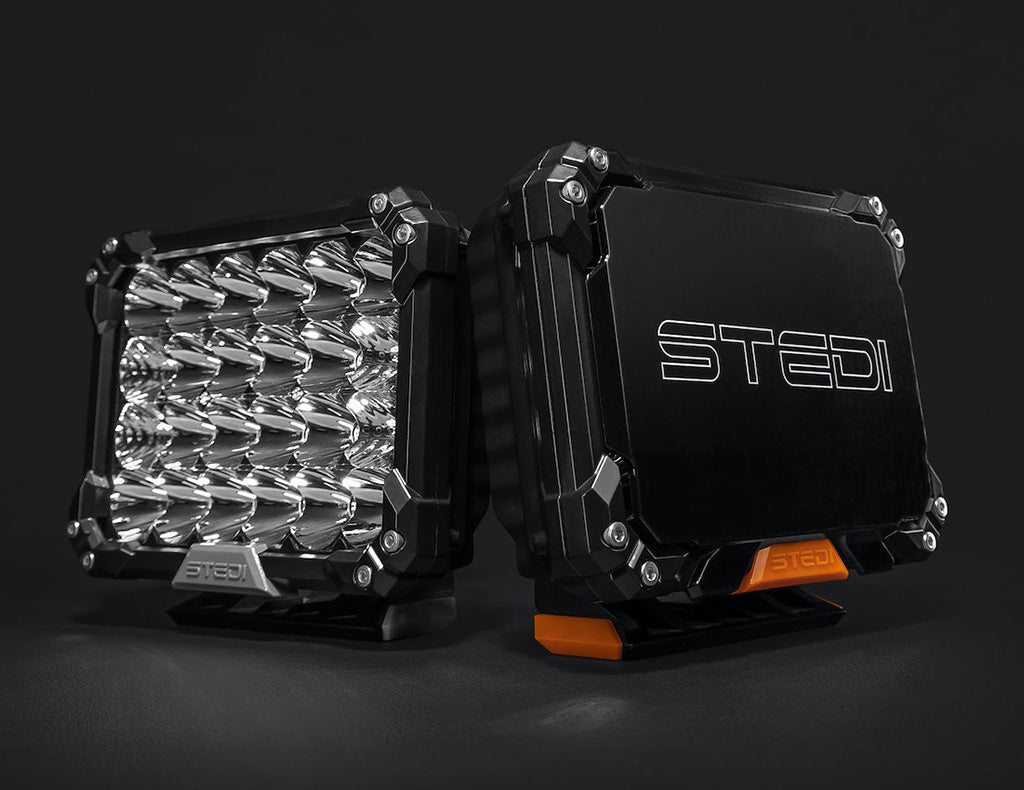

STEDI Quad Pro LED Driving Lights
Includes:
2 x QUAD Pro LED Spot Lights
2 x STENCIL Black Out Covers
1 x Set Orange Colour Caps (fitted)
1 x Set Grey Colour Caps
Easy Fit High Beam Wiring Harness
H4 & HB3 adapters to High Beam
Installation Manual
Stainless fitting hardware
Details:
- The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
- Includes our legendary Easy-Fit plug and play high beam wiring harness
- IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
- 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
- Environmentally sealed Deutsch DT connectors
- RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.
- High-Pressure Die-Cast Bracket
- Spread and Spot beam reflectors built-in.
Tech Specs:
LED: 24 x Oslon High-Flux LED
Raw Lumens: 17,040 (Pair)
Tested Lumens: 11,360 (Pair)
Amp Draw: 7.4A @ 13.2v (each)
Power Draw: 97W (each)
Candela: 693,889cd
Beam Pattern: 4 x Spread 20 x Pencil Beam
Ingress Protection: IP68 | Submersible up to 3m
Colour Temp (CCT): 5700K
Voltage Compatibility: 12v & 24v
Lumen Maintenance: 50,000 LM-80
Weight: 1.4Kg (Including cover) (each)
Photometric Data
10m: 6,938 Lx
50m: 277 Lx
200m: 17 Lx
300m: 7.7 Lx
400m: 4 Lx
500m: 2.7 Lx
833m: 1 Lx
