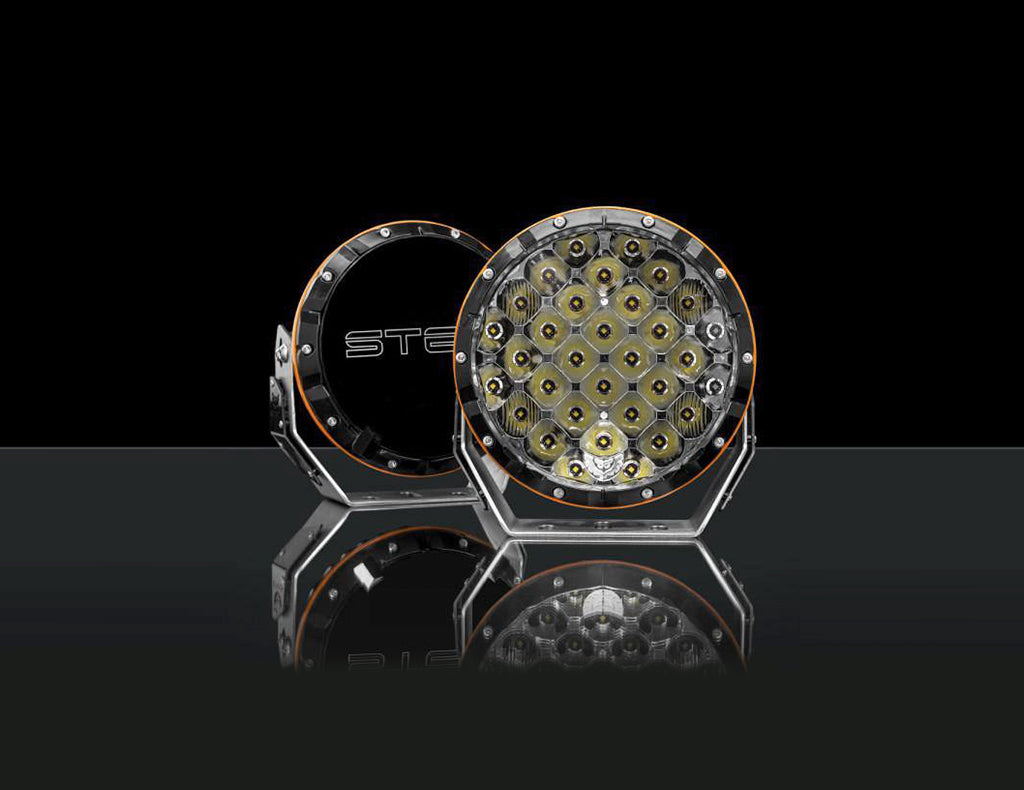

STEDI Type-X Sport 7" LED Driving Lights - Pair
- Price
- $620
STEDI Type-X Sport 7" LED Driving Lights - Pair
Our Type-X LED Driving Lights are the very best representation of our brands' spirit and culture. The performance & quality surpasses that of the most respected players in the industry.
Includes:
2 x STEDI 7" TYPE-X Sport
2 x STEDI Black Out Covers
1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
3 Series Stainless Steel Nuts and Bolts
Rubber Shock Dampener
Wiring Instructions
Details:

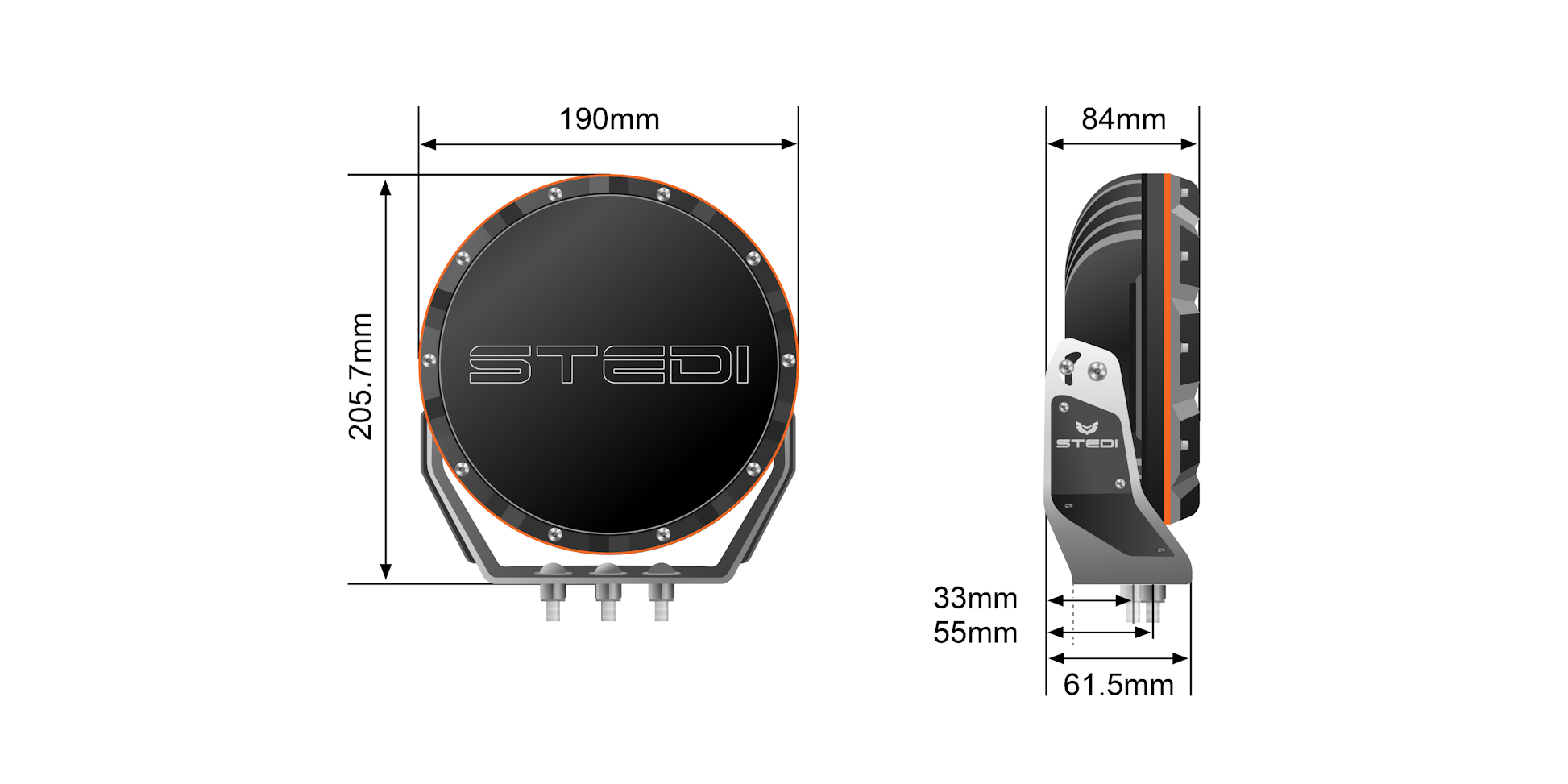

- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
- Environmentally Sealed Deutsch® DT-2 connector
- EMI & RFI Suppression circuitry – We guarantee it.
- Each 7" TYPE-X Sport comprises 32 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
- 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
Tech Specs:
LED: 32x Osram Oslon SSL
Raw Lumens: 16,640 (Pair)
Tested Lumens: 12,820 (Pair)
Amp Draw: 6.4A @ 13.2V (Each)
Power Draw: 85W
Candela: 819,200CD
Beam Pattern: 4x Spread 28x Spot Beam
Ingress Protection: IP68 | Submersible up to 3m
Colour Temp (CCT): 5700K
Voltage Compatibility: 12V & 24V
Lumen Maintenance: 50,000 LM-80
Weight: 2.250Kg (each)
Operating Temp: -40°C - 60°C

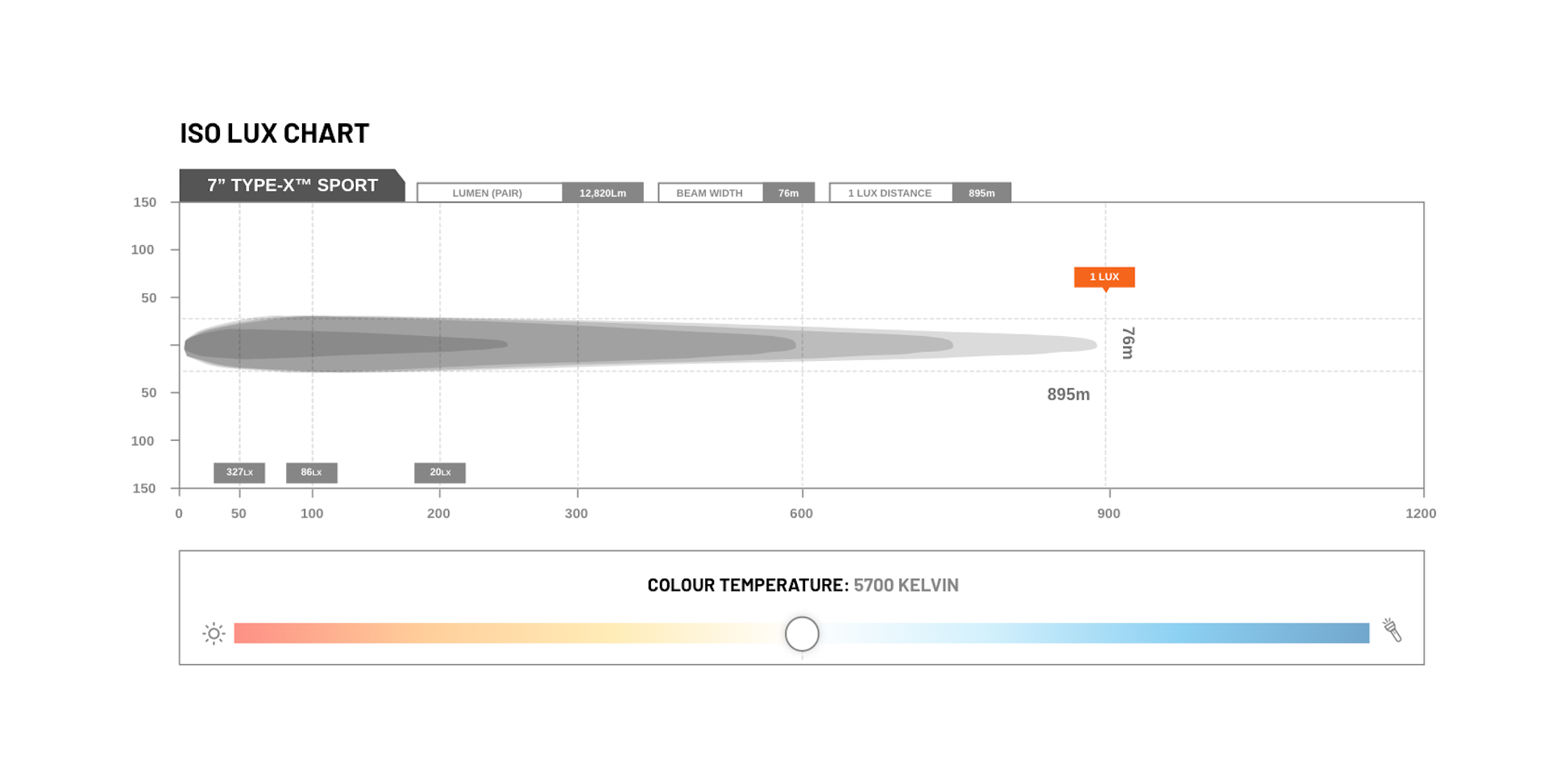

Photometric Data
10M: 8,129L
50M: 327 Lx
200M: 20 Lx
300M: 9 Lx
400M: 5 Lx
895M: 1 Lx
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
