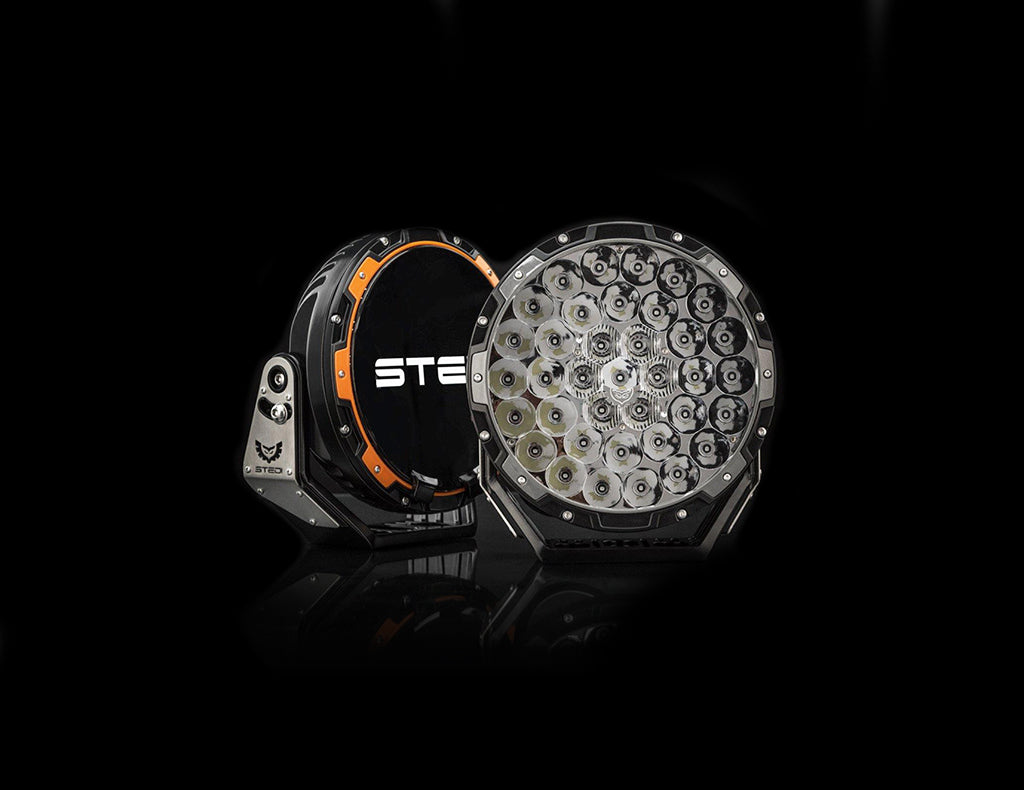

Stedi Type-X PRO LED Driving Lights - Pair
Includes:
2 x STEDI Type-X PRO LED Driving Lights
2 x Protective STEDI Black Out Covers
2 x Grey Colour Rings
2 x Orange Coloured Rings
1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
Complete Stainless Steel fastener kit.
Wiring & Fitting Instructions
Raw Lumens: 26,270 (Pair)
Tested Lumens: 15,870 (Pair)
Amp Draw: 10.4A @ 13.2v (each)
Power Draw: 137W
Candela: 1,334,025cd
Beam Pattern: 6 x 50° Spread, 31 x 5.8° Pencil Beam
Ingress Protection: IP68 | Submersible up to 3m
Colour Temp: (CCT) 5700K
Voltage Compatibility: 12v & 24v
Lumen Maintenance: 50,000 LM-80
Weight: 2.860kg (each)
Operating Tempterature: -40°C to 60°C
Photometric Data:
10m: 13,340 Lx
50m: 533 Lx
200m: 33 Lx
300m: 14 Lx
400m: 8 Lx
1,000m: 1.3 Lx
1,155m: 1 Lx
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
