Stedi Universal Type A LED Fog Light with DRL Conversion Kit

ST-43-FGL-001

Pre-Order
$219.00
$219.00 $0.00
Tax included. Shipping calculated at checkout.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

DETAILS

Stedi Universal Type A LED Fog Light with DRL Conversion Kit

Includes:

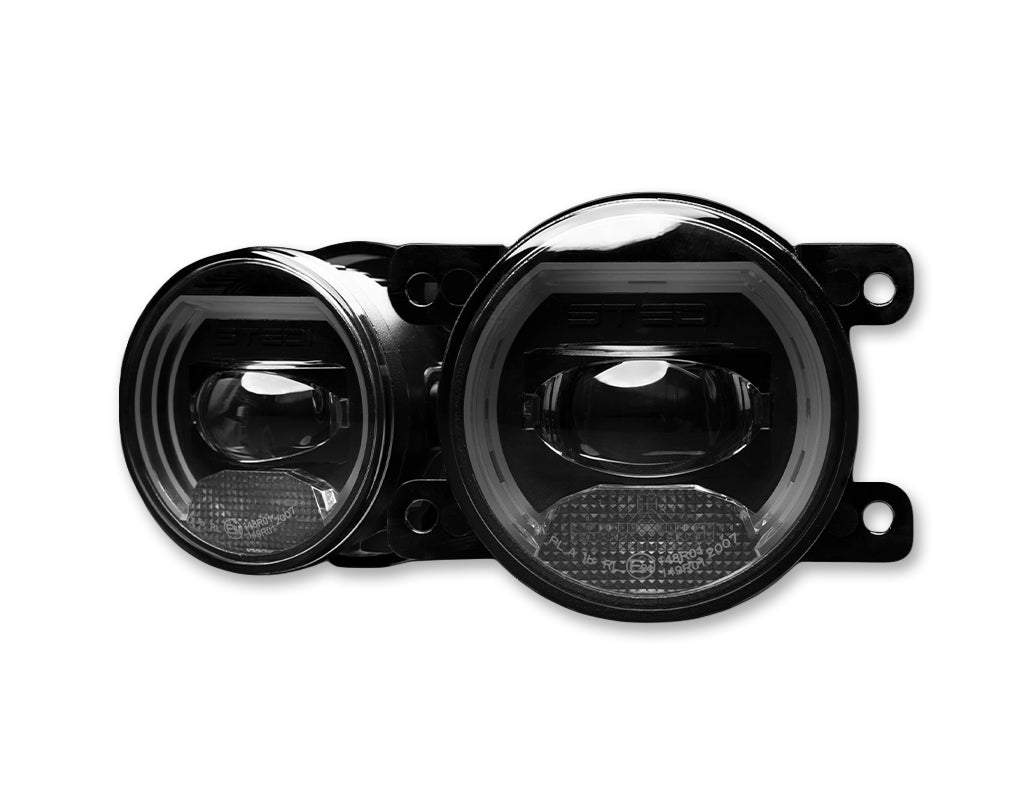

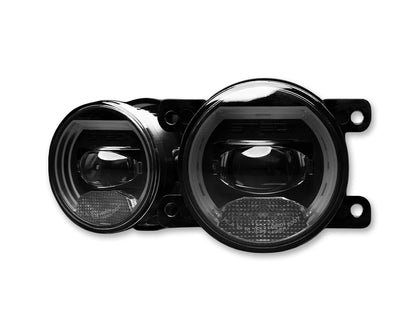

2 x STEDI Universal Type A LED Fog Lights

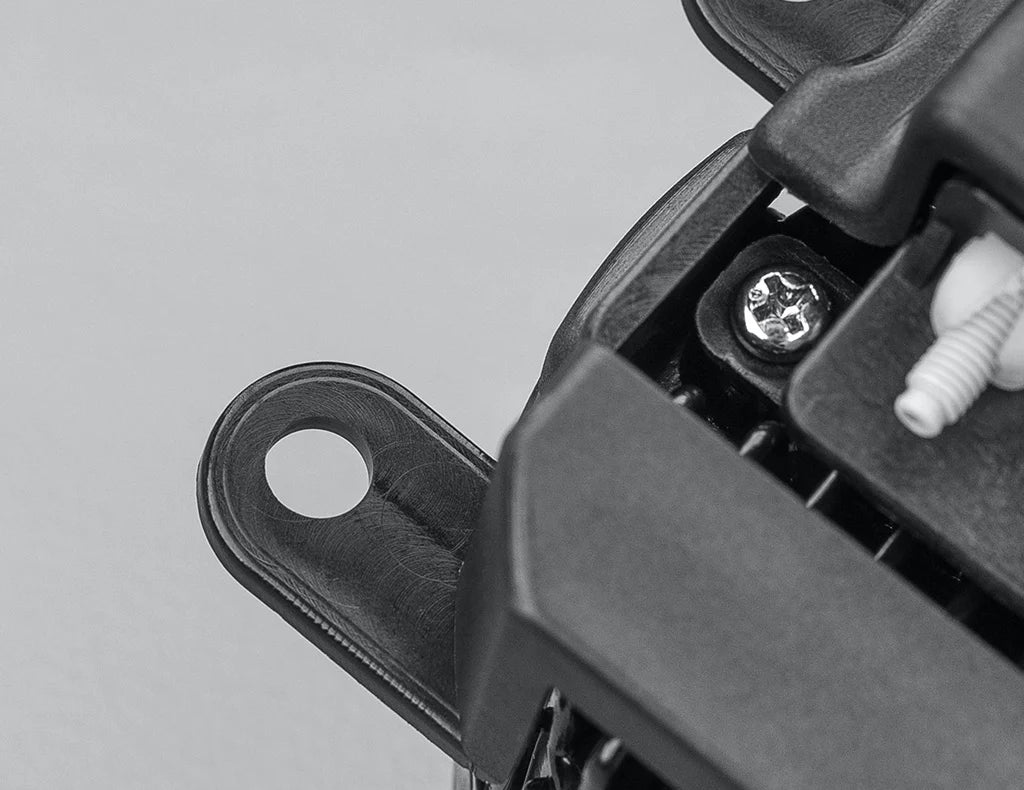

2 x Type A Mounting Brackets

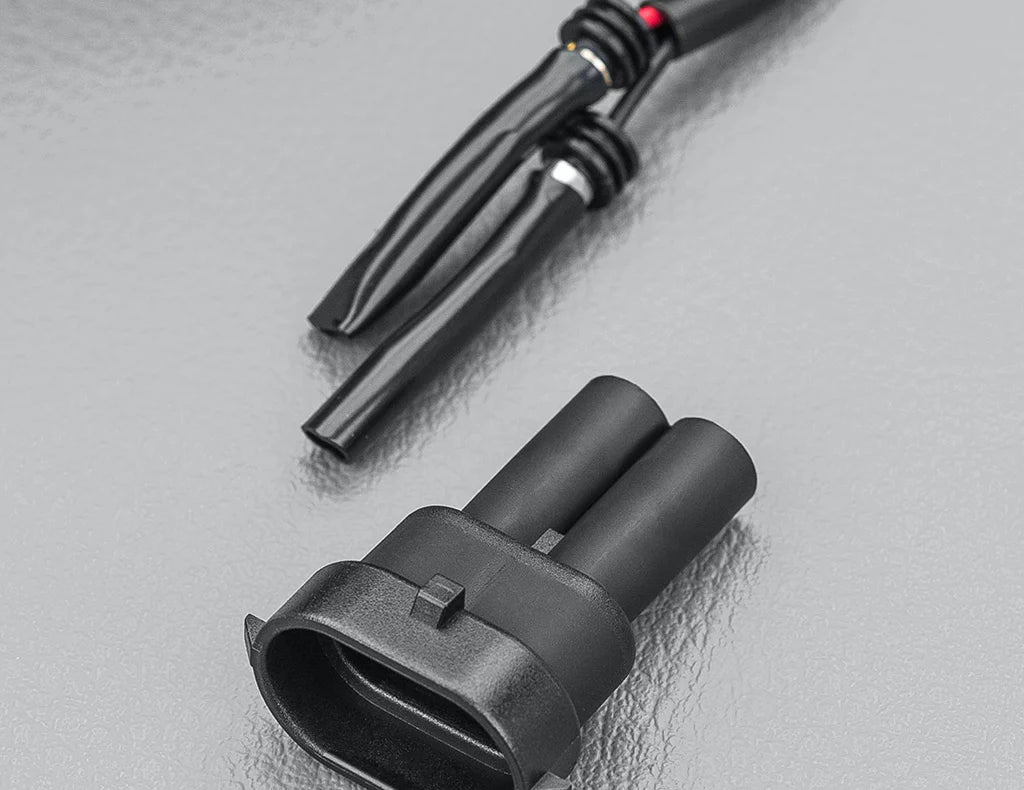

2 x H11 Connectors
Mounting Hardware Included

Details:

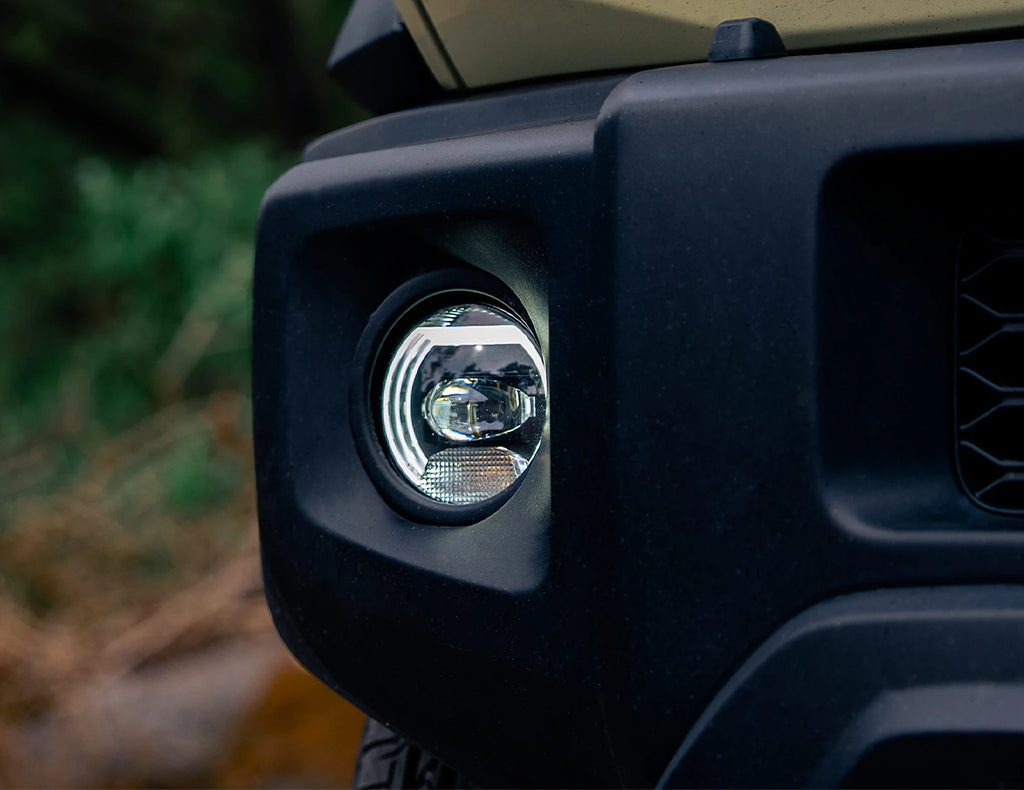

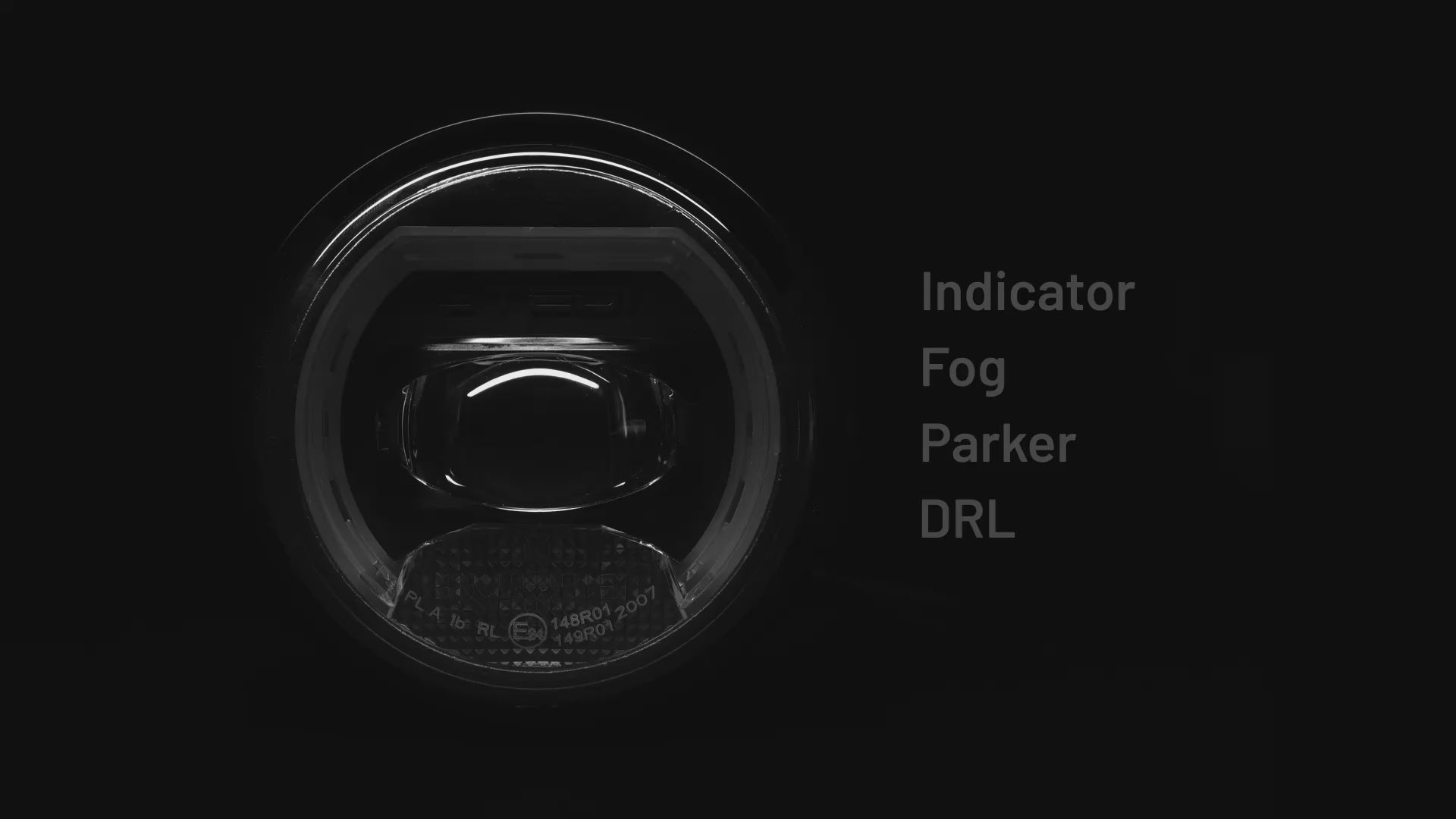

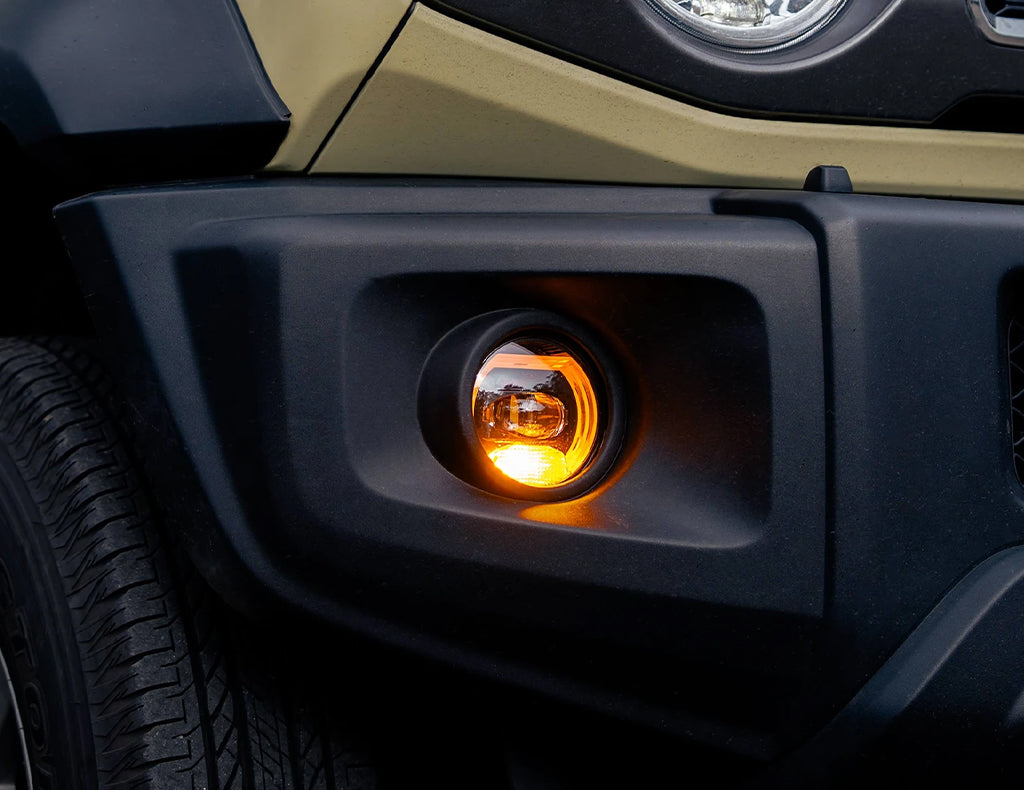

- Upgrade compatible factory fog lights with a premium OEM-style LED replacement featuring an integrated fog light, daytime running light, parker and amber indicator.
- The projector lens produces a flat, extremely wide fog beam with a controlled cut-off, improving visibility through fog, rain and dust.

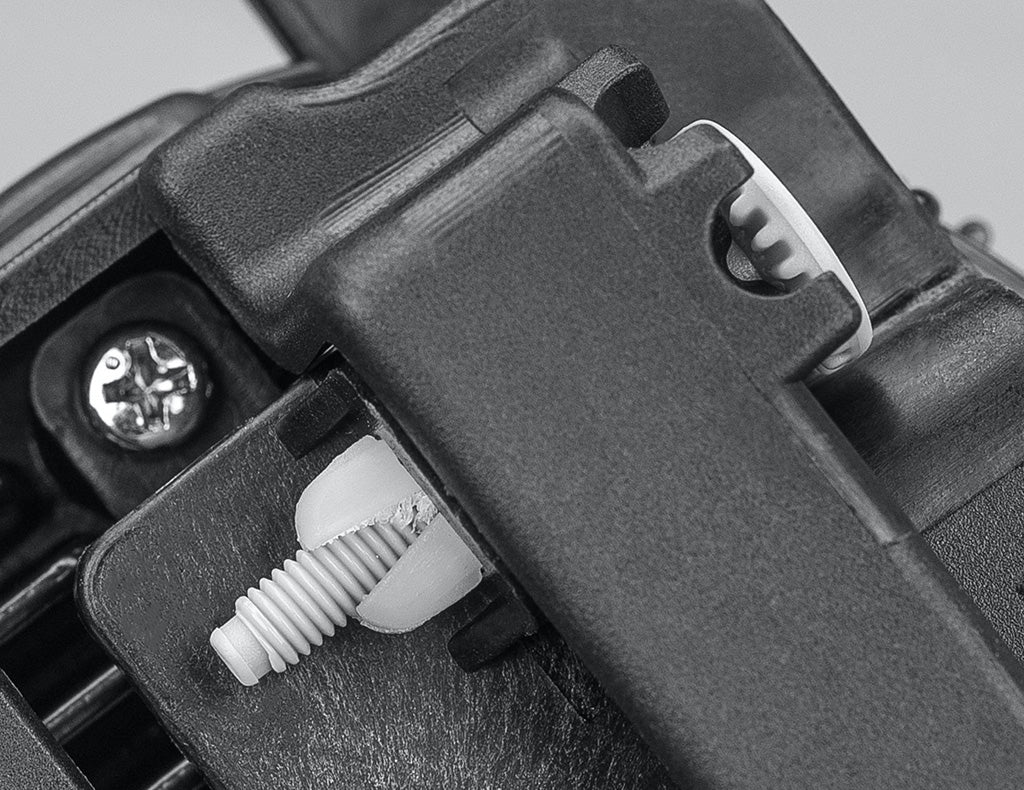

- The Type A brackets use compatible factory mounting points in the front bumper for a clean, secure installation.
- ADR compliant and designed for both on-road and off-road use.
- Once installed, adjust the beam so the cut-off is no higher than 500mm from the ground when the vehicle is positioned 25m from a wall.

Please compare your existing fog light mounting points with the Type A bracket before ordering. Additional wiring may be required to operate the DRL, parker and indicator functions.

Please Note:

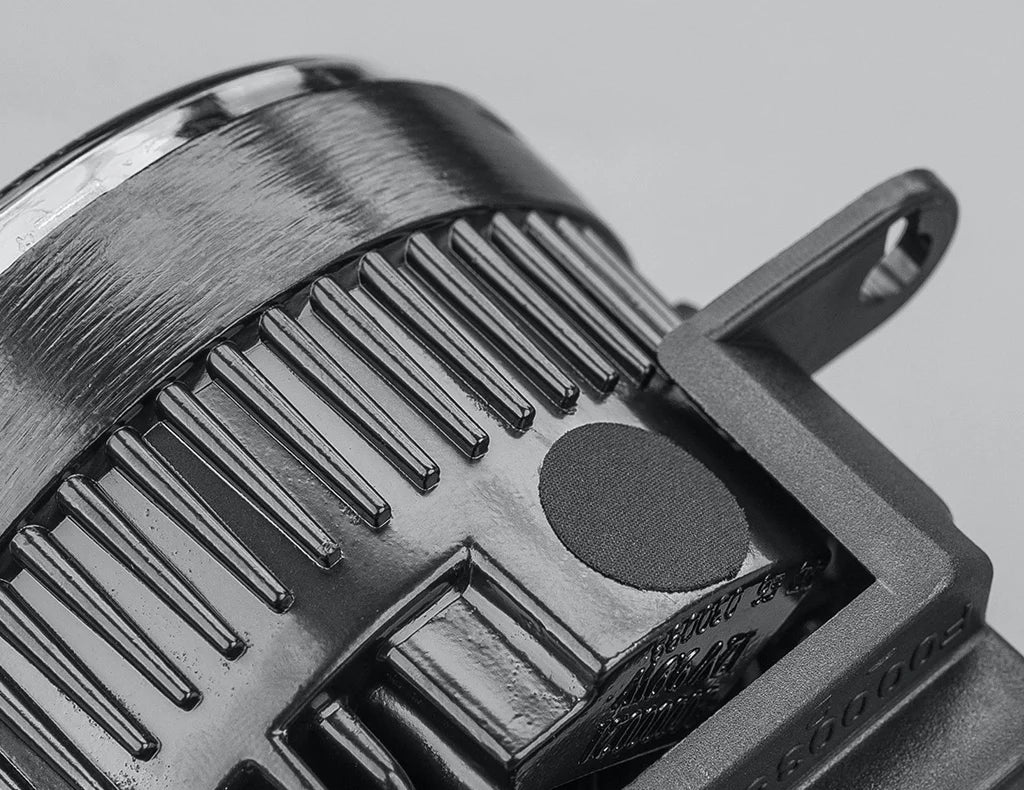

Some internal fogging may be visible during initial operation. This is normal and should clear within the first week as the lights heat up and moisture escapes through the built-in breathers.

TECH SPECS:
LED: High Intensity W1860TM2
Fog Light Output: 730LM per light / 1,460LM per pair

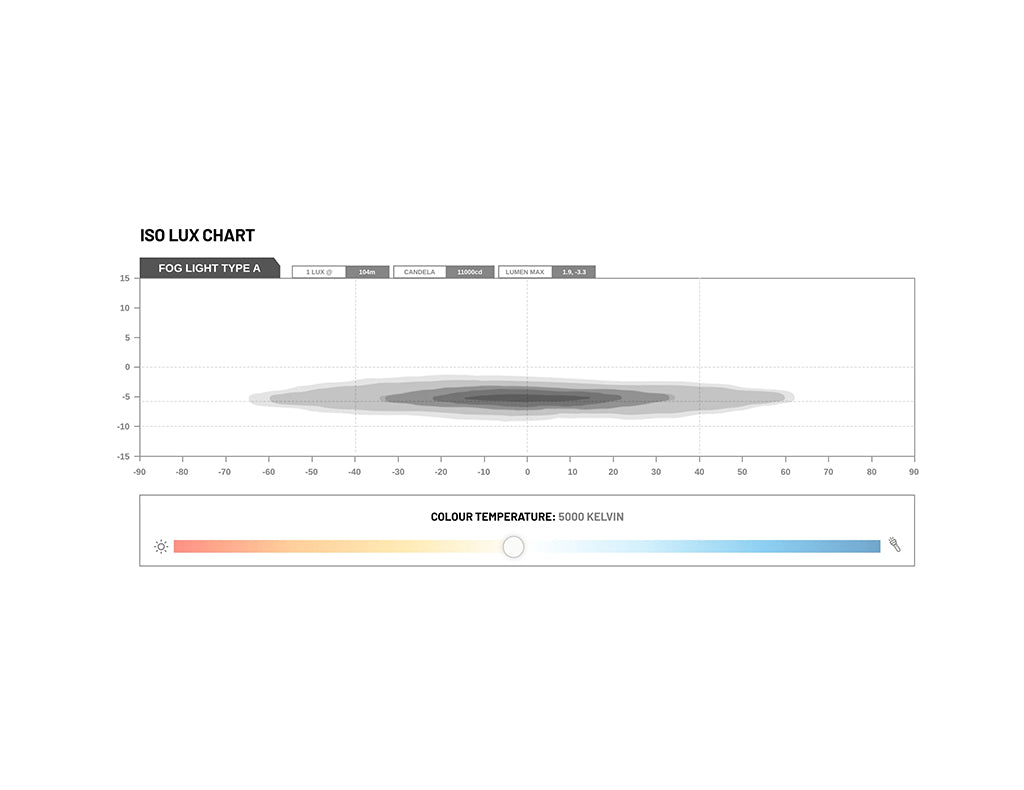

Beam Pattern: Fog Beam
Beam Distance: 104m @ 1 Lux
Candela: 11,000cd
Fog Light Power: 17.8W @ 13.2V
Fog Light Draw: 1.35A @ 13.2V
DRL Draw: 1.3A @ 13.2V
Parker Draw: 0.17A @ 13.2V
Indicator Draw: 1.3A @ 13.2V
Colour Temperature: 5000K
Compatible Voltage: 10–36V DC
Housing Material: Cast Aluminium
Ingress Protection: IP68

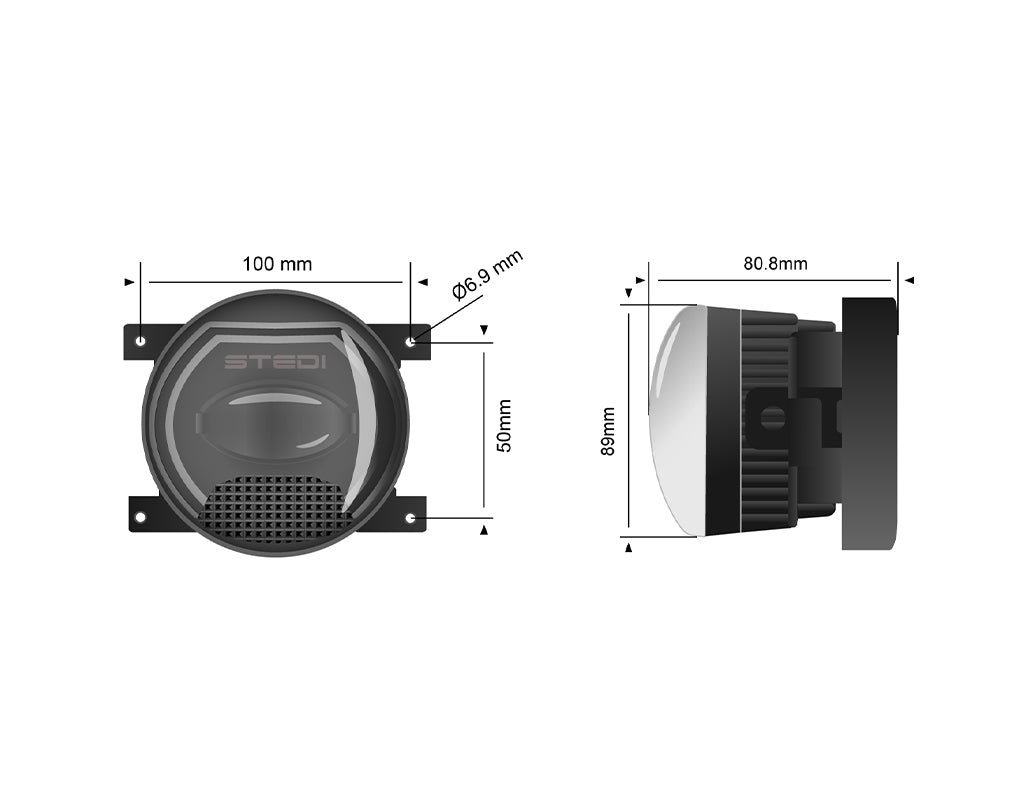

Dimensions: 115mm x 93mm x 80.8mm
Weight: 1.05kg
DRL Colour: White
Parker Colour: White
Indicator Colour: Amber
Warranty: 24 Months

COMPATIBILITY

FORD
RANGER: PX1 + PX2 2012–Current (Excluding PX2 Wildtrak)

LAND ROVER
FREELANDER 2: 2007
DISCOVERY 4

MAZDA
BT-50: 2012–Present

MITSUBISHI
OUTLANDER: 2005–2007
OUTLANDER: 2010–2011
OUTLANDER: 2012–2017
PAJERO: NS / NT 7/2006–9/2011
PAJERO SPORT: 2015–Current
TRITON: 2010–Present

NISSAN
PATROL: 2004–2009
PATROL: 2010–2017
NAVARA D40: 2010–2013
PATHFINDER: 2004–2012

SUZUKI
GRAND VITARA: 2005–2017
VITARA: 2006–2017
JIMNY: 2000–2018 (Third Generation)

Install Guide
Make Model Years
FORD Ranger PX2 2015–2018
FORD Ranger PX1 2011–2015
LAND ROVER Discovery IV 2009–2017
MAZDA BT-50 Series II 2011–2020
MITSUBISHI Pajero Sport (QE) 2015–Onwards
MITSUBISHI Triton / L200 MR 2019–2023
MITSUBISHI Pajero 3rd / 4th Gen (NM / NP / NS / NT / NW) 2000–2021
MITSUBISHI Triton / L200 MQ 2015–2018
MITSUBISHI Outlander 3rd Gen (ZJ) 2012–2015
MITSUBISHI Triton / L200 ML/MN 2006–2015
MITSUBISHI Outlander 2nd Gen (ZG / ZH) 2007–2011
NISSAN Patrol Y62 2010–Onwards
NISSAN Patrol / Safari Y61 GU (LWB) 1997–2023
NISSAN Patrol / Safari Y61 GU (SWB) 1997–2023
NISSAN Patrol / Safari Y61 GU Ute (COIL / COIL) 1999–2023
NISSAN Patrol / Safari Y61 GU Ute (COIL / LEAF) 1999–2023
NISSAN Navara D40 STX550 2010–2014
NISSAN Navara D40 STX 2005–2014
NISSAN Pathfinder R51 2005–2014
NISSAN Pathfinder R51 Ti 550 2010–2013
SUZUKI Jimny 4th Gen 2-Door (JB64W / JB74W) 2018–Onwards
SUZUKI Jimny 4th Gen 4-Door (JC74W) 2023–Onwards
SUZUKI Jimny 3rd Gen (SN413) 1998–2018
SUZUKI Grand Vitara JT Series 2005–2015
