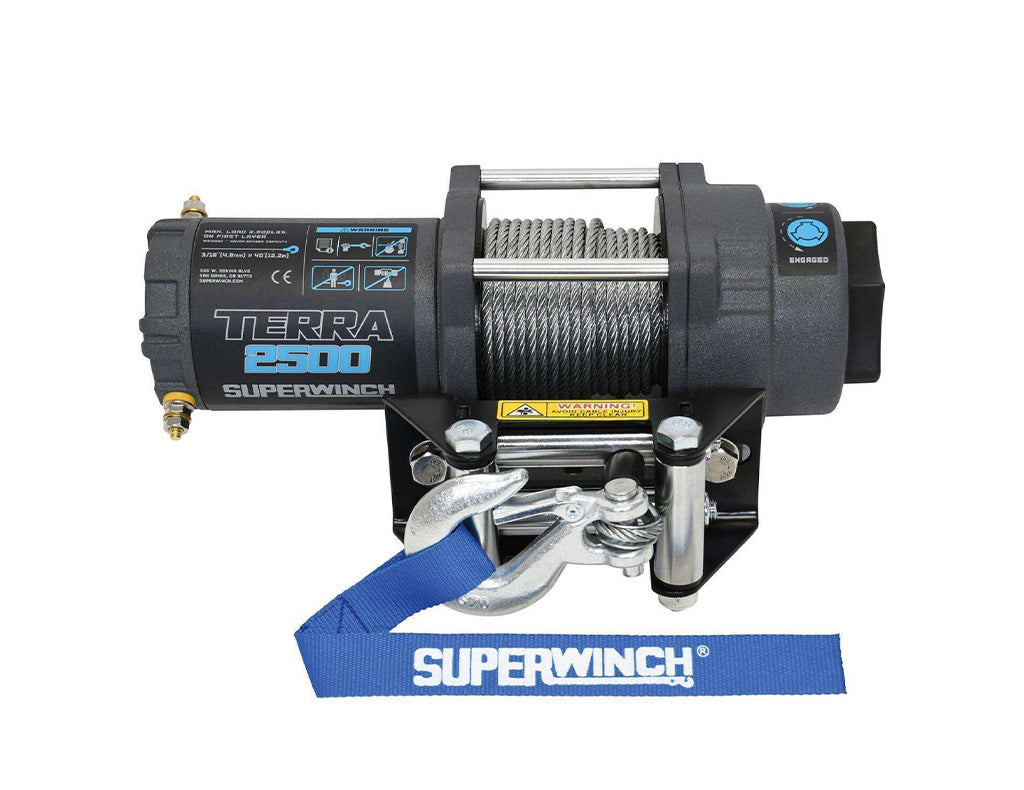

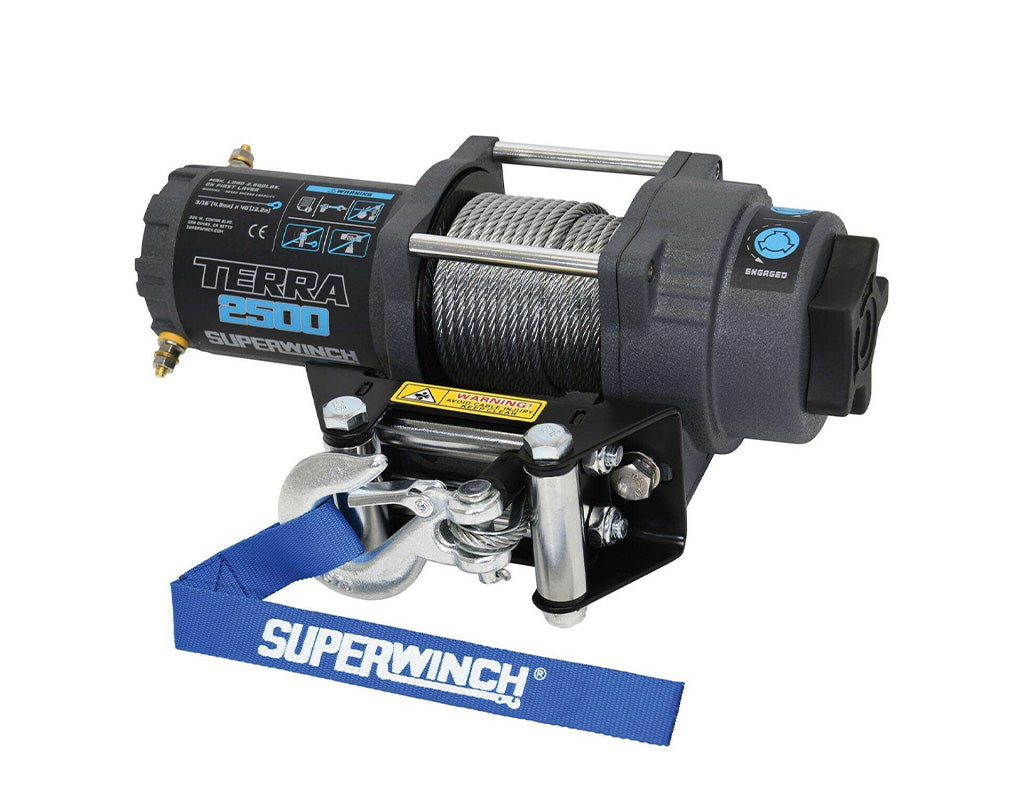

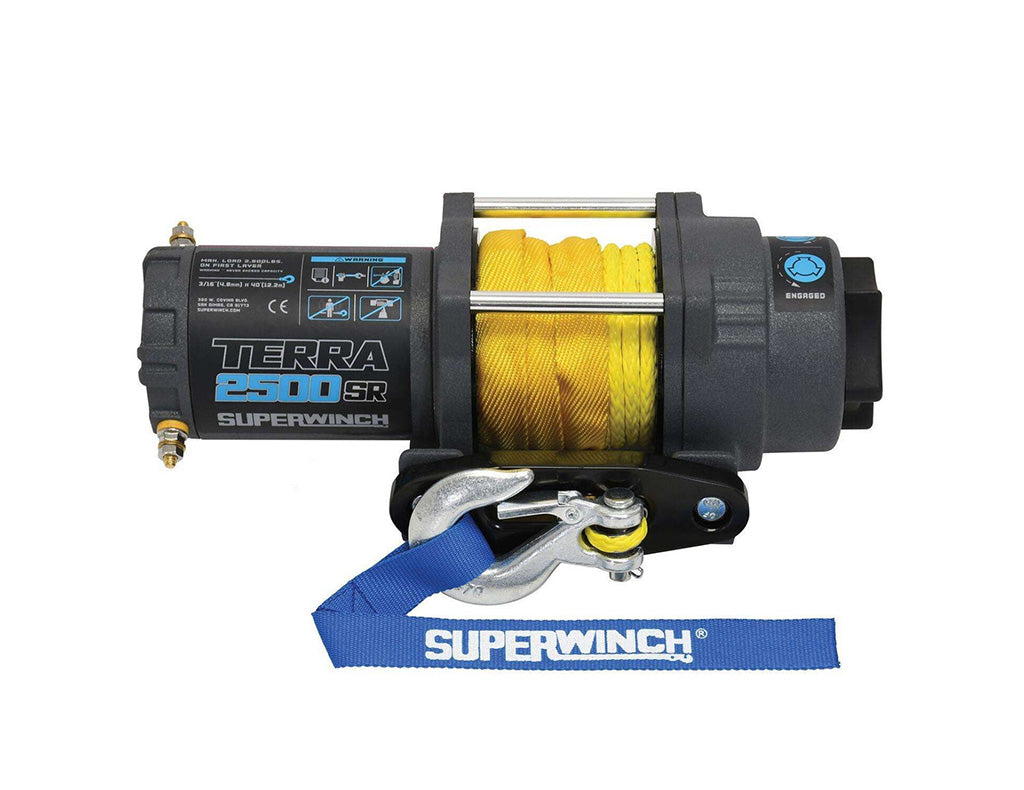

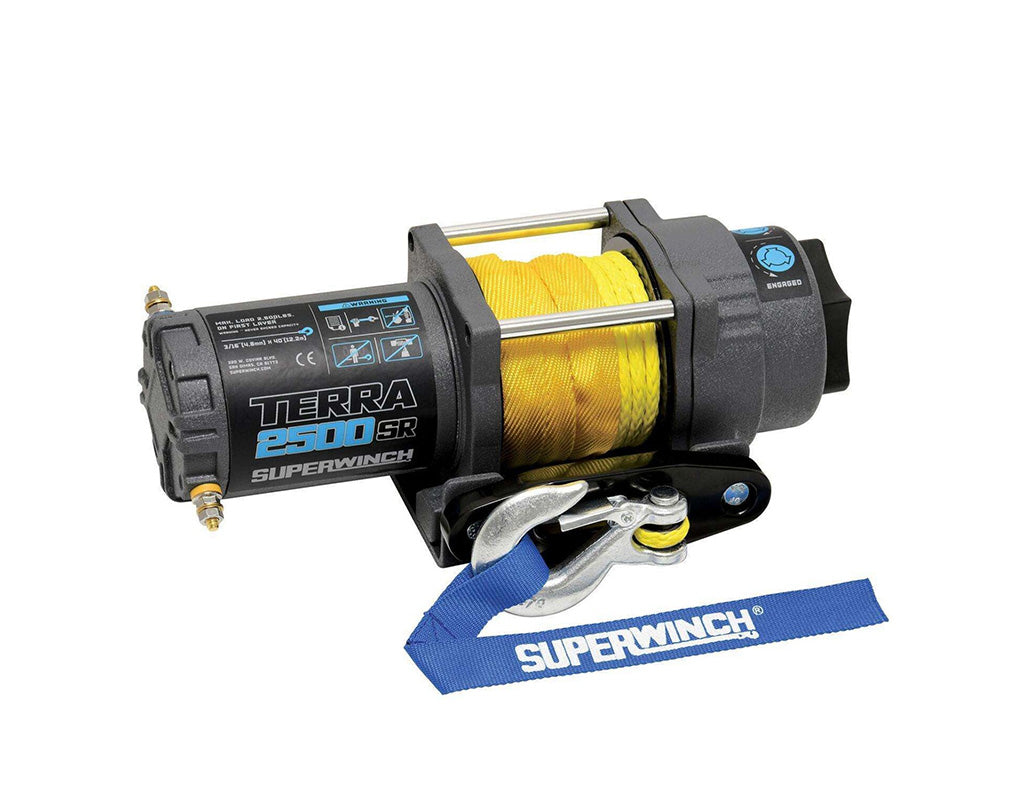

Superwinch Terra 2500 12v

Superwinch Terra 2500 12v

Note: Please use the Drop-Down menu to select the winch rope material.

Includes:
1x Superwinch Terra 2500

Details:
The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 2500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10’ wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.

- 2,500 lbs capacity
- 1.5 HP permanent magnetic motor
- Clockable motor
- 3-Stage planetary gearing with 138:1 ratio
- Heavy-duty steel drum
- All steel gear set

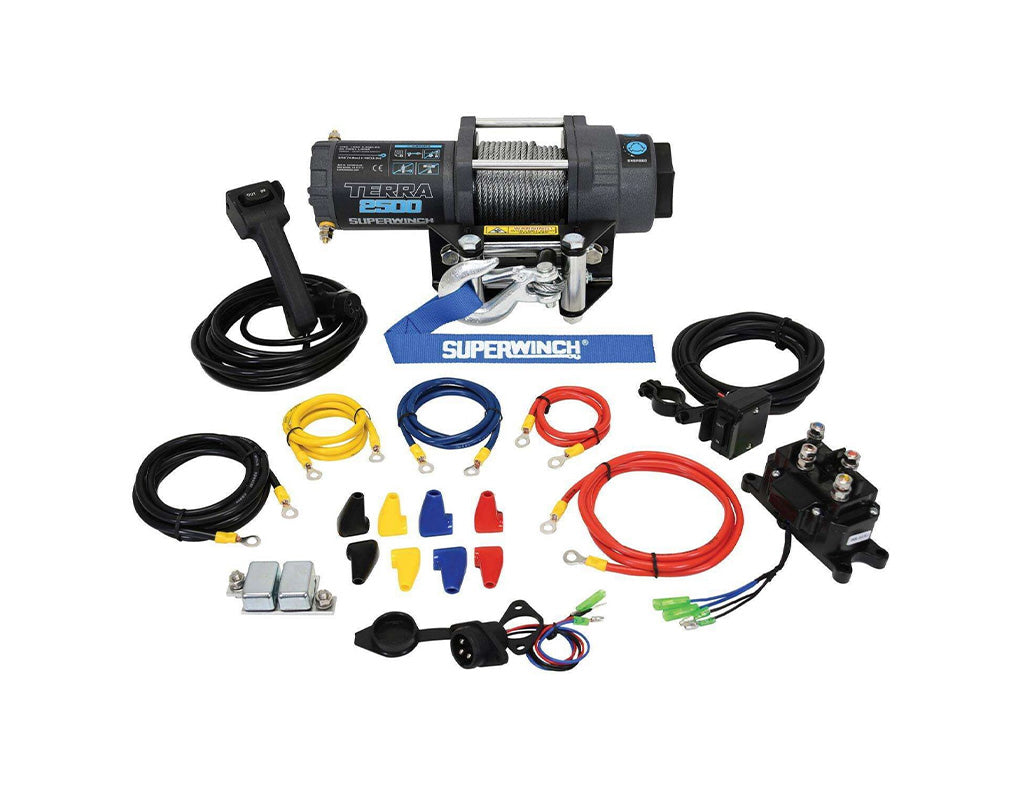

- Sealed solenoid with circuit breaker

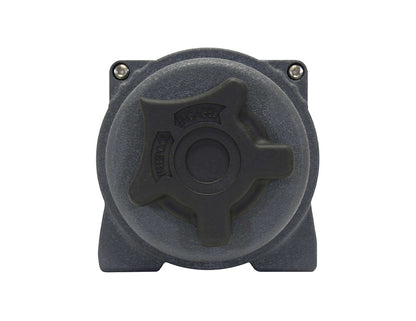

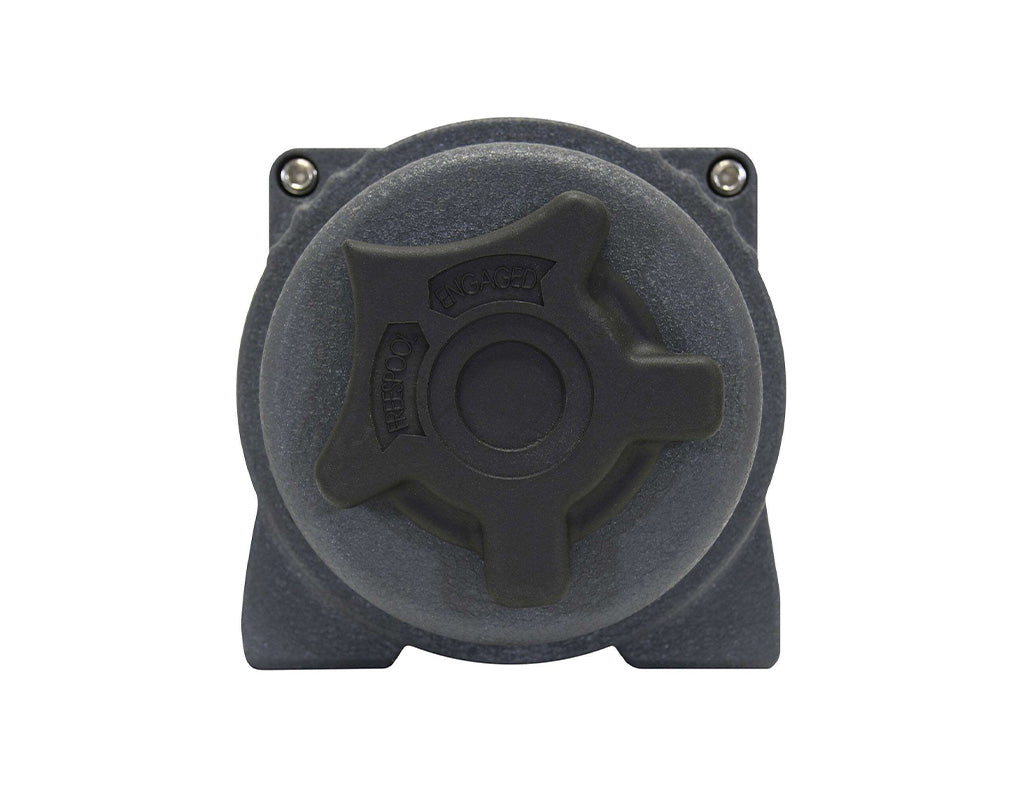

- Easy to engage ergonomic freespool control knob
- IP67 protection from water and dust

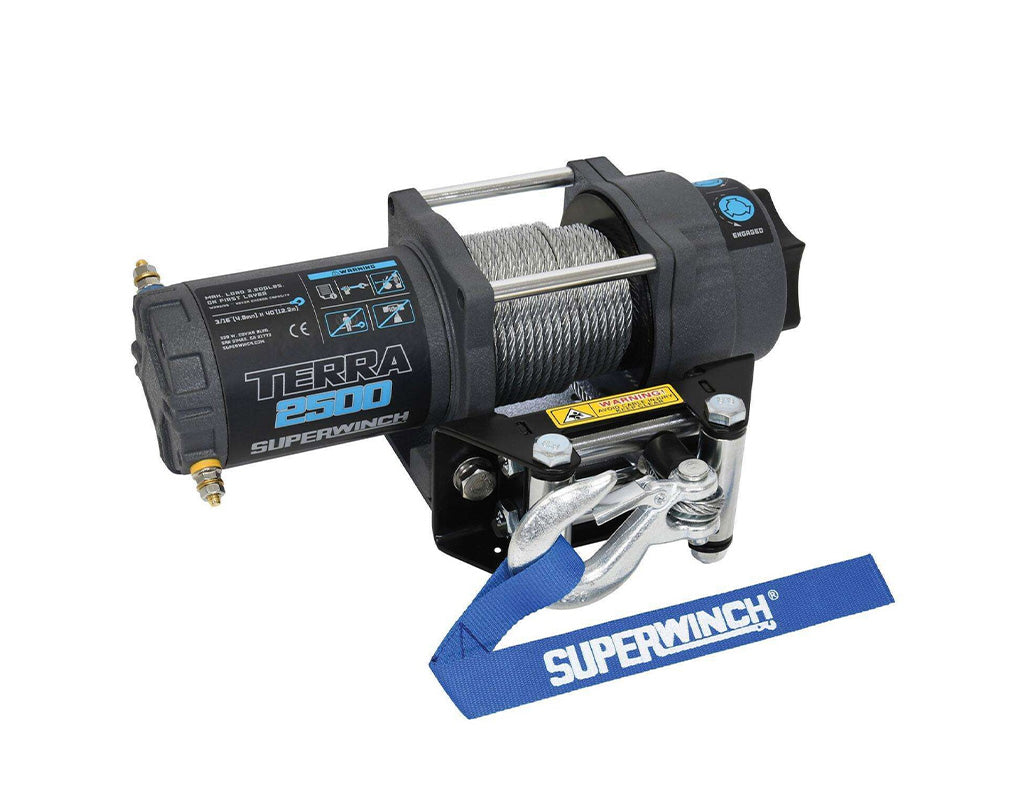

- 3/16 in. - 40 ft. wire rope
- Heavy-duty, clevis pinned, latched hook
- 4-way roller fairlead (wire rope)
- Narrow drum allows easier mounting in tight spaces

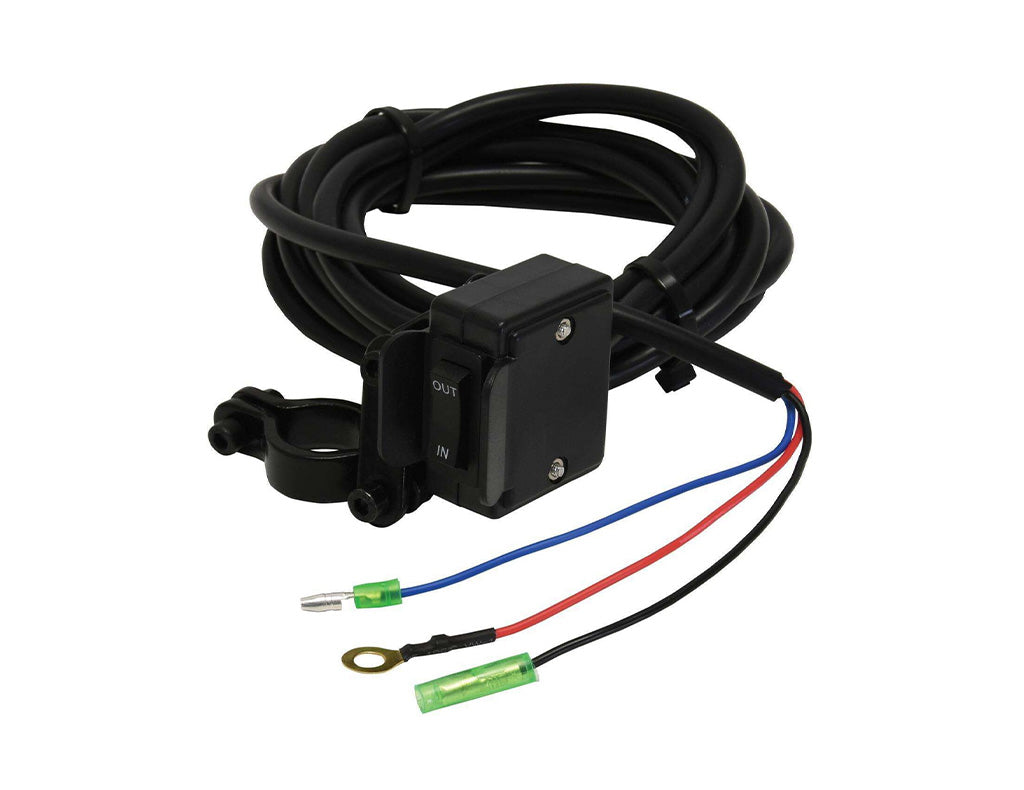

- 10’ handheld remote with handlebar rocker switch
- Universal mounting plate
- Mounting bolt pattern 3” x 4.87”
- Gray wrinkle powder coat finish

Specifications:
- Brake System: Full load holding automatic brake
- Clutch: Free Spooling, Ergonomic Control
- Color: Textured Gray

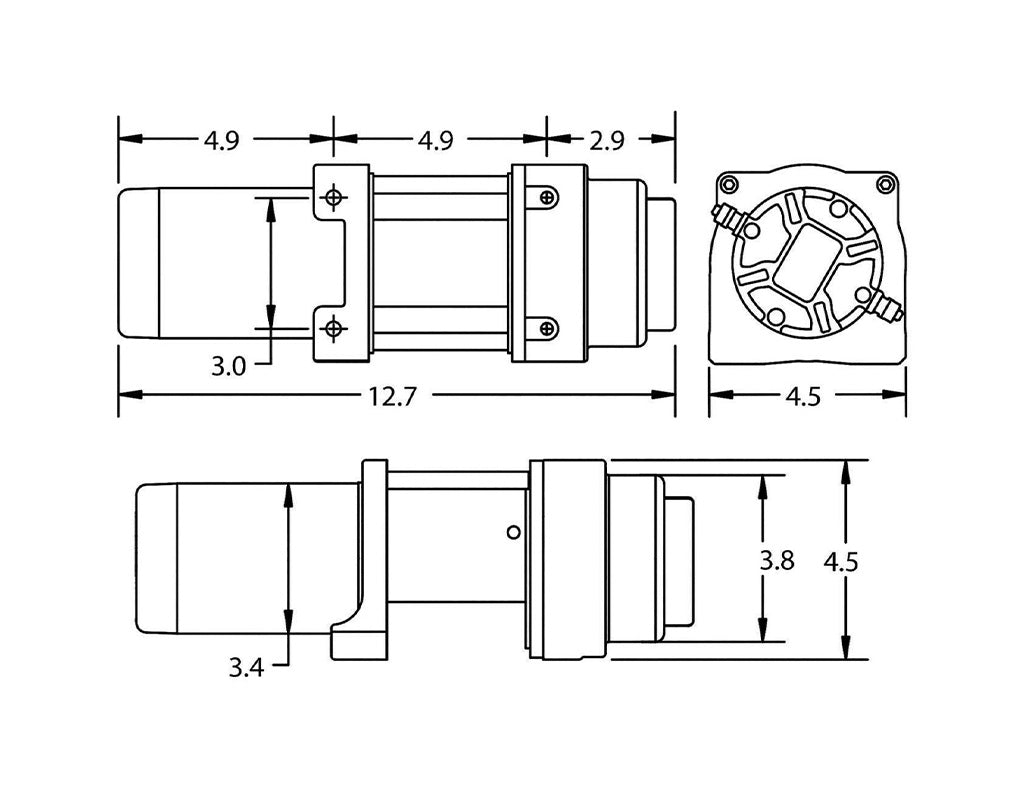

- Dimensions: 12.7in L x 4.5in W x 4.5in H (322mm L x 114mm W x 114mm H)
- Drum: Durable fully welded steel drum
- EN Compliant: No
- Fairlead: Stainless Steel 4-Way Roller
- Finish: Powder Coated
- Gear Ratio: 138:1
- Gear System: 3-stage planetary
- IP Rating: IP67 Waterproof and Dustproof
- Material: Steel
- Motor: 1.5 HP, permanent magnet motor, 12V DC
- Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)
- Net. Weight: 18 lbs (8.2kgs)
- Rated Single Line Pull (Lbs): 2500
- Remote Control: 10 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch
- Remote Type: Wire
- Rope: 3/16 in x 40 ft (4.76mm × 12.19m)

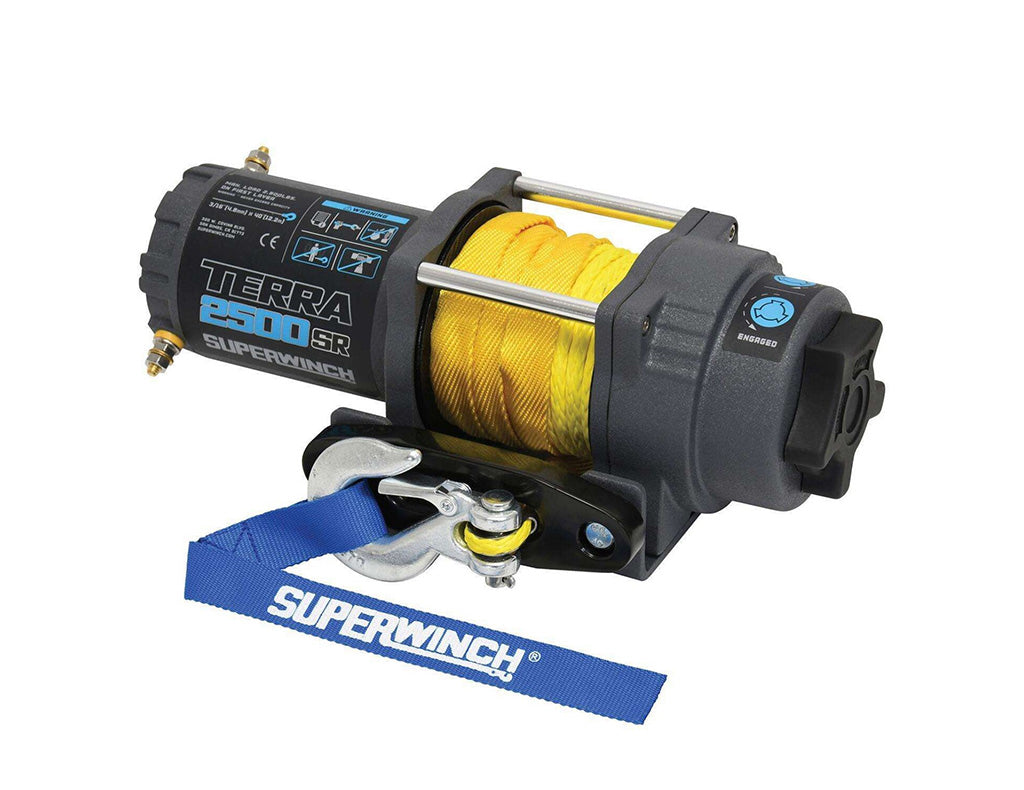

- Rope Material: Steel Wire/Synthetic
- Warranty: Limited Lifetime Mechanical/3 Year Limited Electrical
- Package Weight: 26 lbs.
- Winch Hook: Heavy-Duty, Clevis Pinned Latched
- Winch Model: Terra
