Trundles Bolt-In Diff Drop Kit to suit Ford Ranger PX1/2/3 2011-2022

Trundles Bolt-In Diff Drop Kit to suit Ford Ranger PX1/2/3 2011-2022

MAZ-007

In stock
$350.00
$350.00 $0.00
Tax included.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS

Trundles Bolt-In Diff Drop Kit to suit Ford Ranger PX1 / PX2 / PX3 2011-2022

Note: When using these diff drops on the PX3 Ranger with extended length shock absorbers, clearance to the shock mount may need to be modified or you may need to run a higher clearance outer cv boot.

Includes:

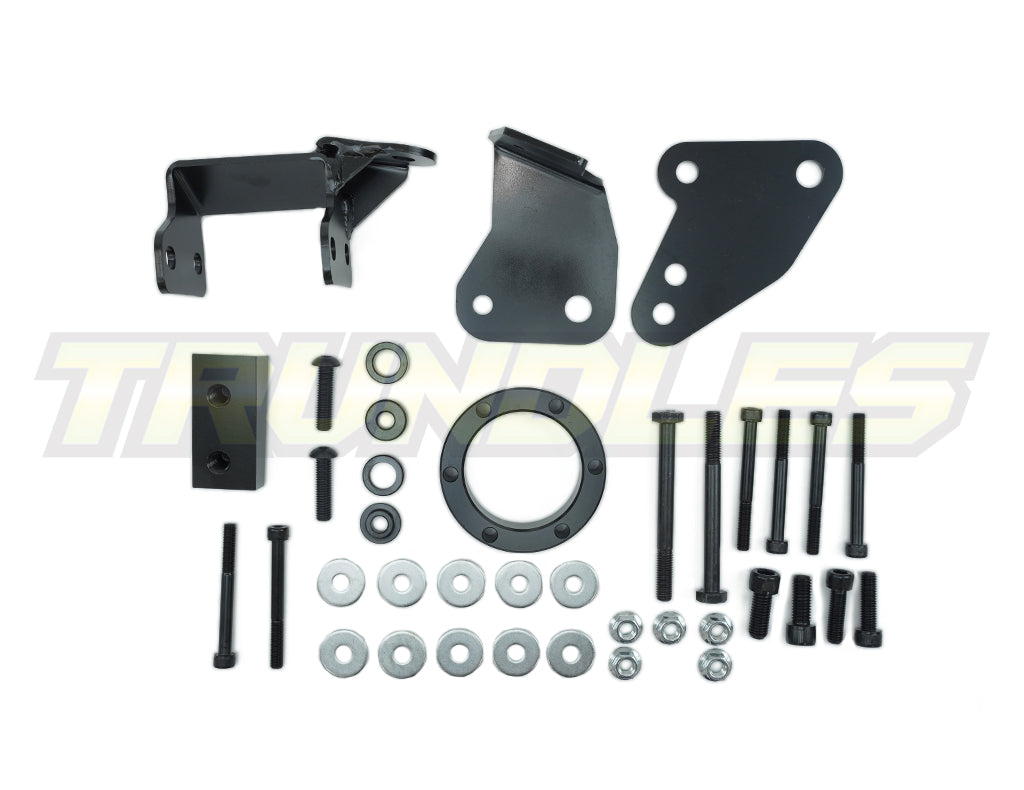

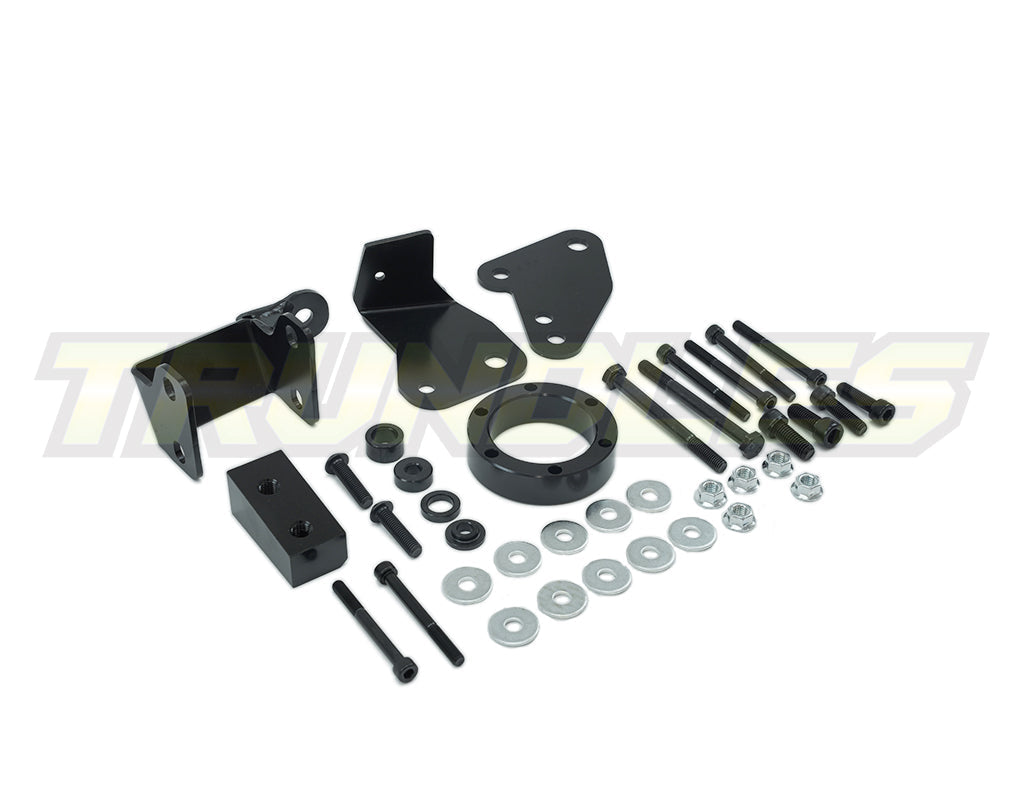

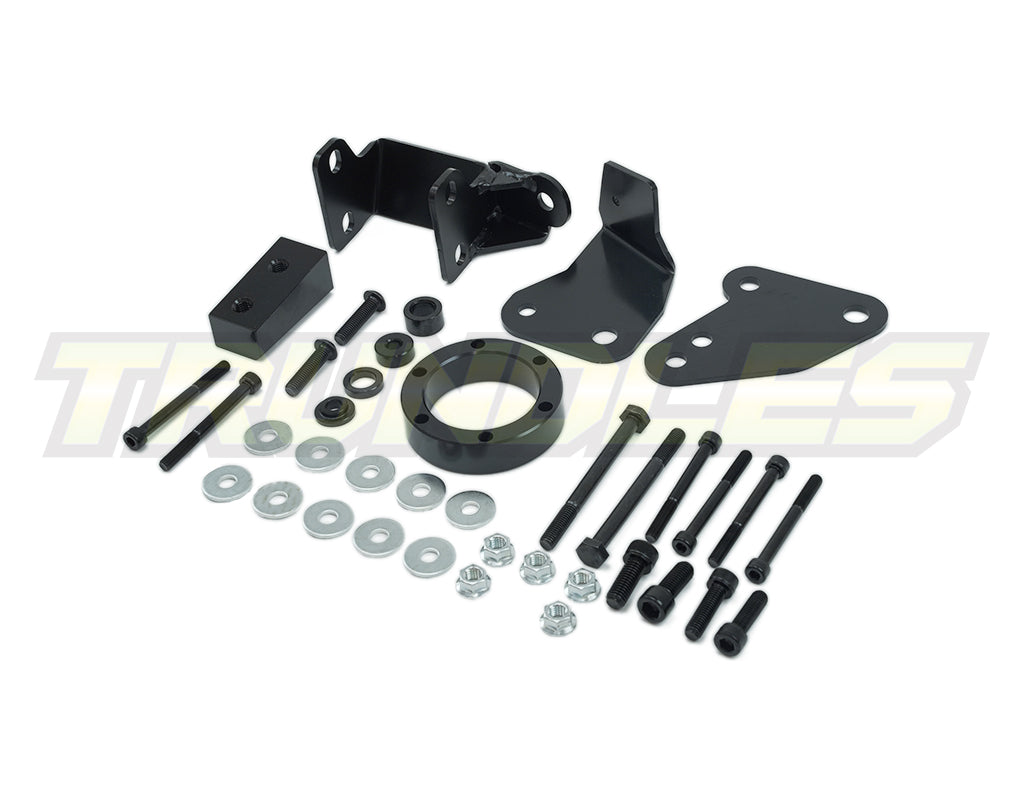

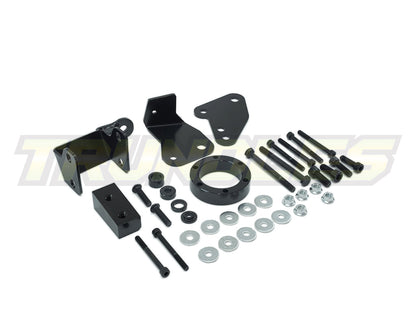

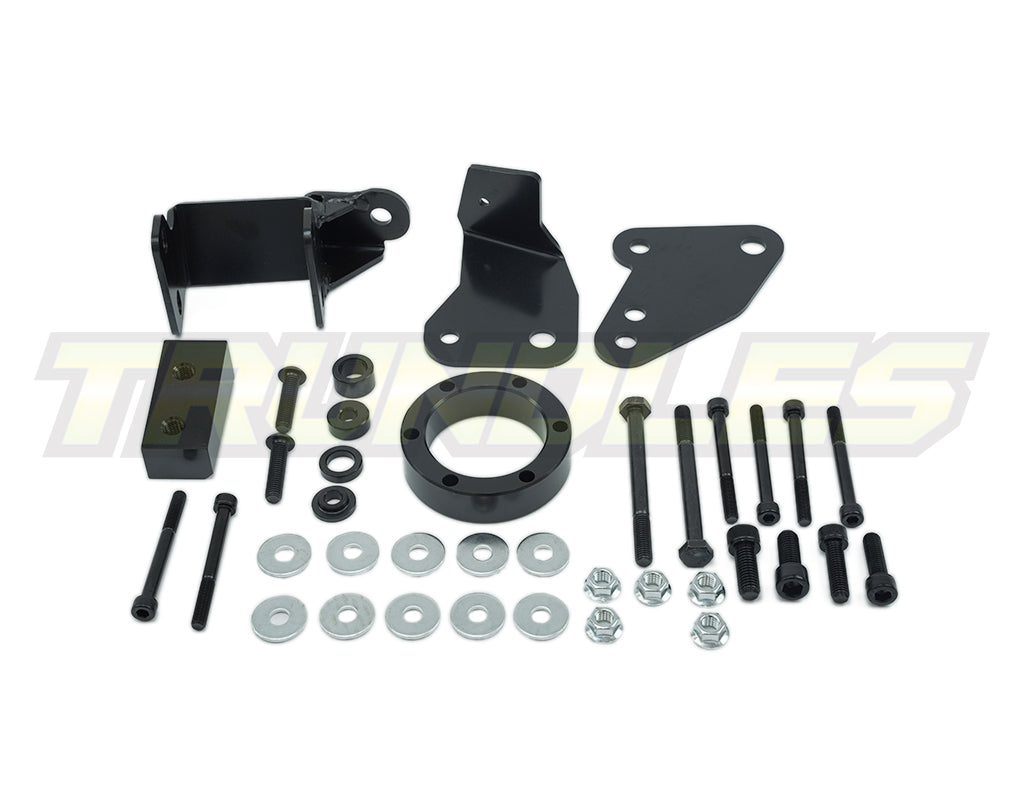

1x Bolt In Diff Drop Kit - MAZ-007

Details:
This diff drop kit is a bolt in kit that allows the factory front diff to be lowered approx 25mm to reduce CV angles on higher lifted vehicles.

As the factory diff is very close to a chassis bracket, one bracket is required to be trimmed, allowing this kit to bolt in. No welding is required to fit this kit, and it is aimed at the DIYer with moderate mechanical knowledge.

Complete with brackets, all required bolts and a front tail-shaft spacer, this diff drop kit comes with all parts required to fit up.

Vehicle Applications:
- Ford Ranger PX (2011-2015)
- Ford Ranger PX MKII (2015-2018)
- Ford Ranger PX MIII (2018-2022)
- Mazda BT-50 (2011-2015)

Fitting instructions can be found here.

Make Model Years
FORD Ranger PX3 2018–2022
FORD Ranger PX2 2015–2018
FORD Ranger PX1 2011–2015
MAZDA BT-50 Series II 2011–2020
