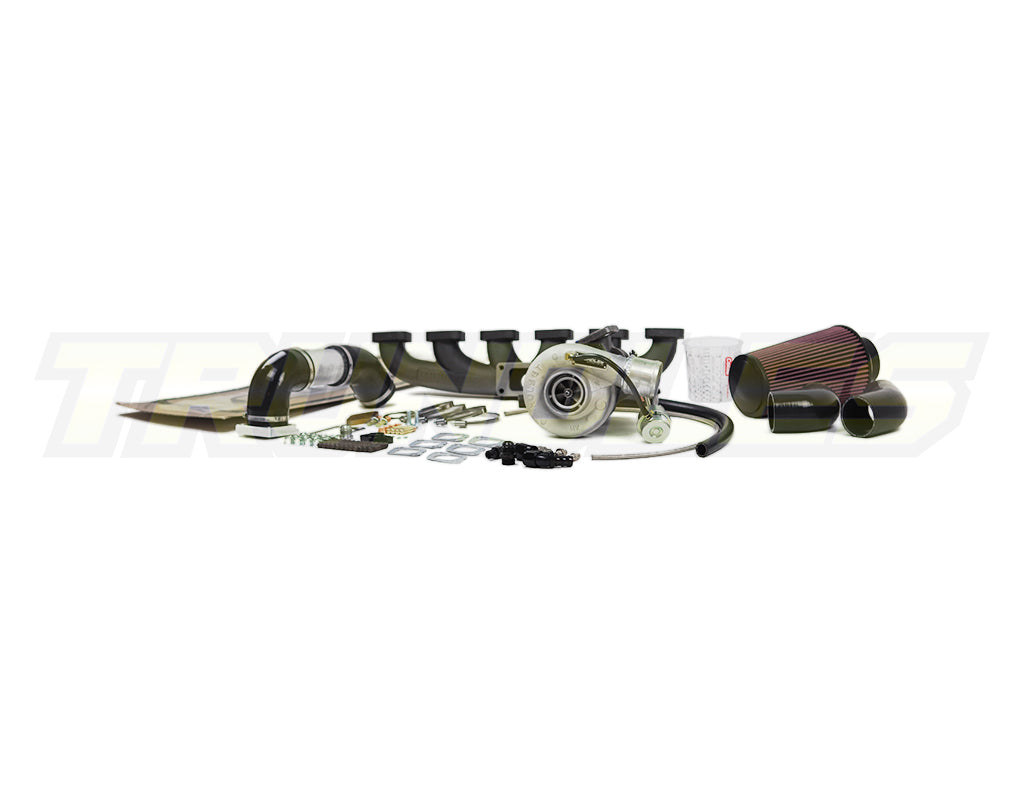

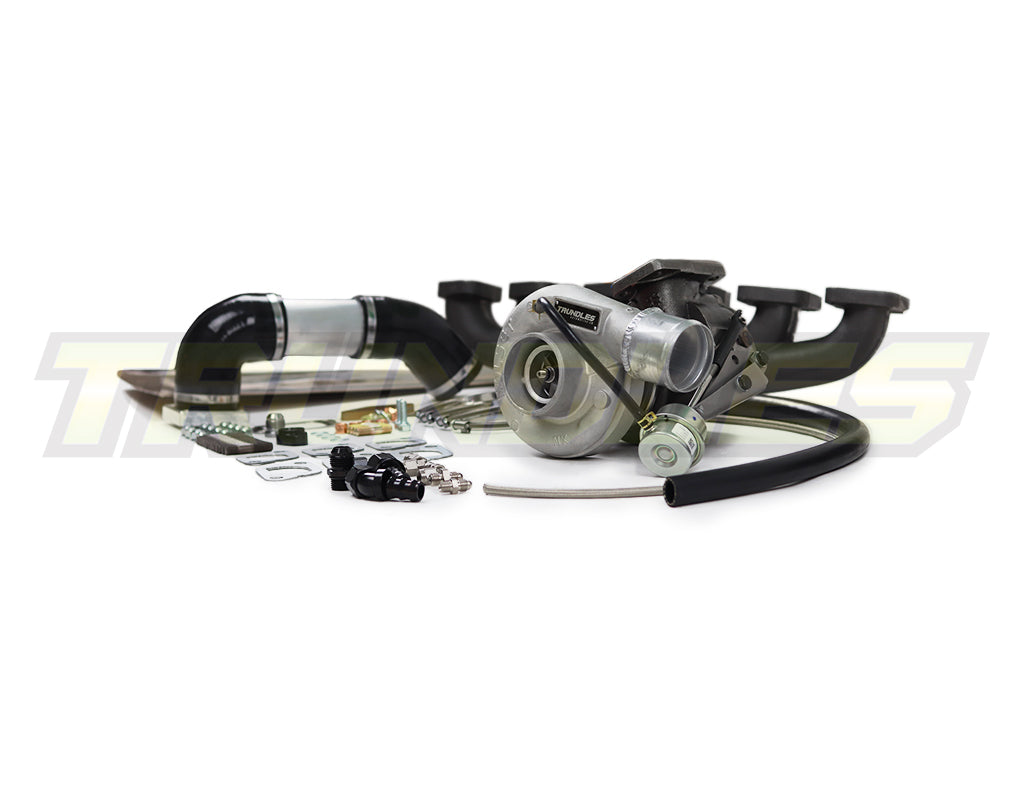

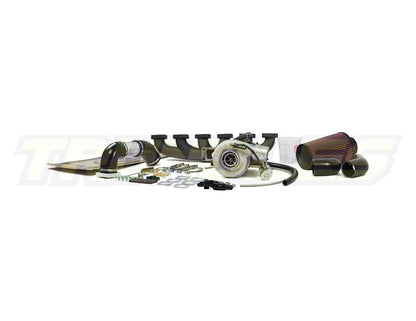

Trundles Comprehensive HX30 Turbo Kit to suit Nissan TD42 Engines

Trundles Comprehensive HX30 Turbo Kit to suit Nissan TD42 Engines

Kit Includes:

1. Trundles Cast Manifold
2. Genuine Nissan Exhaust Manifold stud and nut kit
3. Manifold to head gaskets
4. Inlet manifold 4 bolt gasket
5. Inlet manifold 4 bolt adapter
6. Dump pipe v band and clamp
7. Speedflow oil feed and drain kit
8. Hot pipe welded to suit
9. Cross over if non intercooled setup
10. Inlet pipe clamps and filter (to get you going if you don’t have an airbox)
11. Sump gasket
12. T3 Inlet gasket
13. HX30 Turbo with wastegate actuator relocation kit welded to it
14. 3" Pod Filter (9" long) and wrap
15. Mixing cup for oil flow rate test
16. Comprehensive instructions and guide to turbocharging

Details:
- This kit will suit stock 10mm pumps through to 120cc 12mm pumps.
- Will operate well from 120-180 hp and 300-500nm at the tyres.
- Can be set up to suit front mount or non intercooled setup - please specify using the drop down menus

Note: Supplied setup may differ slightly from pics depending on your application and as components are developed and improved.
