Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

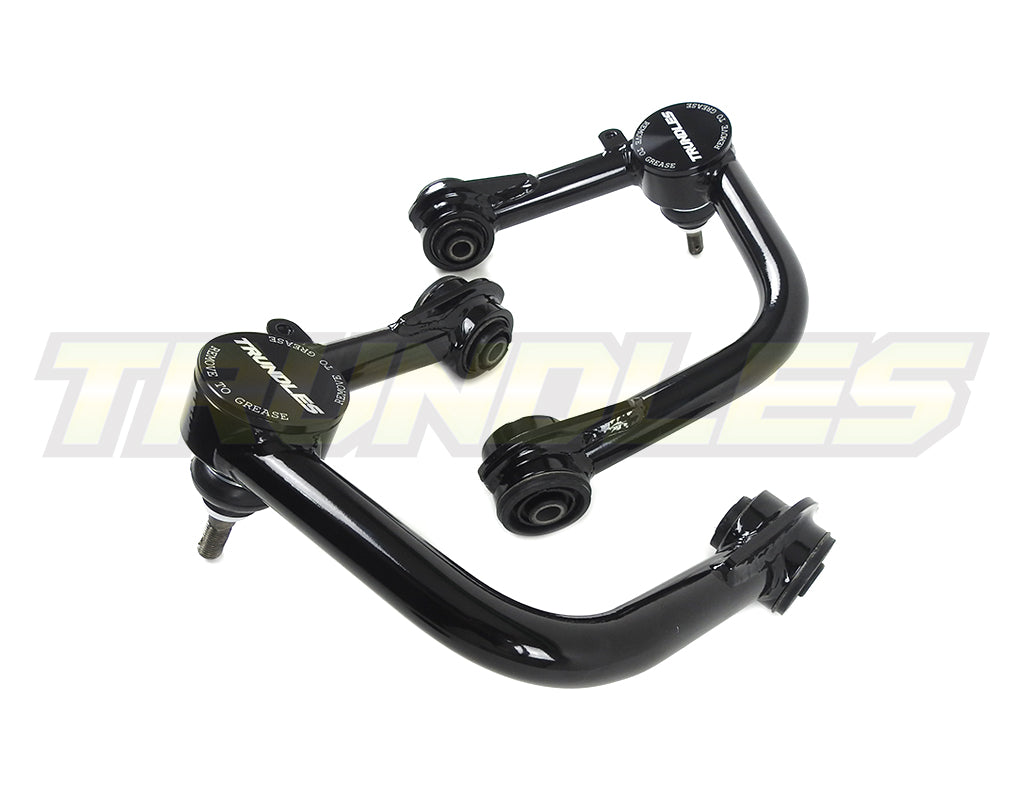

Trundles Heavy Duty Control Arms V2 to suit Toyota Hilux N70/N80 2005-Onwards
Includes:
1x Upper Control Arm Set - UCA3881H-TOURV2
Details:
The new UCA3881H-TOUR has a minimal increase in caster of 1 degree over OE to minimize issues with wheel to guard clearance often encountered on Hilux/Fortuners with larger aftermarket tyres. The "TOUR" product still offers all the features & benefits found in the original UCA3881H design
The Heavy Duty Upper Control Arms have been designed with ease of fitment & ongoing serviceability in mind, and are a necessity for various IFS models that have been lifted 30mm+. The Upper Control Arms have been designed to restore camber & caster lost on the IFS vehicles once they have been lifted, by correcting the angle of the ball joint. Without restored camber & caster settings lifted IFS vehicles will eventually show excessive tyre wear and experience ride & steering issues.
With greater radius and tube sizing to suit per application, the designs allow clearance of the coils during articulation, with the outer radius also adjusted to allow for the fitment (in some cases) of 35" tyres without having the issue of the tyres rubbing on the arms during full lock. Manufactured in Heavy Duty 32mm OD (6mm wall thickness) STKM13A Carbon Steel Tube - for optimum strength without putting too much additional weight onboard.
We haven't gone with a complicated ball joint or bushing setup - we have designed the Ball Joint & bushing apertures to take OE spec componentry! That way if you have a ball joint or bushing issue in an out of the way area, where getting spares can be a drama, you can replace your affected part with a standard OE Spec factory or aftermarket unit.
Upper Control Arms are finished in dual layer coating including black e-coat and Gloss Black Powder Coat for maximum durability, rust prevention and discreet installation.
Features & Benefits:
- Angled Ball joint Aperture - allows for better articulation of the ball stud.
- Repositioned Ball Joint Aperture - 1 degree increased caster.
- Repositioned Ball Joint Aperture – maintains camber.
- OE Spec Ball Joint Aperture - takes standard factory or aftermarket ball joint.
- Revised Radius Bends (Internal) - increased suspension articulation.
- Revised Radius Bends (External) - allows fitment of larger tyres.
- OE Spec Bushing Aperture - takes standard factory or aftermarket bushings.
- Heavy Duty 350mpa 32mm OD Tube (6mm wall) – increased strength over factory arm unit
- Powder Coat finish - Dual layered coating with a Gloss Black Powdercoat
Replacement Ball Joints can be found here.
Replacement Bushes can be found here.
Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
