Ultibend 45° Long Radius Stainless Steel Bend

SS2IN45LR

Select your bend diameter:
Out of stock
$26.00
$26.00 $0.00
Tax included. Shipping calculated at checkout.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

DETAILS

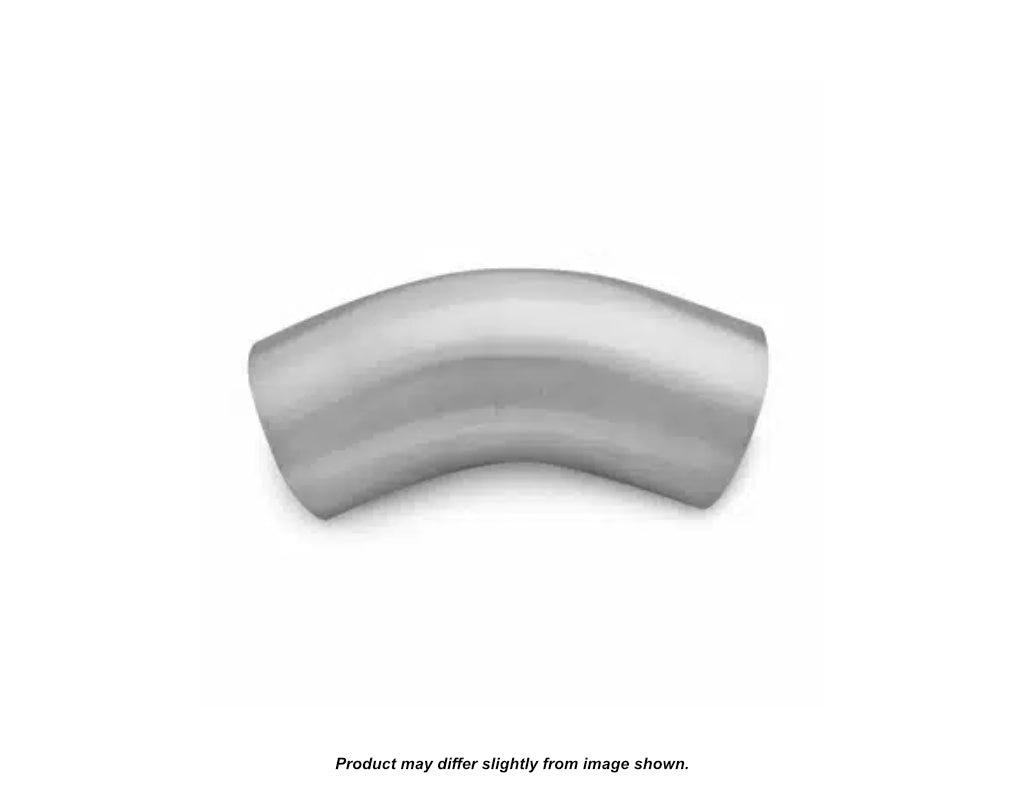

Ultibend 45° Long Radius Stainless Steel Bend

Includes:
1x 45° Bend

Details:
- Material: Stainless Steel
- Grade: 304

Tolerances:
- Diameter - ± 0.5% of OD
- Square - Target <0.2mm, Max 0.4mm
- Dim A - ± 1.5mm
- Dim B/C - Nominal
- Radius - Nominal

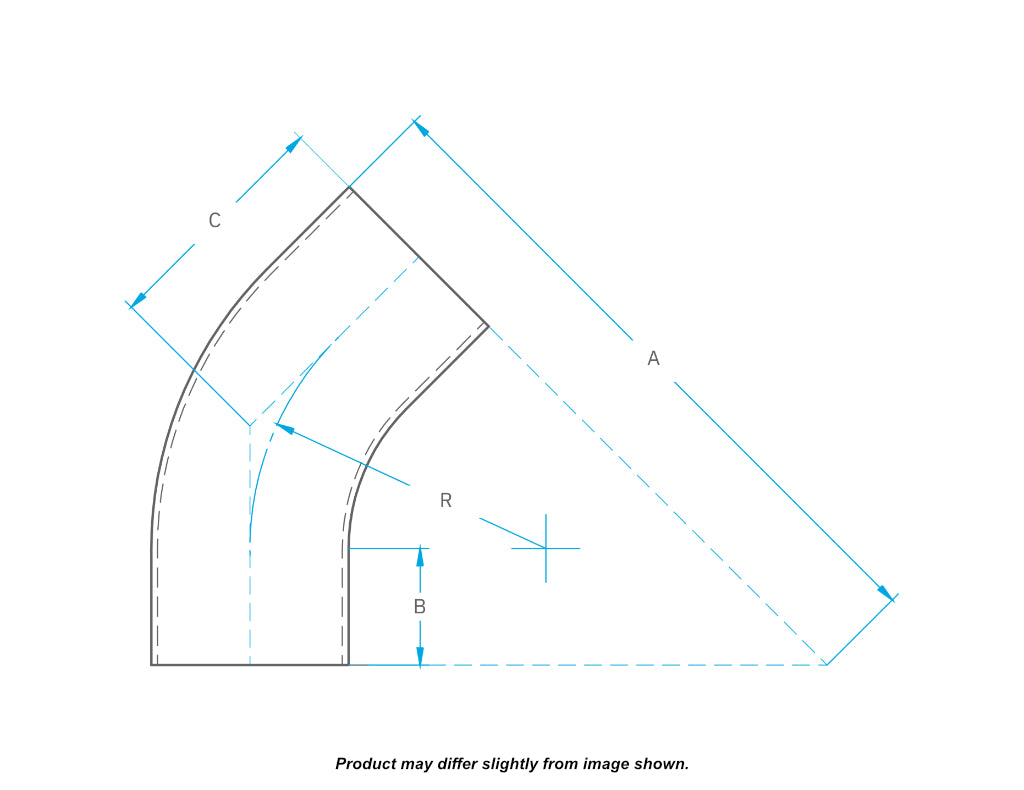

Measurements:
2" - A= 174mm B=30mm C=61.6mm R=76.2mm
2.5" - A= 199mm B=30mm C=69.3mm R=95.3mm
3" - A= 225mm B=30mm C=77.4mm R=114.3mm
4" - A= 275mm B=30mm C=92.9mm R=152.4mm

Please Note: Use drop down menu to select required size.

Make Model Years
UNIVERSAL UNIVERSAL
