Ultibend 90° Stainless Steel Bend - Short Radius

SS2.5IN90SR

Select your bend diameter:
In stock
$27.50
$27.50 $0.00
Tax included. Shipping calculated at checkout.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

DETAILS

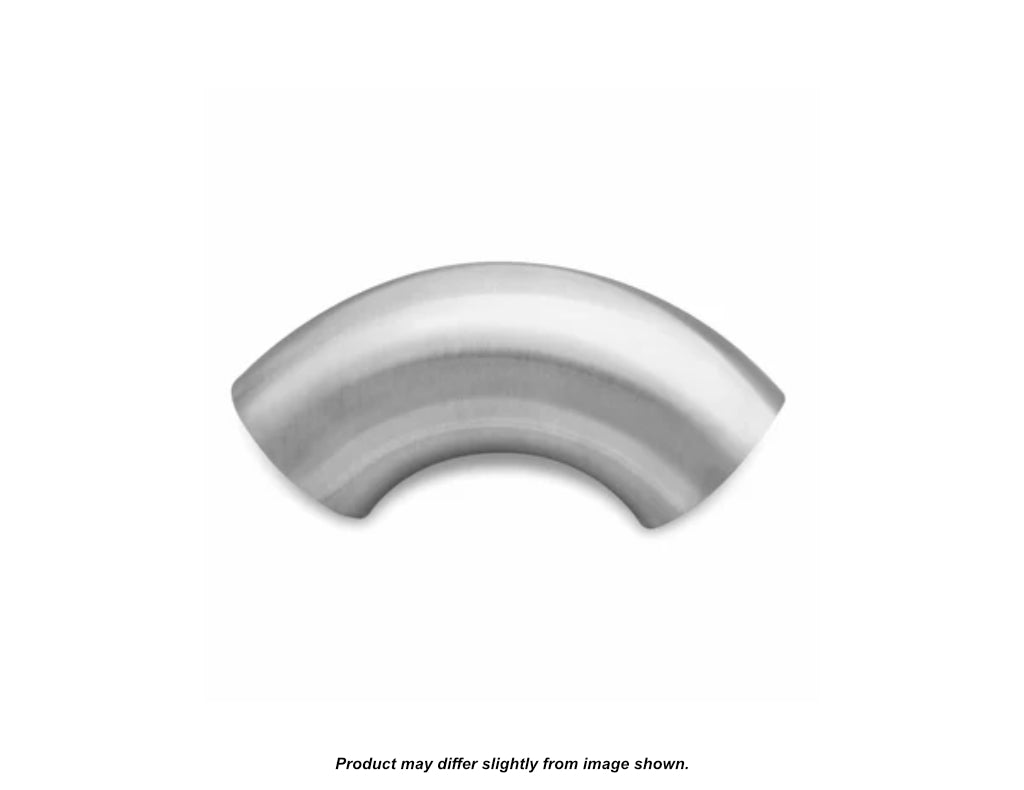

Ultibend 90° Stainless Steel Bend - Short Radius

Includes:
1x 90° Bend

Details:
- Material: Stainless Steel
- Grade: 304

Tolerances:
- Diameter - ± 0.5% of OD
- Square - Target <0.2mm, Max 0.4mm
- Dim A - ± 1mm -0mm
- Dim B/C - Nominal
- Radius - Nominal

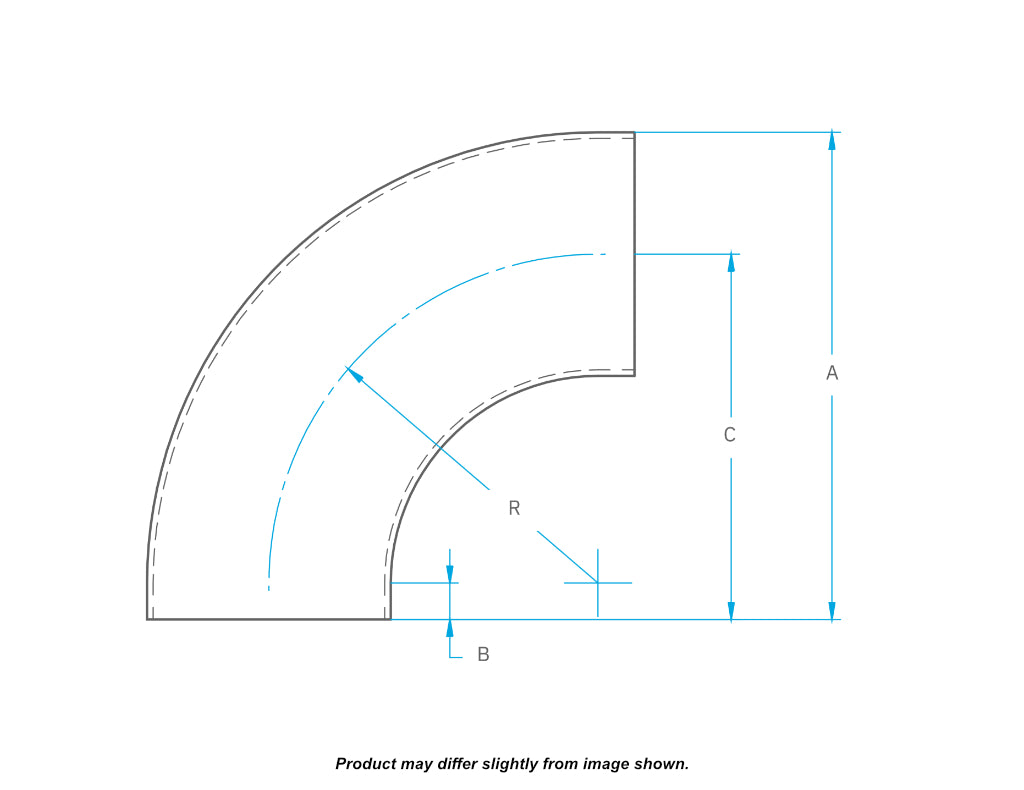

Measurements:
2" - A= 101.6mm B=7.6mm C=76.2mm R=68.6mm
2.5" - A= 127mm B=9.5mm C=95.3mm R=85.7mm
3" - A= 152.4mm B=11.4mm C=114.3mm R=102.9mm
4" - A= 203.2mm B=15.2mm C=152.4mm R=137.2mm

Please Note: Use drop down menu to select required size.
