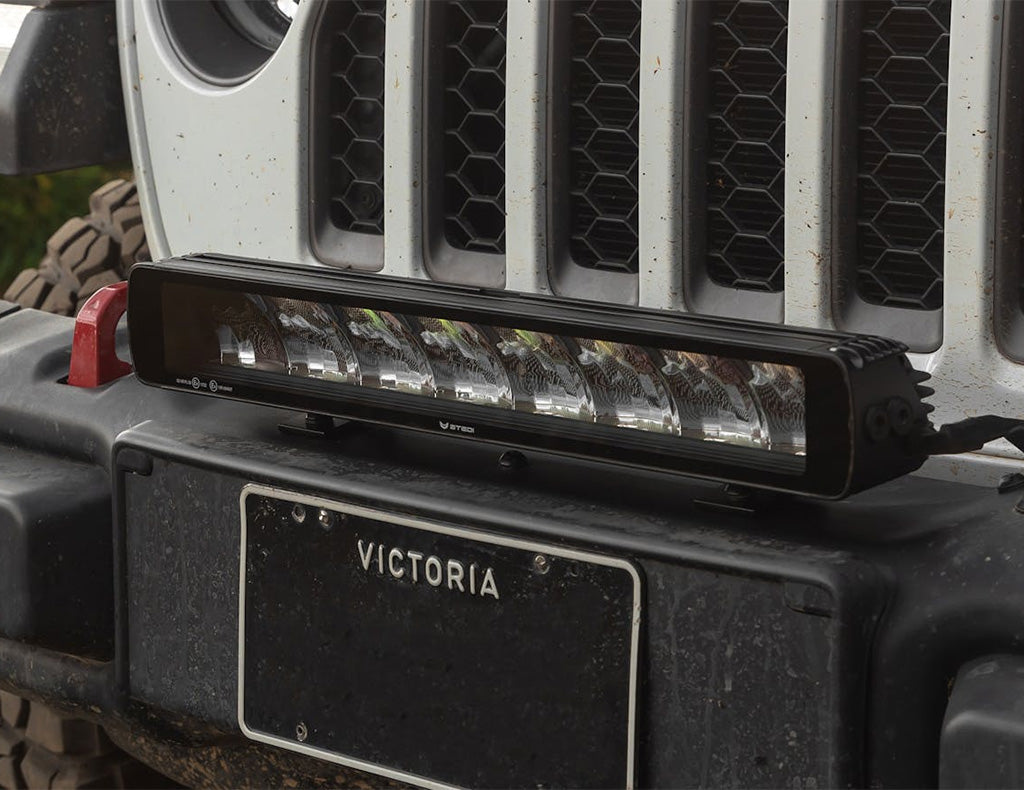

STEDI ST-X 21.5 inch LED Light Bar

STEDI ST-X 21.5 inch LED Light Bar

Details:
If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

- Significantly minimises adverse reflection from road signs
- Controlled vertical spread minimises reflections off of high-mounted road signs.
- 8x 15W LEDs

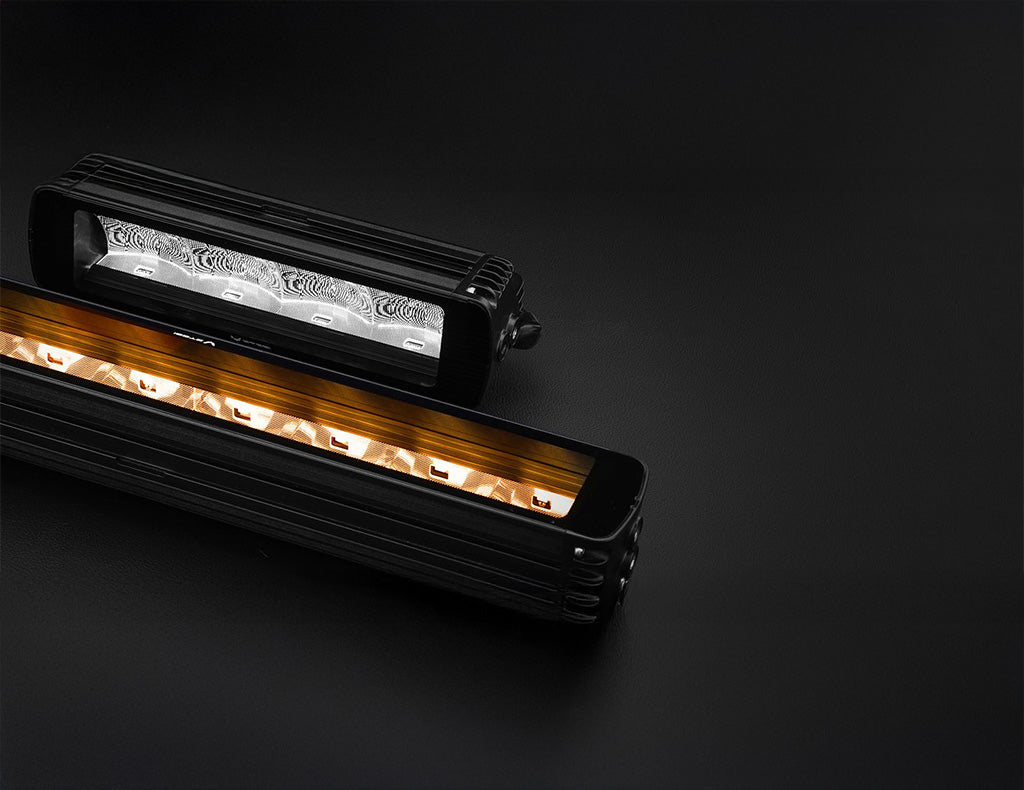

- LED Parking / Position Light Function (Amber or White built-in)
- Breather allows pressure equalisation during rapid heat cycles
- Anodized Polyester Powder Coat
- Includes adjustable side brackets & sliding bottom brackets

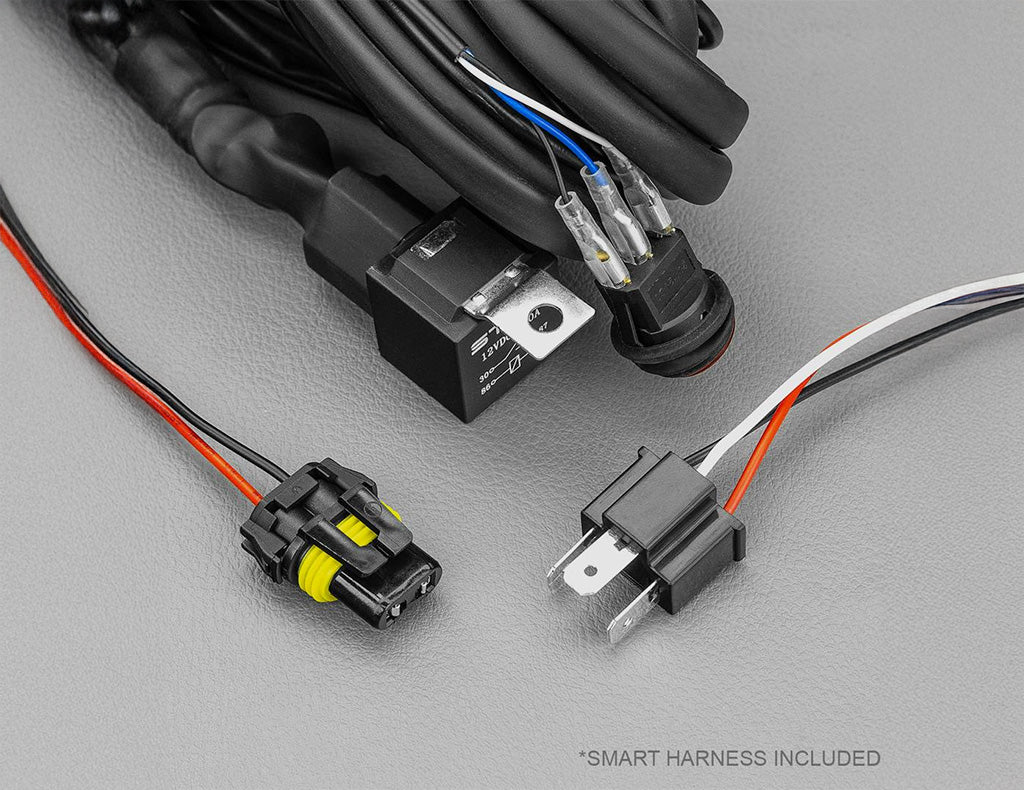

- Includes Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (compatible with negative & positive switched vehicles)
- Protected against reverse polarity
- Shockproof
- UV Shielded
- Protected Against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation (PWM) Thermal Management

- Voltage: 9–36V
- DRL Voltage: 12–24V compatible
- Amperes: 8.5A @ 12V (full power), 3.46A @ 12V (limit power)
- Power: 102W (full power), 41.52W (limit power)
- Lumens: 4010LM (full power), 2310LM (limit power)
- Colour Temperature: 5000K
- Amp Rating: 0.3A

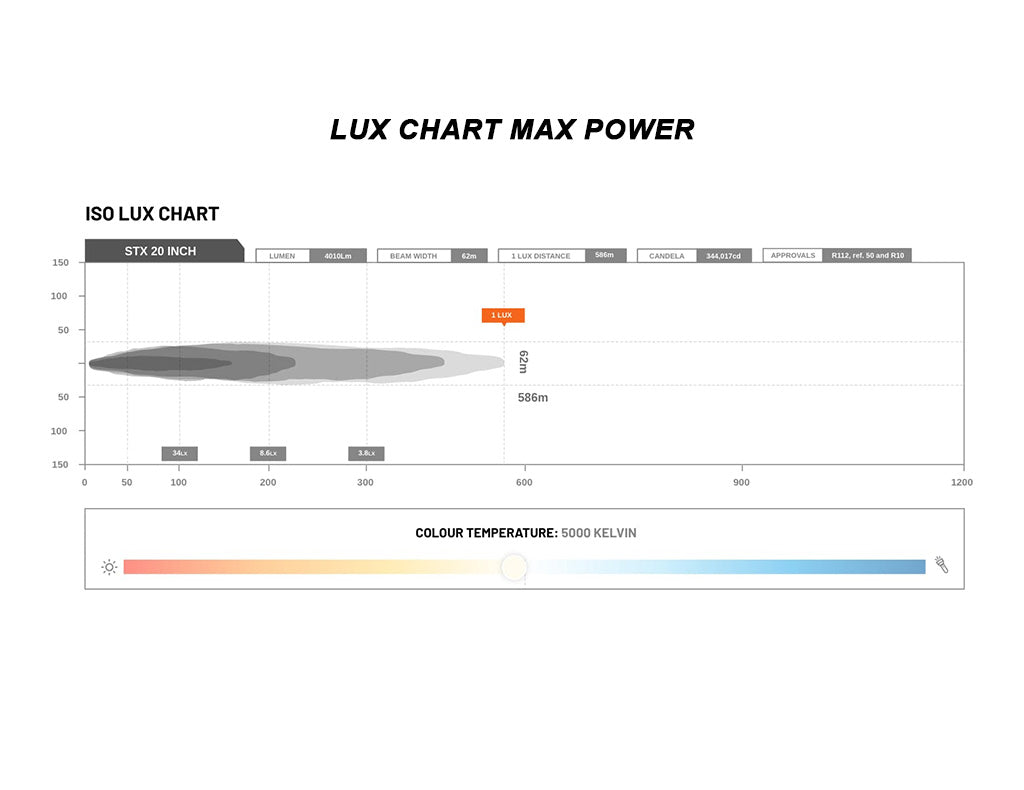

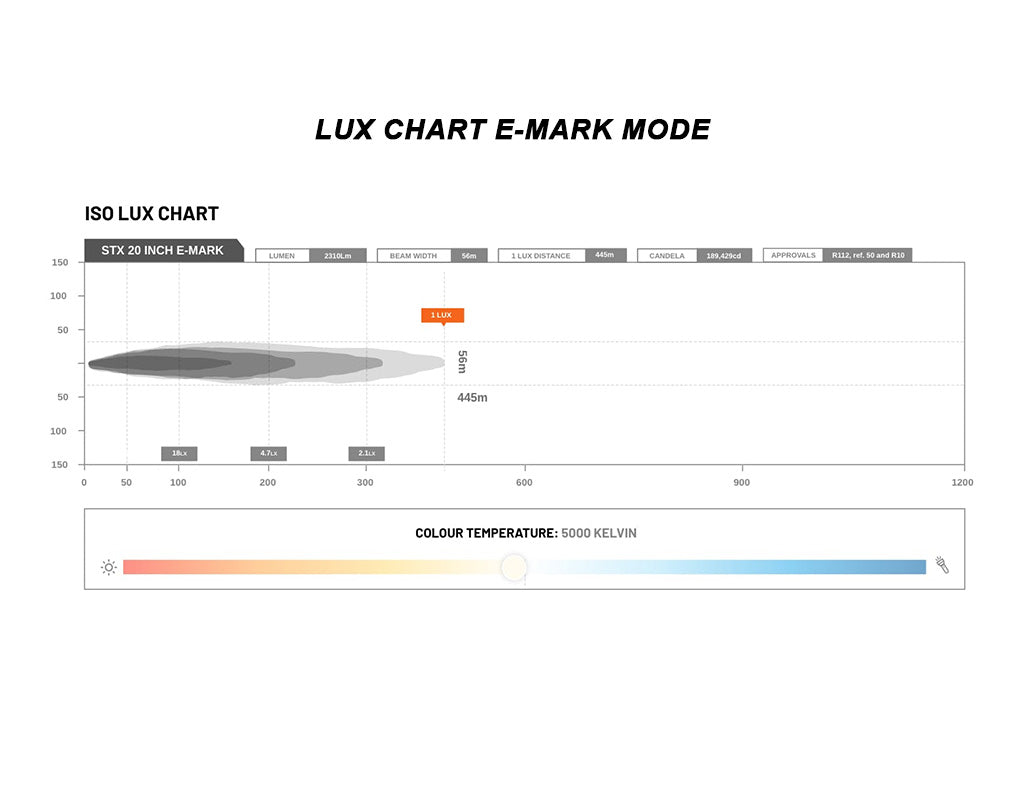

- Photometric Data: 1 lux @ 586m (full power), 1 lux @ 445m (limit power)
- Lens Material: Optical grade, hard-coated LEXAN

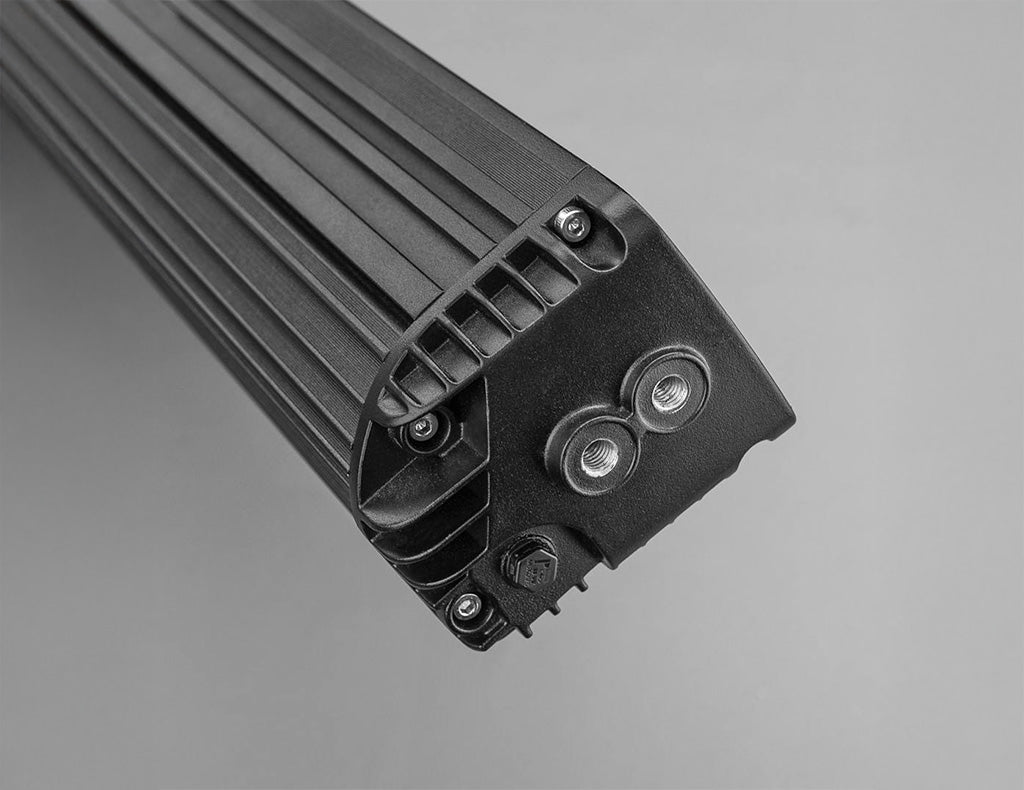

- Housing Material: 6063 extrusion
- Ingress Protection: IP68
- Candelas: 344,017 (full power), 189,429 (limit power)
- Connector: 60cm cable with DTP 4-pin
- Operating Temp: -40°C ~ +60°C
- Certificates: R112 (ref. 50) and R10
- Lifespan: 50,000 hrs (LM80)
- Product Weight: 2.6kg
- Shipping Weight: 3.1kg

1 x 21.5 Inch ST-X-20L LED Light Bar
2 x Steel Side Brackets
4 x Steel Sliding Brackets
2 x Brace Support Brackets
Easy-Fit High Beam Wiring Kit (HB3 & H4 piggy-back included)
Comprehensive 304 Stainless Steel fasteners
Wiring Instructions
