Profender 40mm MG Lift Kit to suit Nissan Navara D23 NP300 2014-Onwards (Leaf Rear)

Profender 40mm MG Lift Kit to suit Nissan Navara D23 NP300 2014-Onwards (Leaf Rear)

Suits Leaf Rear Models Only.

Please use the drop down menu to select the correct spring rates depending on your engine type and vehicles accessories.

Type: Navara
Model: D23 NP300
Year: 2014 -
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 35-40mm Lift
Rear Lift: 45mm Lift
Detail:
- 4x4 Single Cab / Dual Cab / Extra Cab Models
- Monotube Internal Reservoir Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

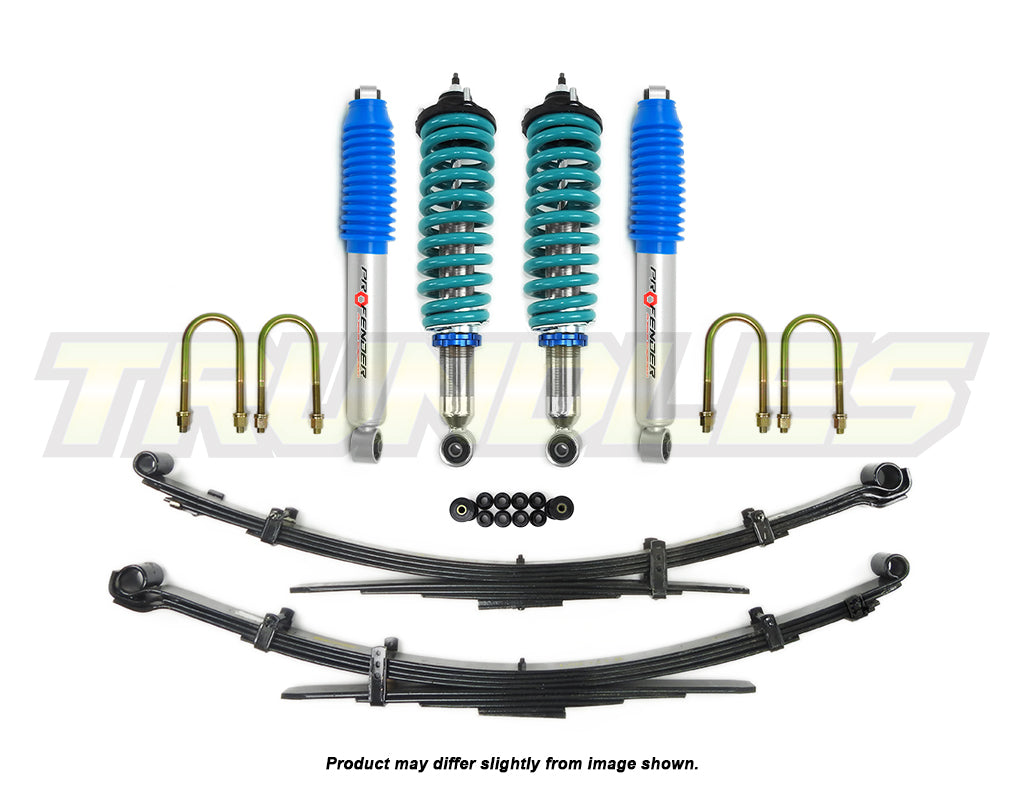

Front
2x Profender Coilover Shocks - MG-56110A50
1x Pair Dobinsons Front Springs
2x Top Hats - TOP7

Rear
2x Profender Gas Rear Shocks - PF-5009P
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB45-1108K
2x Dobinsons U-Bolt Kits - UB59-453-3K

40-75mm (2-3") Lifts with 410-415mm Extended Length shocks will give up to 600mm Hub-To-Guard height and will clear the strut tower without issues in most cases.

We recommend installing Trundles Upper Control Arms for 40mm lifts and higher.

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
