Dobinsons Basic Gas Lift Kit to suit Toyota Hilux N90 2025-Onwards

Name: Dobinsons Basic Gas Lift Kit to suit Toyota Hilux N90 2025-Onwards
Brand: KITHEADER
SKU: N90-B-GAS-1
Price: 1280.0 NZD
Availability: InStock

N90-B-GAS-1

Select your model type:

Single Cab / 4x2 Highrider Models Dual Cab Models

Select your lift amount:

40mm Lift 50mm Lift 15mm Lift

Select your load rating:

0-50Kg 60-100Kg 0-60Kg 70-100Kg

Pre-Order

$1,280.00

$1,280.00 ~~$0.00~~

Tax included. Shipping calculated at checkout.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift or bull bar install, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

DETAILS
COMPONENTS
EXTRAS

DETAILS

Dobinsons Basic Gas Lift Kit to suit Toyota Hilux N90 2025-Onwards

Note:
- Upper Control Arms required for 50mm Lifts and above.
- We strongly recommend you run an adjustable coil over when opting for a 75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.

Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.

Type: Hilux
Model: N90
Year: 2025 -
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 15mm - 50mm Lift
Rear Lift: 25mm Lift
Detail:
- Twin Tube Nitrogen Gas Charged Shock Absorbers
- These front struts are pre-assembled in our workshop and ready to go.

COMPONENTS

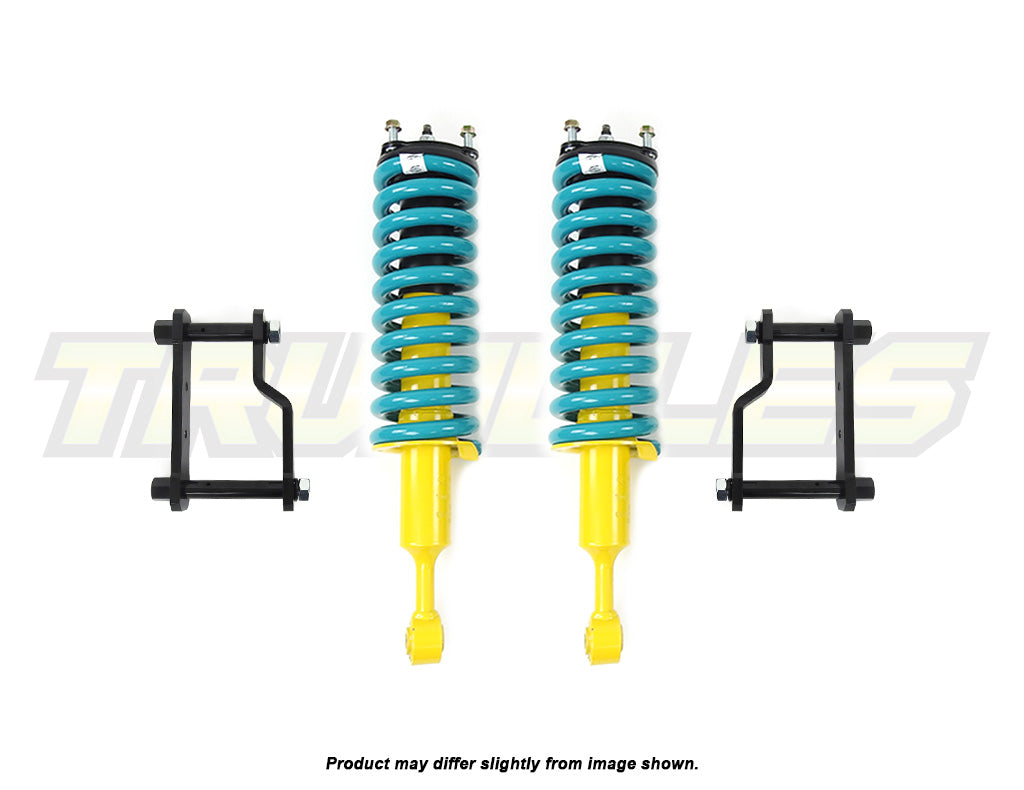

15-40mm Lift

Front:
2x Dobinsons Heavy Duty Front Shocks - GS59-228
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - SC59-029

Rear:
1x Trundles 25mm Lift Extended Shackle Kit - EXTSH-18

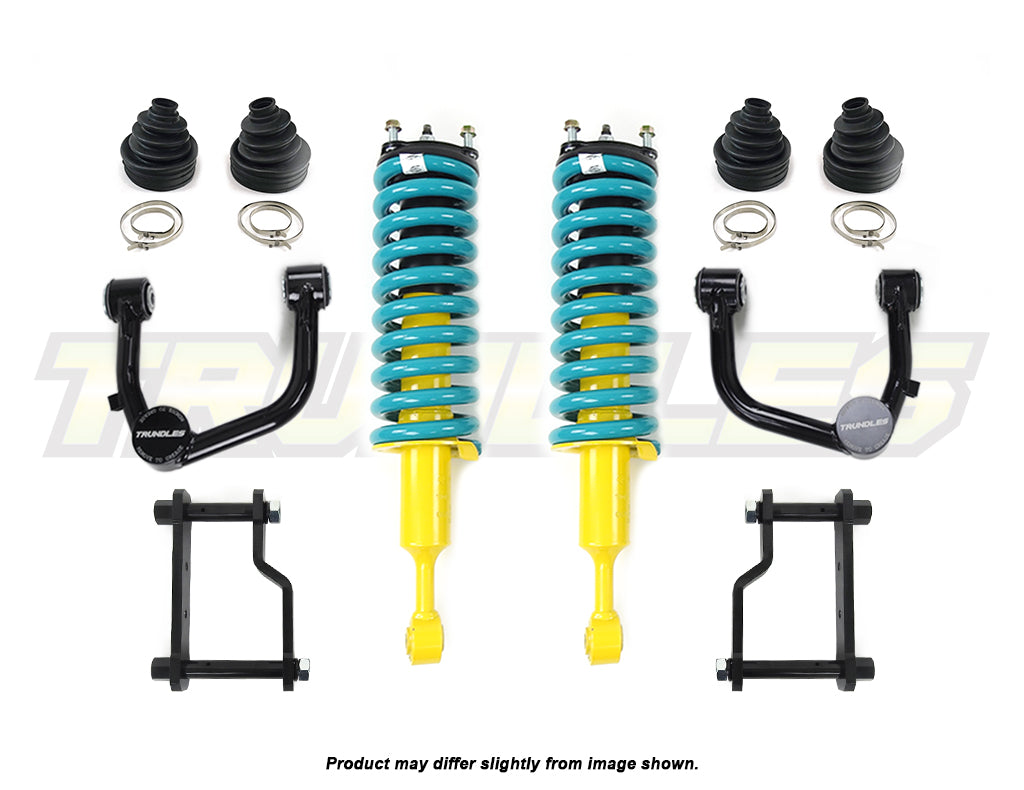

50mm Lift

Front:
2x Dobinsons Heavy Duty Front Shocks - GS59-228
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - SC59-029
1x Pair Trundles Upper Control Arms - UCA3881HV2
1x Dobinsons High Clearance Outer CV Boot Kit - CV59-554K
1x Dobinsons High Clearance Inner CV Boot Kit - CV59-557K

Rear:
1x Trundles 25mm Lift Extended Shackle Kit - EXTSH-18

EXTRAS

Dobinsons Rear Greasable Pins - SP59-060
Dobinsons Arm Style Diff Drop - DD59-645K
Dobinsons Tail Shaft Spacer Kit (can reduce driveline vibration) - WA59-553K
