Please note: This kit is engineered explicitly for the small-frame Garrett GT12 / GT1241Z turbocharger configuration (commonly used in Suzuki Jimny aftermarket turbo kits). It is NOT compatible with larger Garrett GT15 or GT25 series frames. Ensure both the exhaust manifold flange and the turbocharger exhaust inlet are perfectly flat and clear of old material before mating. Copper crush washers are single-use items.
Genuine Garrett GT12 Performance Turbocharger Gasket Kit. Ensure a professional, leak-free installation or service of your small-frame turbo system with this comprehensive, high-temperature sealing package. The TGG266 kit provides all critical interface seals required to couple your Garrett GT12 series turbocharger to the exhaust and oiling system. The exhaust manifold base and dump pipe gaskets are stamped from ultra-durable Single-Layer Stainless Steel (SLS), engineered to withstand extreme thermal cycles and resist pressure blowouts under maximum boost conditions. Accompanying the exhaust seals is a dedicated oil feed/drain combination gasket alongside premium-grade copper crush washers, safeguarding your oil loop against dangerous pressure drop leaks. Whether you are refreshing a custom engine conversion or performing a routine inspection on a turbo-charged Suzuki Jimny build, this kit delivers the specialized industrial endurance your forced-induction setup requires.

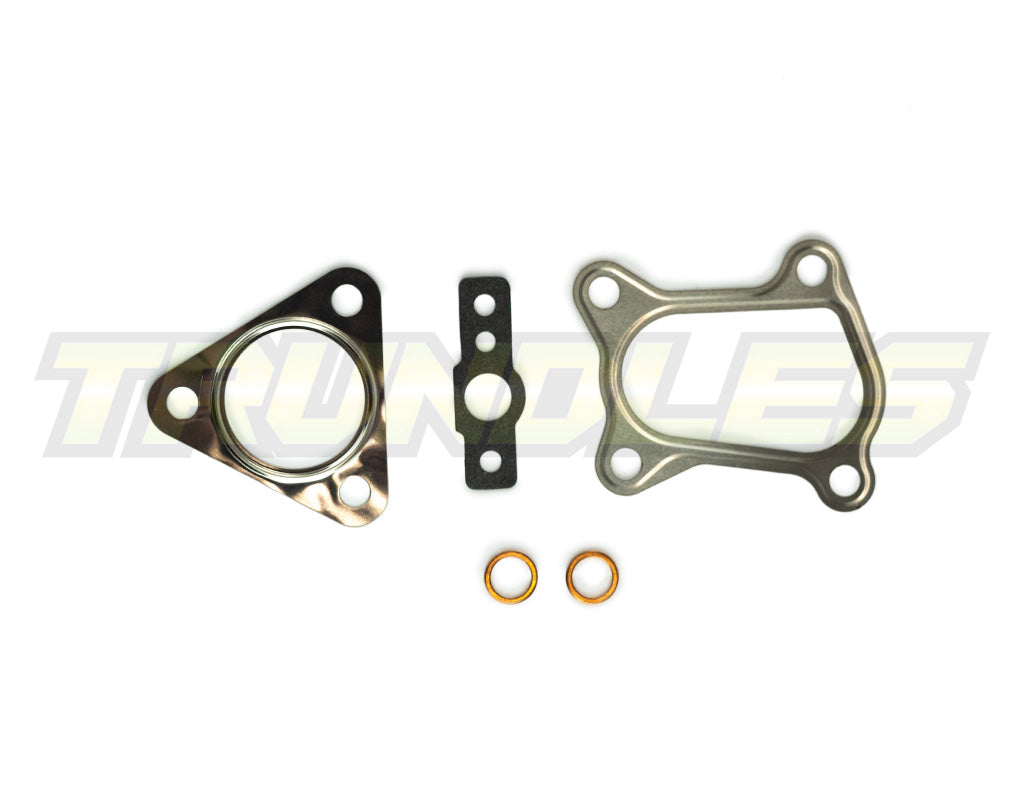

Includes:
1x Single-Layer Stainless Steel Turbine Inlet (Base) Gasket
1x Single-Layer Stainless Steel Turbine Outlet (Dump Pipe) Gasket
1x Integrated Turbo Oil Feed / Return Flange Gasket
2x Annealed Soft Copper Crush Washers
Details:
- Stainless steel exhaust gaskets manage extreme expansion without structural blowout
- Direct-fit application for Garrett GT12, GT1241, and GT1241Z small-frame units
- Complete package saves sourcing individual oil-line crush washers
- Critical accessory for Suzuki Jimny 1.3L/1.5L aftermarket turbo kit installations and rebuilds
Technical Specifications:
- Supplier SKU: TGG266
- Base Gasket Material: Stamped Single-Layer Stainless Steel
- Turbo Family Compatibility: Garrett GT12 Series Only
- Fluid Circuit Accommodations: Dedicated Oil Feed & Drain Circuit Integration
