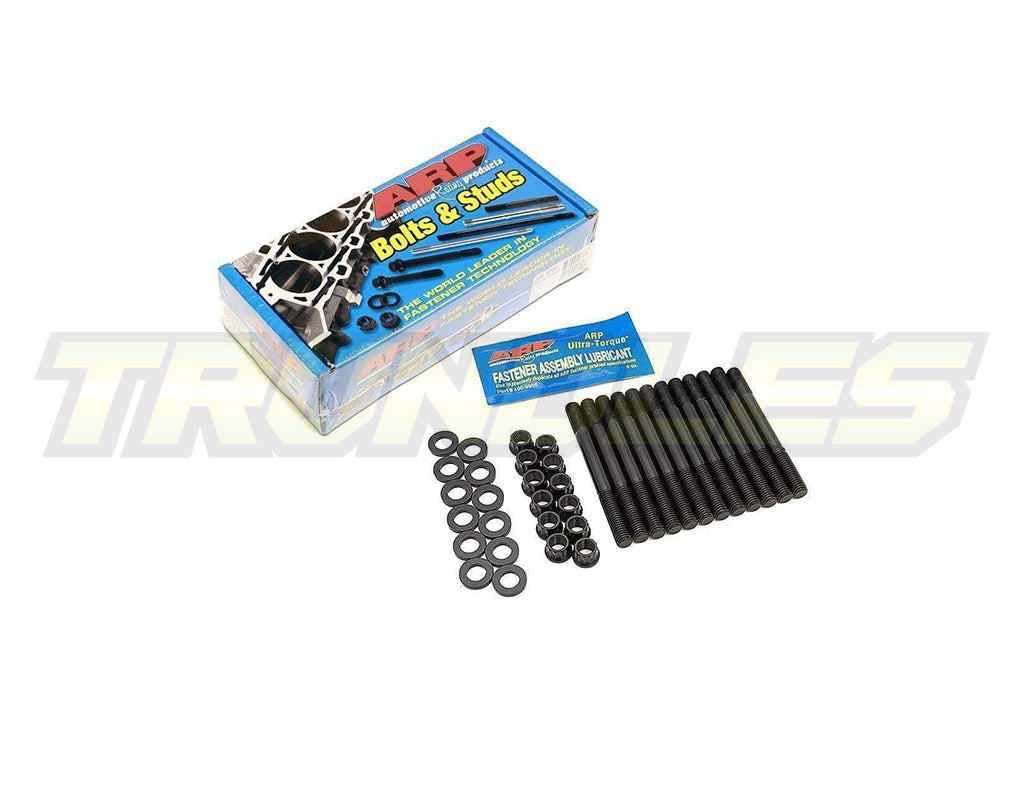

ARP Head Studs to suit Toyota 1HD-FT & 1HD-FTE Engines

ARP Head Studs to suit Toyota 1HD-FT & 1HD-FTE Engines

- Direct Replacement Fit: 11mm ARP Head Stud Kit includes 26 studs and hardware, with no modification needed for head bolt holes in the block or head.

- Increased Clamping Force: Provides 40% greater clamping force than stock torque-to-yield bolts, resulting in improved performance and reliability.

- Even Torque Distribution: Eliminates twisting force during tightening, offering more accurate and evenly distributed torque load, reducing the risk of head gasket failure.

- Enhanced Clamping Force: Stock TTY head bolts provide around 11,000lbs of force, while ARP studs average 15,785lbs of force for improved clamping.

- Installation Instructions Included: Comes with detailed instructions; ARP Ultra Torque lubricant should be used under the nut and washer when torquing.

6x 90910-02096 No. 1 Bolts
20x 90910-02119 No. 2 Bolts

- Make sure the head bolt holes are properly cleaned out, and that you use the supplied ARP Ultra Torque lubricant under the nut and washer while torquing in to place.
