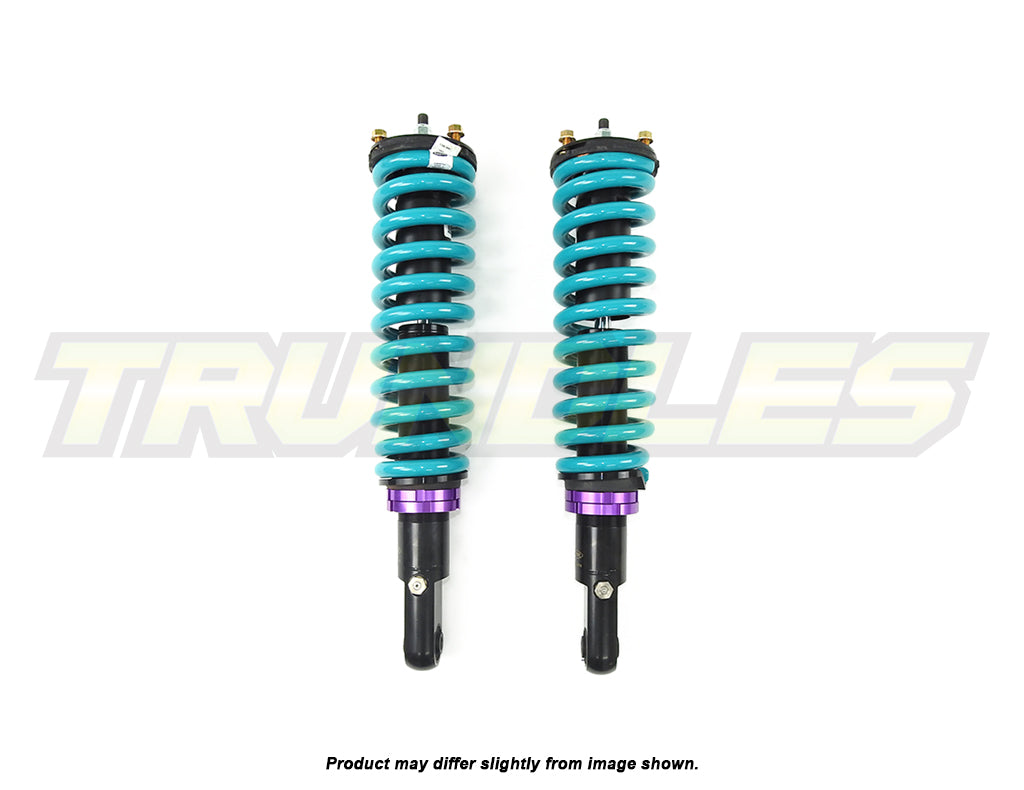

Dobinsons Pre-Assembled IMS Height Adjustable Front Lift to suit Mazda BT-50 Series II 2011-2020

Dobinsons Pre-Assembled IMS Height Adjustable Front Lift to suit Mazda BT-50 Series II 2011-2020

- A 100mm Lift is achievable with extra components. A 100mm Lift will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, it is up to the customer to set these any higher than a 75mm Lift.

Looking for a quick and easy lift for your BT-50? We have the answer!

Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.

Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.

Type: BT-50
Model: UP/UR
Year: 10/2011 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 35mm - 75mm Lift
Detail:
- Monotube Internal Reservoir Shock Absorbers
- These front struts are pre-assembled in our workshop and ready to go.

2x Dobinsons IMS Shocks - IMS19-50092
1x Pair Dobinsons Front Coil Springs
2x Trundles Strut Top Mounts - TOP3

For a lower replacement bush to fit IMS19-50092, please click here

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.
