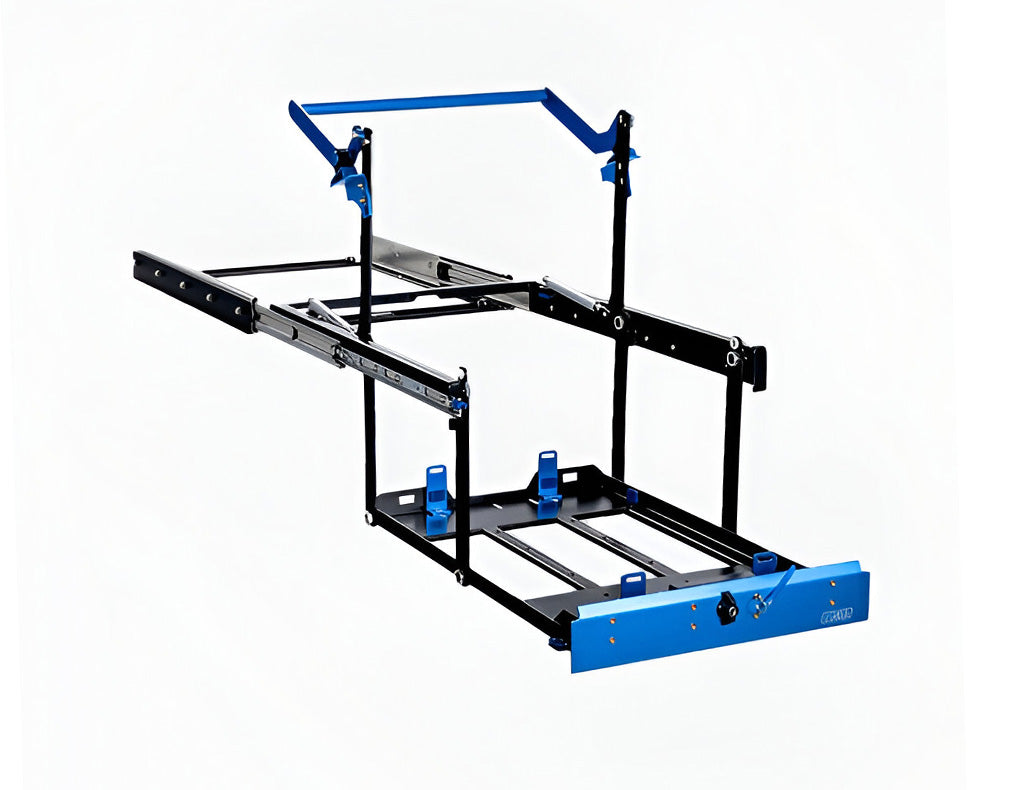

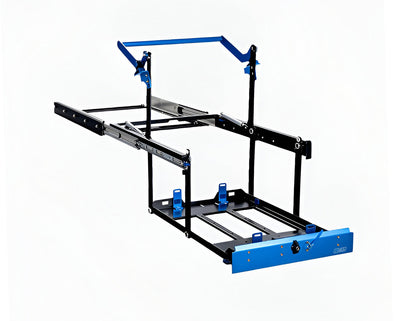

MSA DS50 Drop Slide

MSA DS50 Drop Slide

Includes:
1x Drop Slide Kit
- All fixing and tie-down straps

Details:
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Powder-coated steel frame construction
- Stainless steel and blue anodised aluminium fittings
- Travel lock and key
- Anodised blue faceplate
- MSA 4X4 Fridge Barrier is available for this model
- MSA 4X4’s Lifetime Guarantee
- For all MSA fitting guides and resources click here - select the drop slides tab to view the relevant resources

LIGHTER...STRONGER...SAFER...SMARTER
The patented Drop Slide™ is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

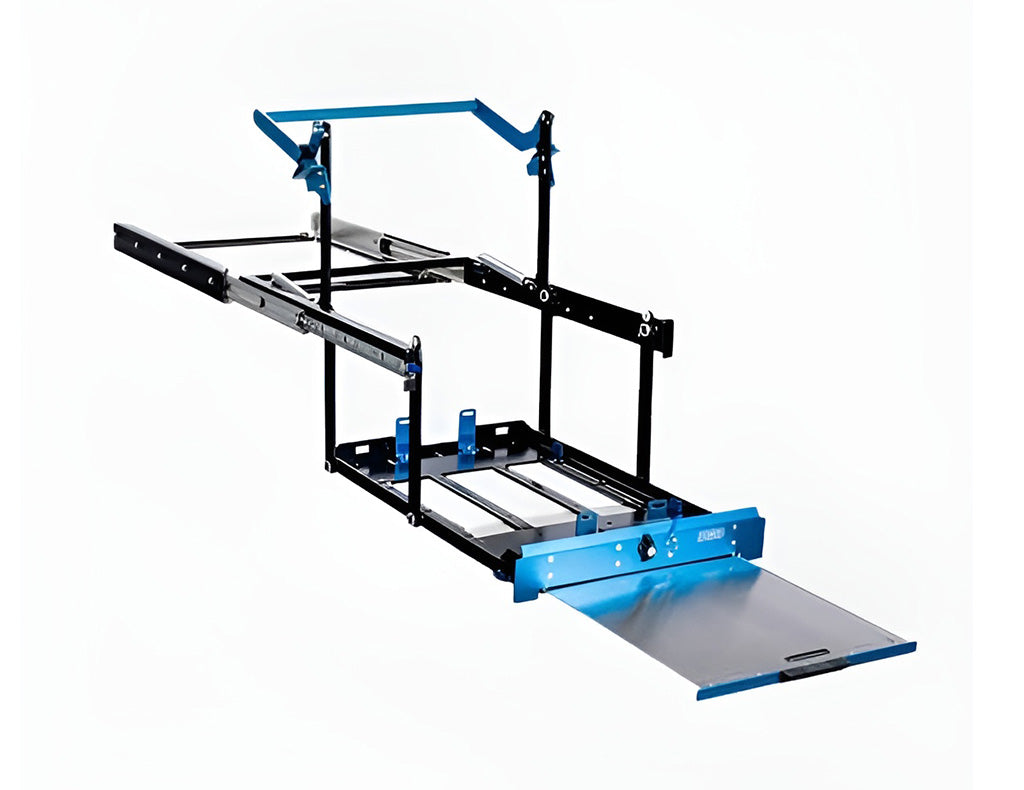

Using the slimline handle, the Drop Slide™ lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle.

The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide™ is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Australian Patent Number: 2009245888
South African Patent Number: 2010/03634
United States Patent Number: 12/734257
PCT International Patent Number: PCT/AU2008/001555

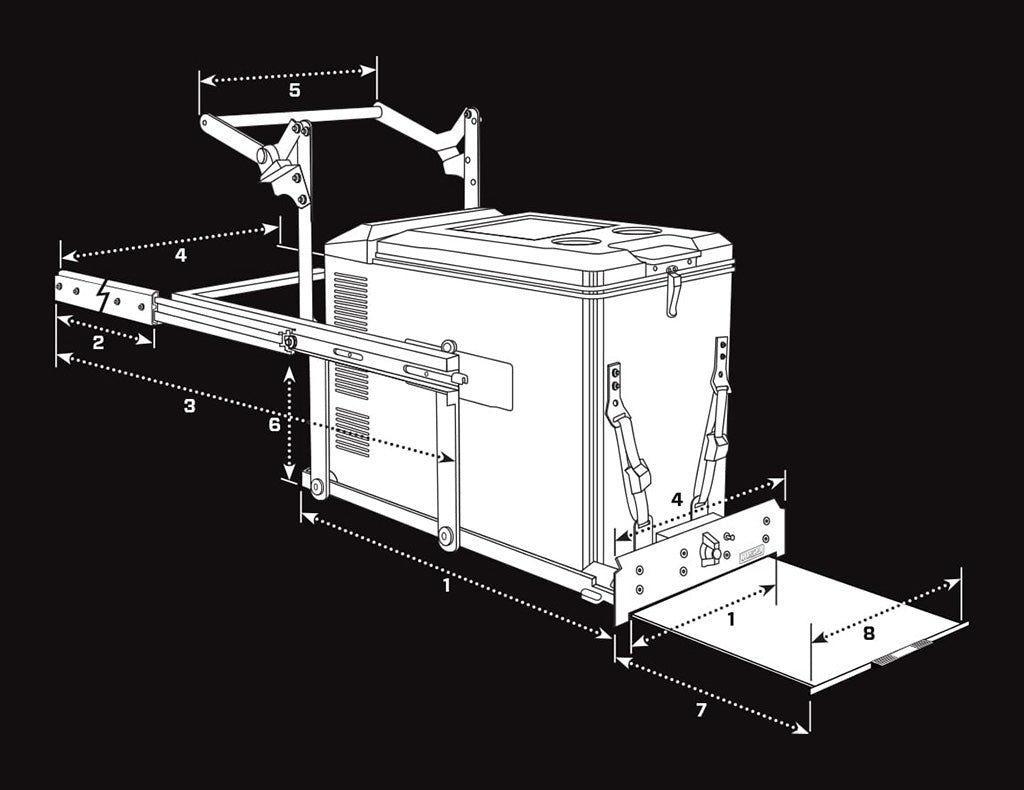

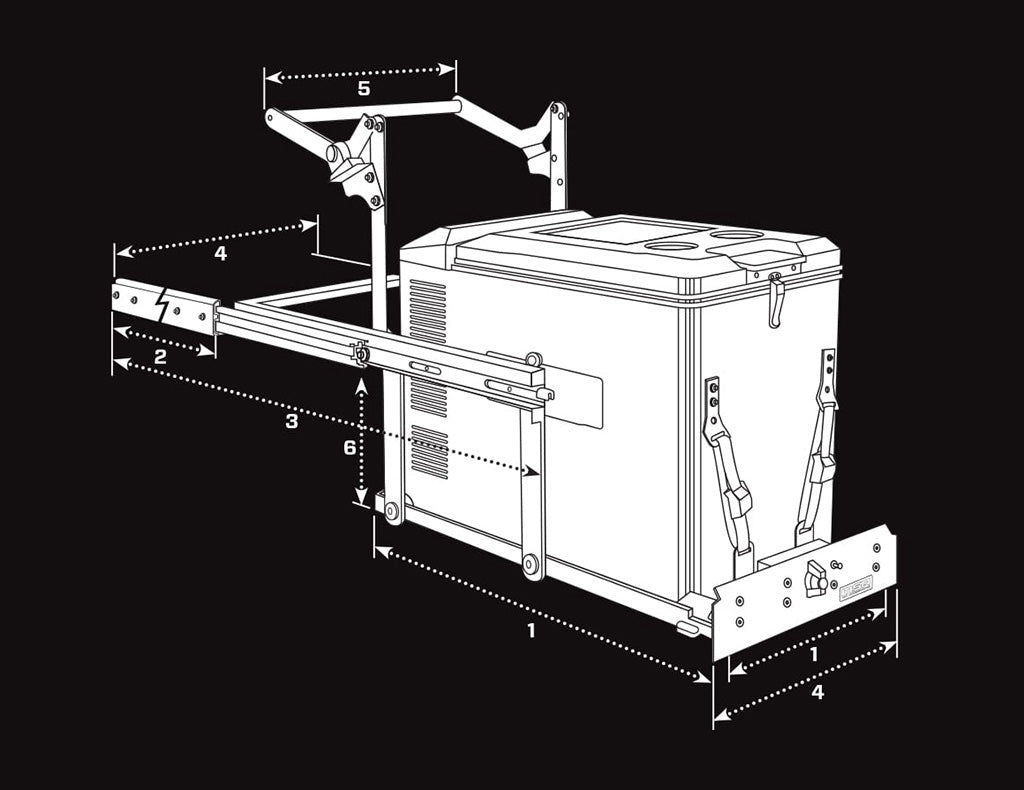

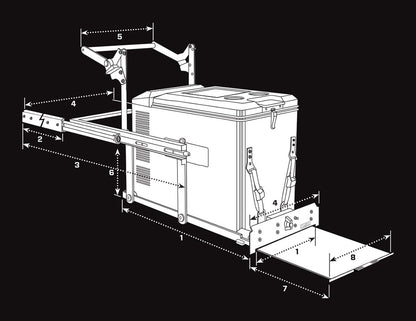

Code: DS50
Weight: 35kg
Fridge Tray: 810×480
Slide Length Closed: 880+20
Slide Length Open: 1860+20
Overall Width: 590+20
Handle Width: 535
Drop: 300
Mount to Base: 35
Max Set Back: 120
Gas Strut: 800N
Freight Dimensions: 860×690×170
Freight Weight: 38kg
(all measurements displayed are in mm)
