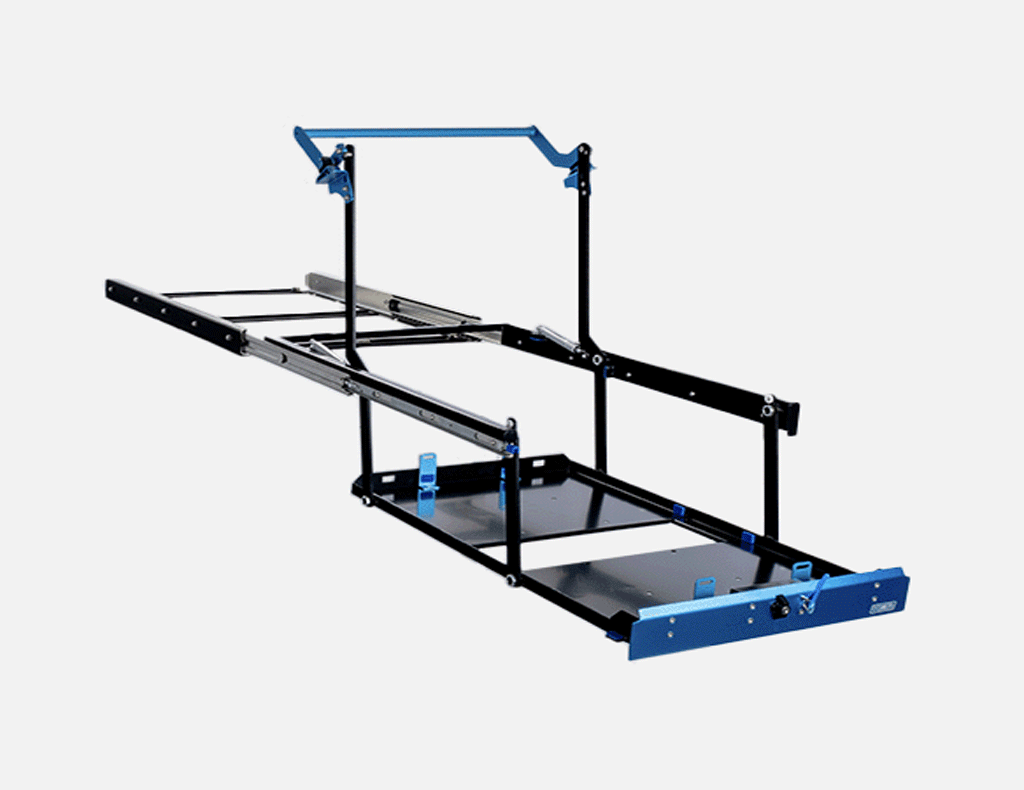

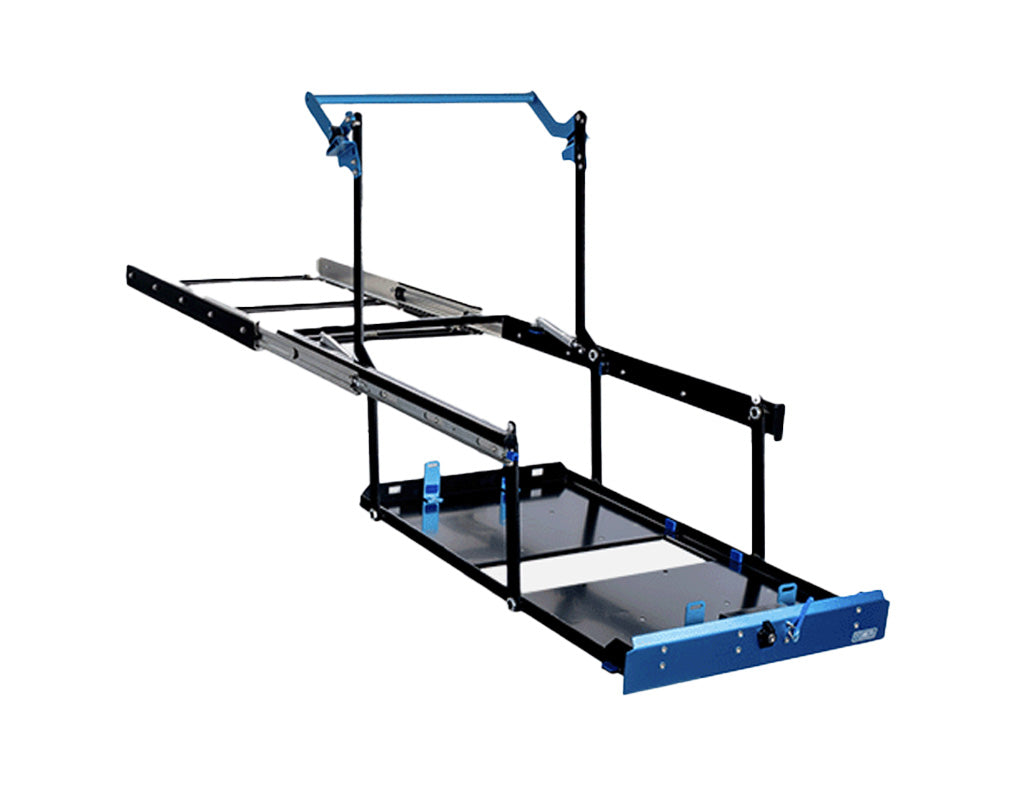

MSA DS95 Drop Slide

MSA DS95 Drop Slide

Includes:
1x Drop Slide Kit
- All fixing and tie-down straps

Details:
- MSA 4X4 Fridge Barrier is available for this model
- Compact size
- Suits all vehicles
- Easy install
- Lock-in and lock-out safety system
- Powder-coated steel frame construction
- Stainless steel and blue anodised aluminium fittings
- Travel lock and key
- Anodised blue faceplate
- MSA 4X4’s Lifetime Guarantee

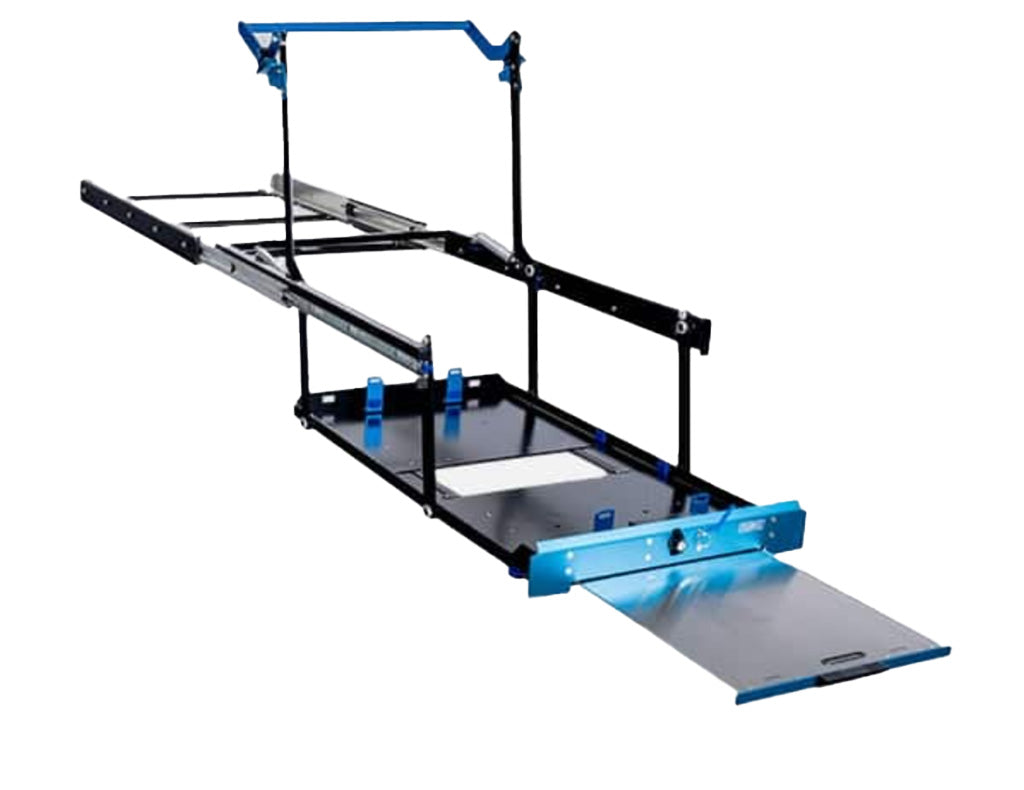

- Optional slide-out 316 stainless steel table
- For all MSA fitting guides and resources click here - select the drop slides tab to view the relevant resources

LIGHTER...STRONGER...SAFER...SMARTER

The patented Drop Slide™ is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

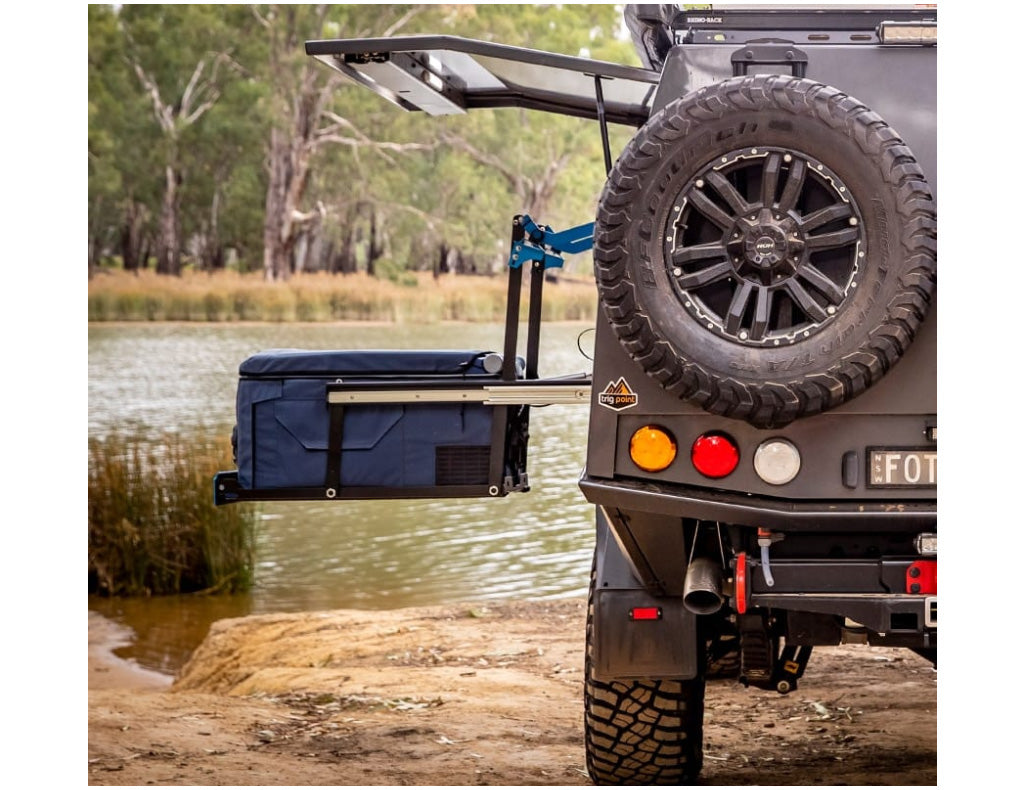

Using the slimline handle, the Drop Slide™ lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle.

The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide™ is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

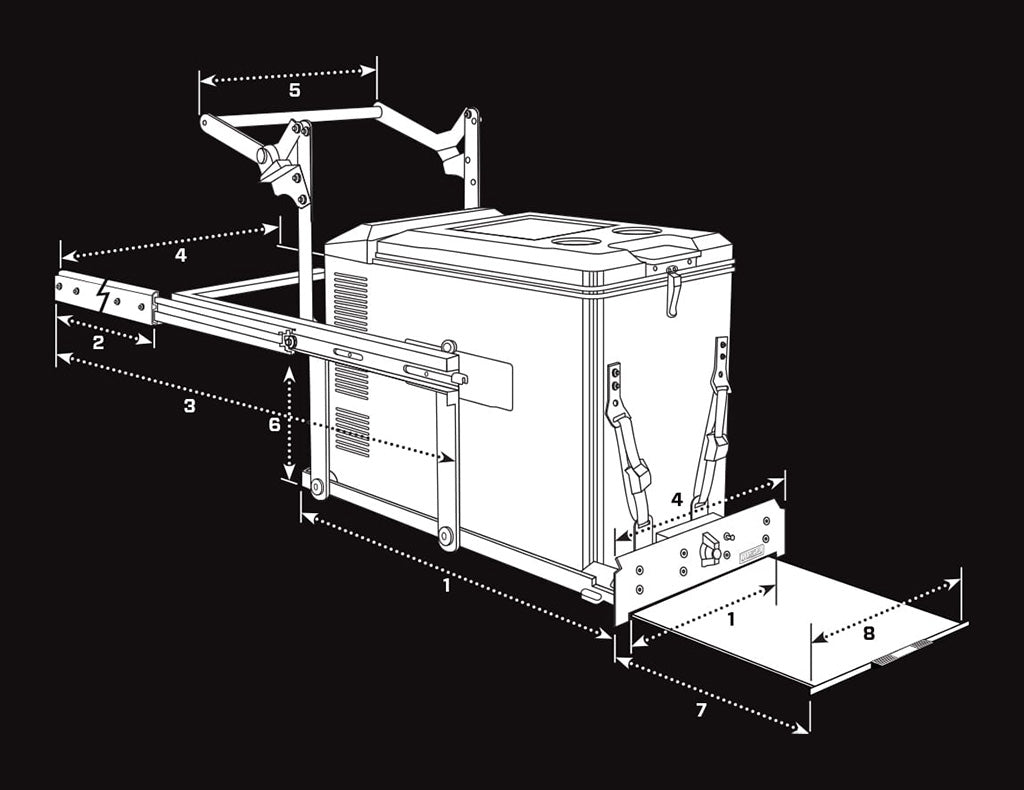

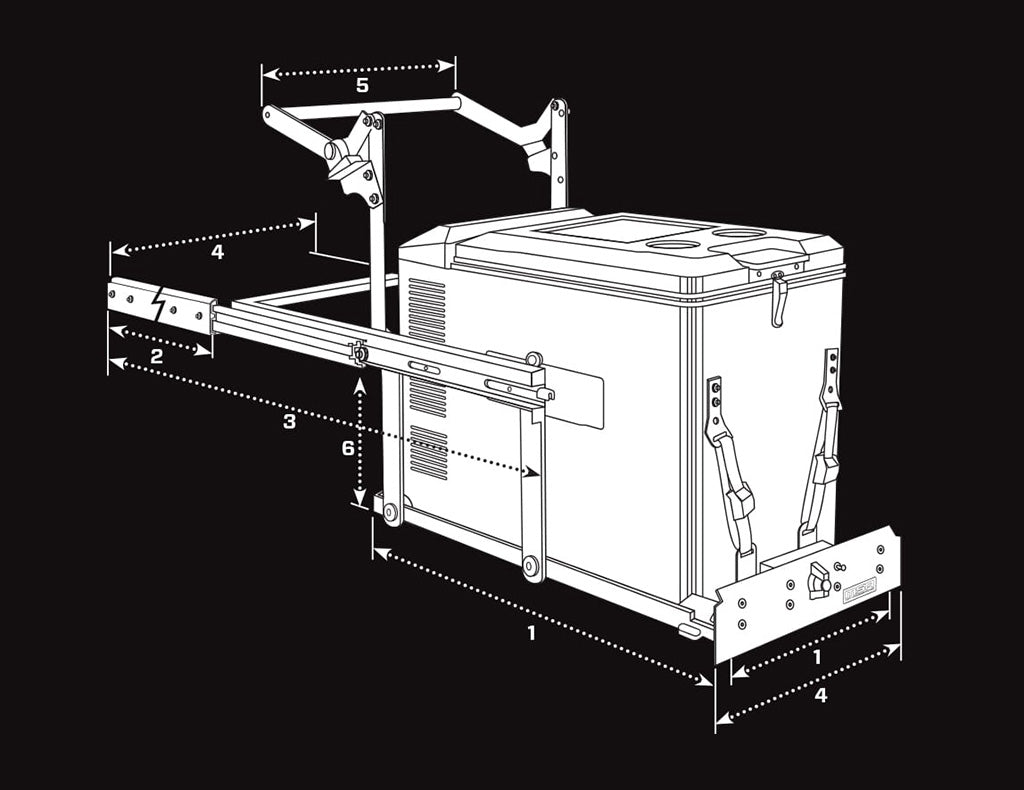

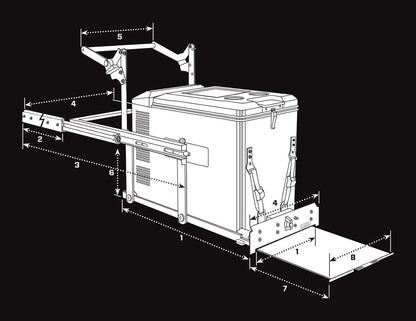

Code: DS95
Weight: 42kg
Fridge Tray: 955×560
Slide Length Closed: 1020+20
Slide Length Open: 2170+20
Overall Width: 670+20
Handle Width: 610
Drop: 300
Mount to Base: 35
Max Set Back: 150
Gas Strut: 1000N Slow
Freight Dimensions: 860×690×170
Freight Weight: 48kg
(all measurements displayed are in mm)
