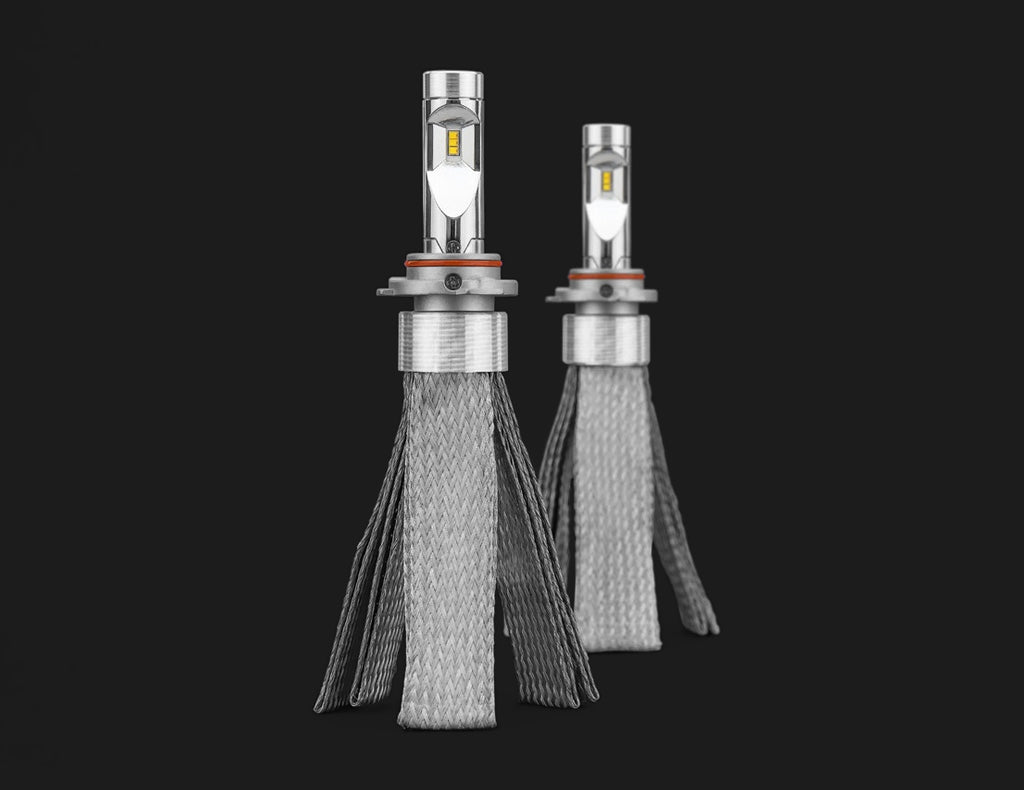

STEDI HB3 (9005) Copper Head LED Bulbs (Pair)
Note 1: Due to the difference in Road ruling between Australia and New Zealand these are designed for off-road use only and are not compliant on NZ roads.
Note 2: CLICK HERE TO DOUBLE CHECK THESE ARE COMPATIBLE WITH YOUR VEHICLE.
Includes:
2x HB3 (9005) STEDI Copper Head Headlight LED Conversion Headlights
2x Driver Modules
3M Double Sided Tape
Zip Ties
User Instruction Manual
Details:
- Six 100% Pure Copper(Cu) belts allow maximum thermal conductivity. The thermoelectrically separated copper substrates allow heat to transfer to the substrate efficiently and quickly.
- American made Down Corning® thermal paste to increase conductivity to 6063 aluminium tower.
- No fan means modern vehicles which have rigid dust covers or fully enclosed headlights bulbs can upgrade to LED without modifying the dust cap or worse leaving them off altogether.
- Smaller driver footprint for tight applications.
- Near identical footprint to standard halogen bulb ensure 100 compatibilities.
- Top Bin Philips© Lumileds Luxeon ZES® LED | We’ve independently verified the authenticity of the Philips© Lumileds used. The undomed nature of the ZES® provides better optical control with minimal scatter.
- CCT 5700K means colours sync with our auxiliary LED driving lights.
- OEM matching light distribution through the exact positioning of the LED emitters to optimize the vehicle's reflector design as the OEM intended.
- Instant Full Beam without any warm-up time.
- CANBUS Friendly - resistive Canbus cancellation built-in
- Unlike other platforms on the market, our Copper Heads LED Kit will not discolour or tarnish your vehicle's headlamp reflector or lenses.
- Electrically Protected again RFI and EM Interference
- Over and Under Voltage Protection
- Waterproof connectors
- Plug and Play HB3 Connector | No cutting or professional installation required, as easy as changing the OEM bulb
- Ingress Protection IP65 means our kits will not fail at the first sign of water.
- True White 5700Kelvin
TECH SPECS
| HOUSING MATERIAL |
6063 Aviation Aluminium |
| LED CHIP TYPE |
6 x Philip™ ZES (Each Lamp) |
| POWER |
1.6A each @ 13.6v |
| RAW LUMENS |
3,450Lm each globe (RAW)
1,760Lm each globe (Actual)
|
| COMPATIBLE VOLTAGE |
DC 12v and 24v |
| LUMEN MAINTENANCE |
50,000 hours |
| LIFE EXPECTANCY |
5,000 hours (9 x longer than halogen) |
| CANBUS |
Built-in |
| SOCKET TYPE |
HB3 (9005) |
| INGRESS PROTECTION |
IP65 |
| OPERATING TEMP |
-40°c to + 80°c |
