Trundles Heavy Duty Green Tow Point (Pair) to suit Isuzu D-Max 2012-2020

Trundles Heavy Duty Green Tow Point (Pair) to suit Isuzu D-Max 2012-2020

Important notes can be found in the IMPORTANT tab! Please read thoroughly before making your order.

- Made from 10mm Plate Steel
- Using SS41 carbon steel plate (Q235)
- Direct bolt on to your chassis
- No cutting or welding required
- Sold as a pair
- Option of using a Bridle strap
- Powdercoated Green for High visibility
- Destruction tested to over 100.4kN (10.23 ton force) EACH
- Each component will be rated to a WLL (Working Load Limit) of 3250kgs
- Only to be used with a shackle rated to maximum 3.25t.
- Instructions

Fits the following Bullbars:
ARB, ARB Summit Bar, ECB, Ironman, Factory Bumper, Factory Nudge Bar (See more Information), TJM - With Modifications, Opposite Lock, Genuine Bullbar

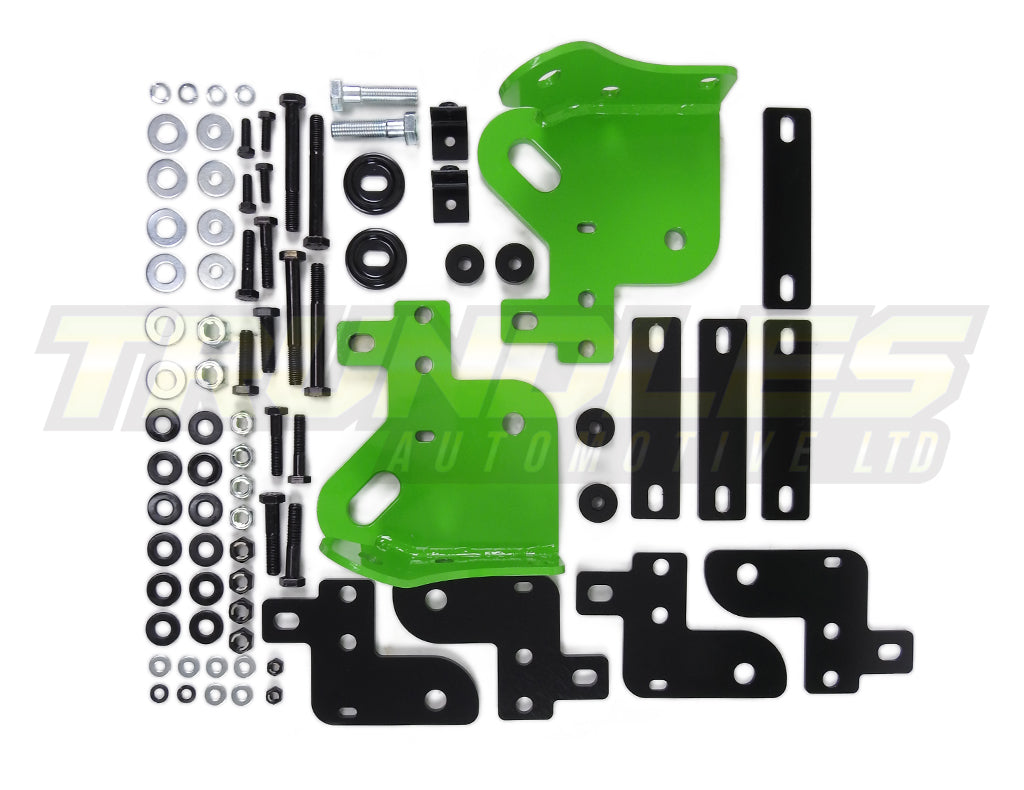

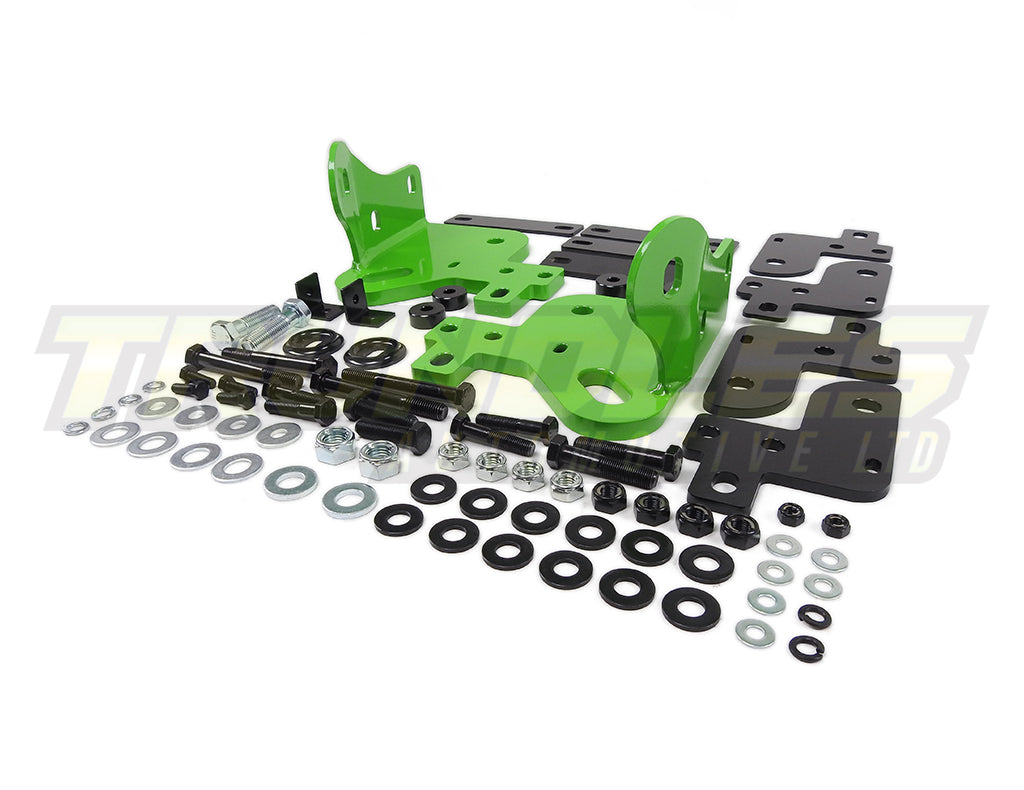

1x Pair of Heavy Duty Tow Points - RP-COL02V2

- No cutting of factory bumper required.
- Does not suit post 2017 facelift models at this stage.
- ARB Summit Bar requires 2 longer than what's supplied with the RP-COL02 - refer to imagery
- Ironman requires modification - Cut the lower return off from the Bull bar mount Drill new 12mm hole between 2 vertical holes Manufacture new tab to mount protection plates The current points can be modified to fit, however if modified they will not be covered by the rating applied. The new design will be tested with these modifications.
- TJM - Modifications required, trim bull bar gussets back 20mm to allow fitment of tow point flush against chassis.
- Factory Nudge Bar fitting requires removal of nudge bar, install RP-COL02V2 per instructions, and refit nudge bar.
